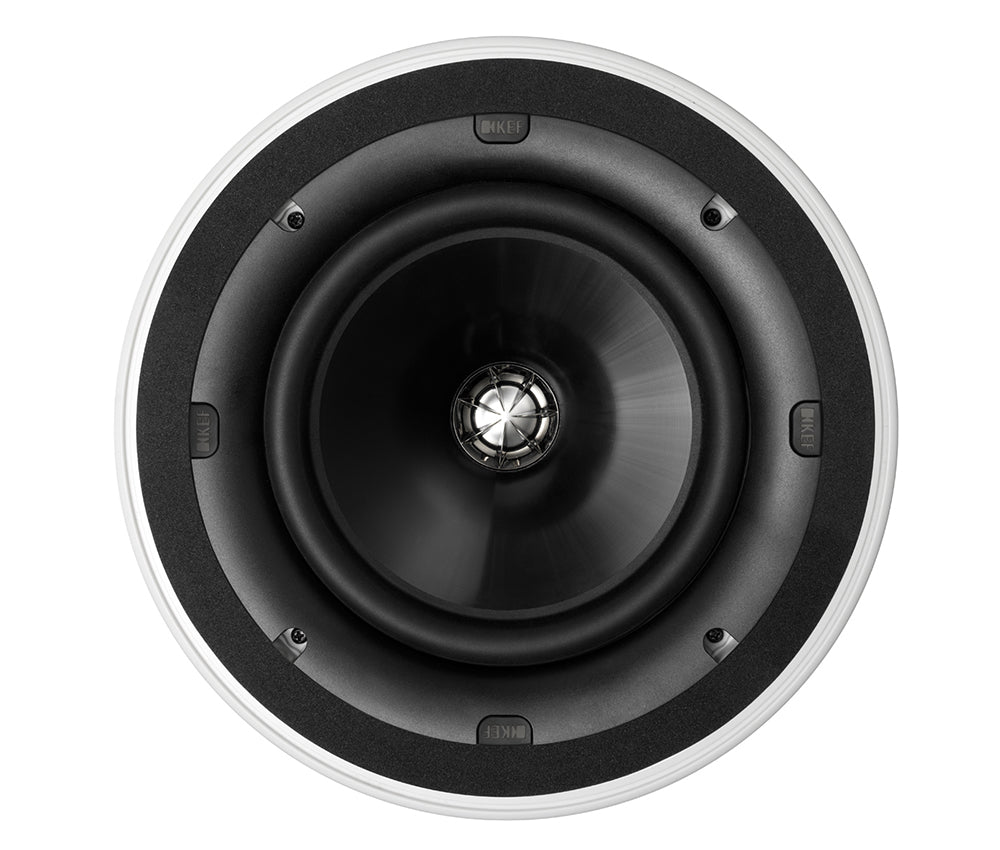

KEF Ci200QR 8 Inch Uni-Q In-Ceiling Speaker

Premium 8-Inch KEF Sound With Wide Coverage

The KEF Ci200QR is a passive 8" round in-ceiling speaker sold individually for stereo listening, whole-home audio, TV sound, media rooms, and larger spaces where stronger low-frequency capability and wide sound dispersion are important.

Its Uni-Q driver array places the 1" aluminum tweeter at the acoustic center of the 8" woofer, helping the speaker behave more like a single point source and distribute sound broadly across the room.

Key Specifications

• Sold as: One speaker
• Speaker type: Passive in-ceiling architectural speaker
• LF driver: 200 mm (8") Uni-Q
• HF driver: 25 mm (1") aluminum dome tweeter with Tangerine Waveguide
• Nominal impedance: 8 Ω
• Sensitivity: 90 dB (2.83 V / 1 m)
• Frequency response: 35 Hz–34 kHz (±6 dB, open-backed)
• Frequency range: 32 Hz–30 kHz (-10 dB)
• Crossover frequency: 2.2 kHz
• Recommended amplifier power: 10–150 W
• Recommended high-pass filter: 40 Hz
• Nominal coverage: 115°
• Maximum SPL: 107 dB
• Certification: IP64

Who Should Choose the Ci200QR?

Choose the Ci200QR when you want a larger architectural speaker with deeper published bass extension, higher amplifier capability, and strong output while keeping the speaker visually discreet in the ceiling.

It works well for living rooms, open-plan spaces, stereo music systems, distributed audio, TV listening, and surround applications. For conventional stereo playback, order two speakers.

Passive Speaker and Amplifier Requirements

The Ci200QR is completely passive and requires an external amplifier or AV receiver. It does not include Bluetooth, Wi-Fi, streaming, app control, or a built-in amplifier.

KEF recommends 10–150 W of amplifier power and specifies an 8-ohm nominal impedance. Connect it to a compatible amplifier or AV receiver using appropriate in-wall rated speaker wire.

The 10–150 W specification is KEF's recommended amplifier range, not an RMS or peak power-handling rating.

Uni-Q With 115-Degree Coverage

The Ci200QR combines an 8" Uni-Q driver with a 1" aluminum tweeter positioned at its acoustic center. KEF's Tangerine Waveguide helps control high-frequency dispersion.

KEF specifies approximately 115° nominal coverage, helping provide broad sound across the listening area while reducing dependence on a narrow sweet spot.

Frequency Response and Bass Performance

KEF specifies an open-backed frequency response of 35 Hz–34 kHz at ±6 dB and a broader 32 Hz–30 kHz range at -10 dB. KEF recommends a 40 Hz high-pass filter.

The 8" driver provides stronger low-frequency capability than many smaller architectural models. A subwoofer can still be added when deeper or more controlled bass is required for home theater or higher-output systems.

Installation Dimensions

• External diameter: 289.6 mm (11.4")
• Overall depth: 109.8 mm (4.32")
• Cutout diameter: 240 mm (9.45")
• Mounting depth: 103.3 mm (4.07")
• Supported mounting thickness: 6–37 mm (0.24–1.46")
• Net weight: 2.4 kg (5.28 lb)

Confirm joist locations, wiring, plumbing, HVAC, insulation, and available ceiling depth before cutting the installation opening.

Optional Rough-In Frame and Rear Enclosure

KEF lists the RIF200R rough-in frame and RNC200R rear enclosure as optional accessories for the Ci200QR. Both are sold separately.

KEF specifies approximately 60 liters as the ideal rear volume and 35 liters as the minimum rear volume.

IP64 Environmental Protection

The Ci200QR is IP64 certified and uses weather-resistant components with UV-protected finishes.

IP64 provides protection against dust and splashing water but does not make the speaker waterproof or suitable for immersion.

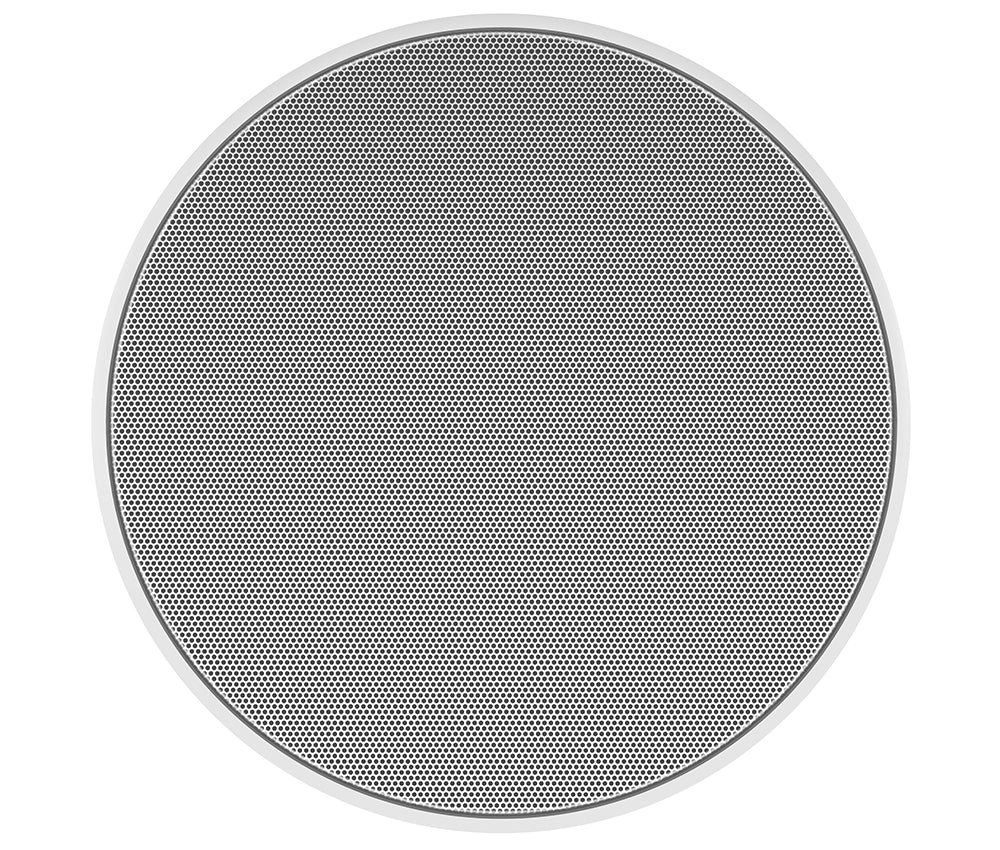

Ultra-Thin Bezel and Paintable Grille

KEF's Ultra-Thin Bezel design keeps the visible edge narrow for a clean ceiling appearance. The magnetic grille can be painted to better match the surrounding finish.

What's Included?

• 1 KEF Ci200QR in-ceiling speaker
• Paintable magnetic grille
• Integrated mounting system
• Product documentation

The amplifier or AV receiver, speaker wire, RIF200R rough-in frame, RNC200R rear enclosure, and other installation materials are sold separately.

Complete Your Audio System

• In-Wall & In-Ceiling Speakers
• Amplifiers
• Speaker Wire

Need Help Planning Your Speaker Layout?

Send Bear Security Shop your room dimensions, ceiling height, amplifier model, and planned speaker quantity. We can help confirm coverage, amplifier compatibility, cutout requirements, and whether the Ci200QR is the right fit.

Is the KEF Ci200QR sold individually or as a pair?

It is sold individually. KEF USA currently lists the Ci200QR per each. For conventional stereo playback, order two speakers.

Is the Ci200QR powered or passive?

It is passive and requires an external amplifier or AV receiver plus speaker wire.

What amplifier power does KEF recommend?

KEF recommends 10–150 W of amplifier power. This is an amplifier recommendation, not an RMS or peak power-handling rating.

What is the impedance?

The Ci200QR has an 8-ohm nominal impedance.

What is the frequency response?

KEF specifies 35 Hz–34 kHz at ±6 dB open-backed and a 32 Hz–30 kHz range at -10 dB.

How wide is the coverage?

KEF specifies approximately 115° nominal coverage.

What high-pass filter does KEF recommend?

KEF recommends a 40 Hz high-pass filter.

What cutout size is required?

The Ci200QR requires a 240 mm, or approximately 9.45", round cutout.

How much mounting depth is required?

KEF specifies approximately 103.3 mm, or 4.07", of mounting depth.

Is the Ci200QR weather resistant?

Yes. It is IP64 certified. This provides protection against dust and splashing water but does not make the speaker waterproof.

Is a rough-in frame available?

Yes. KEF lists the RIF200R rough-in frame as an optional accessory. It is sold separately.

Is a rear enclosure available?

Yes. KEF lists the RNC200R rear enclosure as an optional accessory. It is sold separately.

What rear volume does KEF recommend?

KEF specifies approximately 60 liters as ideal rear volume and 35 liters as the minimum.

What should I confirm before ordering?

Confirm speaker quantity, 8-ohm amplifier compatibility, the 9.45" cutout, approximately 4.07" mounting depth, available rear cavity volume, and speaker-wire routing.
