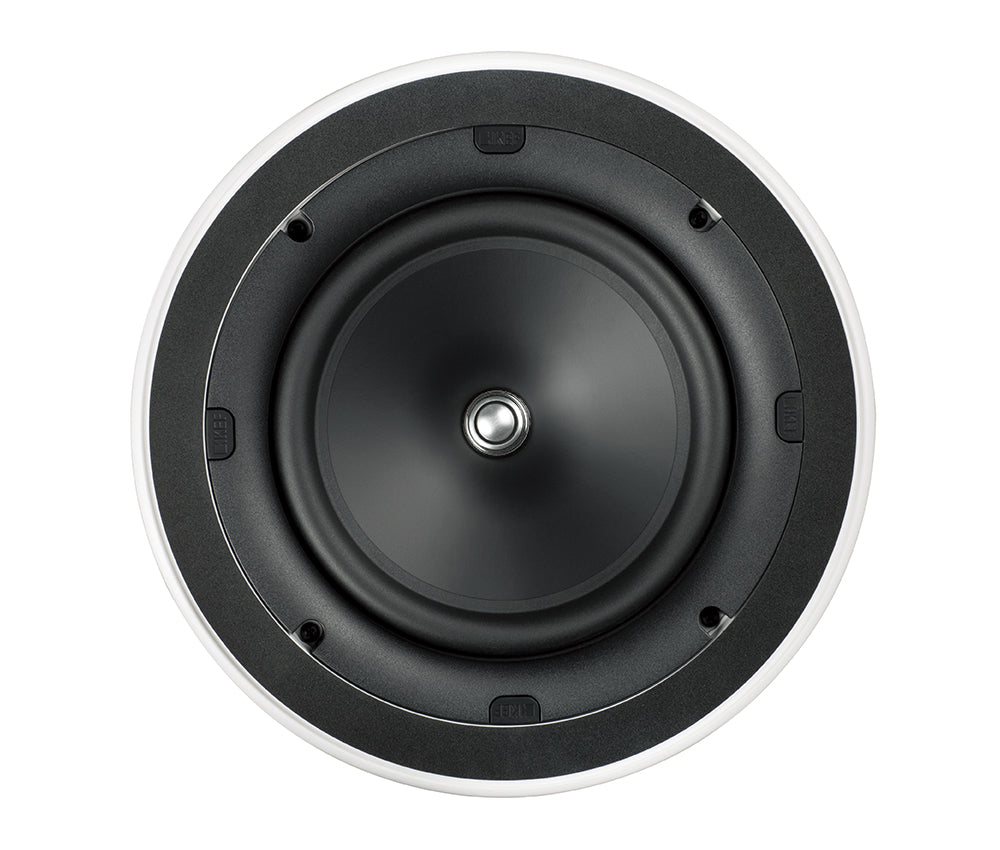

KEF CI200ER 8 Inch Round In-Ceiling Uni-Q Driver Single Speaker

Fuller KEF Sound for Whole-Home Audio

The KEF Ci200ER is a passive 8" round in-ceiling speaker sold individually for whole-home audio, stereo zones, kitchens, bathrooms, bedrooms, living rooms, and other spaces where a larger architectural speaker is preferred.

Its Uni-Q driver array combines an 8" low-frequency driver with a 0.6" aluminum tweeter positioned at the acoustic center to help distribute sound more evenly across the listening area.

Key Specifications

• Sold as: One speaker
• Speaker type: Passive in-ceiling architectural speaker
• LF driver: 200 mm (8") Uni-Q
• HF driver: 16 mm (0.6") aluminum dome tweeter
• Nominal impedance: 8 Ω
• Sensitivity: 90 dB (2.83 V / 1 m)
• Frequency response: 45 Hz–20 kHz (±6 dB, open-backed)
• Frequency range: 38 Hz–45 kHz (-10 dB)
• Crossover frequency: 2.8 kHz
• Recommended amplifier power: 10–125 W
• Recommended high-pass filter: 40 Hz
• Nominal coverage: 100°
• Maximum SPL: 106 dB
• Certification: IP64

Who Should Choose the Ci200ER?

Choose the Ci200ER when you want a larger 8" in-ceiling speaker for music, TV audio, and distributed-audio zones while keeping a clean, low-profile ceiling appearance.

Its larger driver provides stronger low-frequency capability than smaller Ci-E models, while the 100° nominal coverage helps distribute sound across the room.

For conventional stereo playback, order two speakers. Larger rooms or whole-home systems may use additional speakers depending on ceiling height, room shape, and listening goals.

Passive Speaker and Amplifier Requirements

The Ci200ER is completely passive. It does not include a built-in amplifier, Bluetooth, Wi-Fi, streaming, or app control.

KEF recommends 10–125 W of amplifier power and specifies an 8-ohm nominal impedance. Connect it to a compatible amplifier or AV receiver using appropriate in-wall rated speaker wire.

The 10–125 W figure is KEF's recommended amplifier range, not an RMS or peak power-handling specification.

Uni-Q With 100-Degree Coverage

The Ci200ER uses KEF's Uni-Q driver array, placing the 0.6" aluminum tweeter at the acoustic center of the 8" woofer.

KEF specifies approximately 100° nominal coverage, helping provide broad sound across the listening area without relying on a narrow listening position.

Frequency Response and System Setup

KEF specifies an open-backed frequency response of 45 Hz–20 kHz at ±6 dB and a broader 38 Hz–45 kHz range at -10 dB. KEF recommends a 40 Hz high-pass filter.

A subwoofer is optional for normal music and whole-home listening, but it can provide deeper and more controlled bass for home theater or higher-output systems.

Installation Dimensions

• External diameter: 289.6 mm (11.4")
• Overall depth: 103.3 mm (4.07")
• Cutout diameter: 240 mm (9.45")
• Mounting depth: 97.2 mm (3.83")
• Supported mounting thickness: 6–37 mm (0.24–1.46")
• Net weight: 1.6 kg (3.6 lb)

Check joists, electrical wiring, plumbing, HVAC, insulation, and available ceiling depth before cutting the installation opening.

Optional Rough-In Frame and Rear Enclosure

KEF lists the RIF200R rough-in frame and RNC200R rear enclosure as optional accessories for the Ci200ER. Both are sold separately.

KEF specifies approximately 60 liters as the ideal rear volume and 30 liters as the minimum rear volume.

IP64 and Moisture Resistance

The Ci200ER is IP64 certified and uses moisture-resistant terminations, coated materials, and UV-protected plastics.

KEF specifically identifies kitchens and bathrooms as suitable applications. IP64 does not mean waterproof or suitable for immersion.

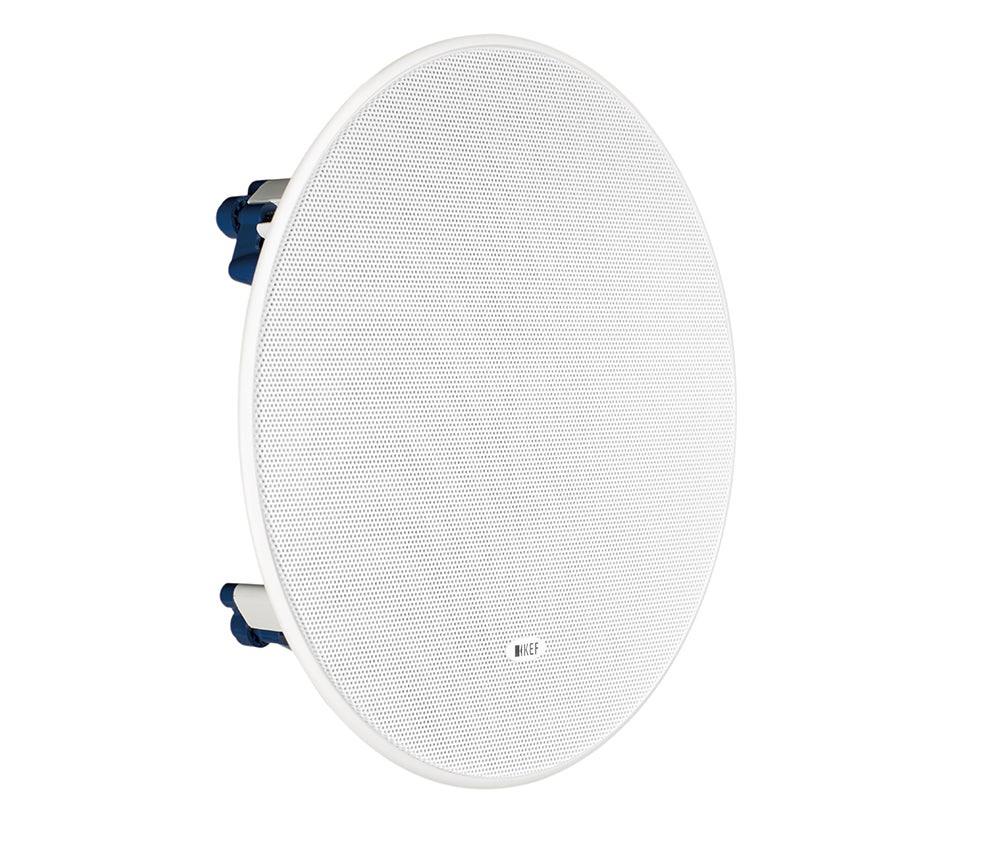

Ultra-Thin Bezel and Magnetic Grille

KEF's Ultra-Thin Bezel keeps the visible rim narrow for a clean ceiling appearance. The magnetic grille can be painted to better match the surrounding finish.

What's Included?

• 1 KEF Ci200ER in-ceiling speaker
• Paintable magnetic grille
• Integrated mounting system
• Product documentation

The amplifier or AV receiver, speaker wire, RIF200R rough-in frame, RNC200R rear enclosure, and other installation materials are sold separately.

Complete Your Audio System

• In-Wall & In-Ceiling Speakers
• Amplifiers
• Speaker Wire

Need Help Planning Your Speaker Layout?

Send Bear Security Shop your room dimensions, ceiling height, amplifier model, and planned speaker quantity. We can help confirm coverage, amplifier compatibility, cutout requirements, and whether the Ci200ER is the right fit.

Is the KEF Ci200ER sold individually or as a pair?

Bear Security Shop currently lists the Ci200ER as a single speaker. For conventional stereo playback, order two speakers.

Is the Ci200ER powered or passive?

It is passive and requires an external amplifier or AV receiver plus speaker wire.

What amplifier power does KEF recommend?

KEF recommends 10–125 W of amplifier power. This is an amplifier recommendation, not an RMS or peak power-handling rating.

What is the impedance?

The Ci200ER has an 8-ohm nominal impedance.

What is the frequency response?

KEF specifies 45 Hz–20 kHz at ±6 dB open-backed and a 38 Hz–45 kHz range at -10 dB.

How wide is the speaker's coverage?

KEF specifies approximately 100° nominal coverage.

What high-pass filter does KEF recommend?

KEF recommends a 40 Hz high-pass filter.

What cutout size is required?

The Ci200ER requires a 240 mm, or approximately 9.45", round cutout.

How much mounting depth is required?

KEF specifies approximately 97.2 mm, or 3.83", of mounting depth.

Is the Ci200ER suitable for kitchens and bathrooms?

Yes. KEF specifically identifies kitchens and bathrooms as suitable applications, and the speaker is IP64 certified. It should not be described as waterproof.

Is a rough-in frame available?

Yes. KEF lists the RIF200R rough-in frame as an optional accessory. It is sold separately.

Is a rear enclosure available?

Yes. KEF lists the RNC200R rear enclosure as an optional accessory. It is sold separately.

What rear volume does KEF recommend?

KEF specifies approximately 60 liters as ideal rear volume and 30 liters as the minimum.

What should I confirm before ordering?

Confirm speaker quantity, 8-ohm amplifier compatibility, the 9.45" cutout, approximately 3.83" mounting depth, available rear cavity volume, and speaker-wire routing.
