JBL PRX412M 12 Inch 2-Way Stage Monitor Speaker 600W PA System

Compact 12-Inch Stage Monitor and Utility Loudspeaker

The JBL PRX412M is a passive 12" two-way loudspeaker designed for stage monitoring, speech reinforcement, live performance, and portable PA applications. Its asymmetrical low-profile cabinet can be used horizontally as a floor monitor or vertically as a main or satellite speaker.

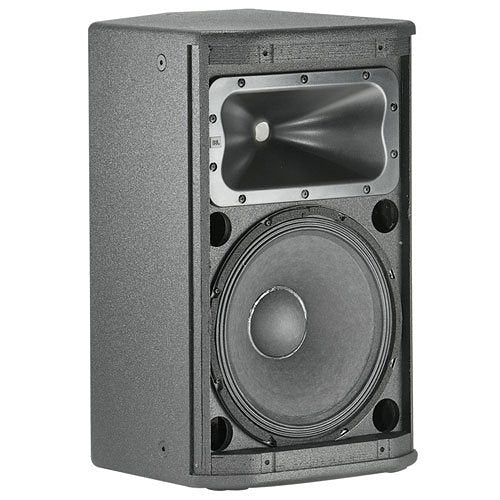

The PRX412M combines a 12" JBL MB112-8 woofer with a 1" JBL 2414H-C polymer-diaphragm compression driver and provides controlled 90° × 50° coverage.

Key Specifications

• Product type: Passive 2-way stage monitor / utility loudspeaker
• Low-frequency driver: JBL MB112-8 12" woofer
• High-frequency driver: JBL 2414H-C 1" polymer-diaphragm compression driver
• Continuous power: 300W
• Program power: 600W
• Peak power: 1200W
• Nominal impedance: 8 ohms
• Sensitivity: 95dB SPL at 1W/1m
• Maximum SPL: 120dB continuous / 126dB peak
• Frequency range: 50Hz–20kHz (-10dB)
• Frequency response: 62Hz–19kHz (±3dB)
• Coverage: 90° horizontal × 50° vertical
• Crossover frequency: 2.0kHz

Who Should Choose the PRX412M?

Choose the PRX412M when you need a versatile passive loudspeaker that can serve as a stage monitor, portable main speaker, speech-reinforcement cabinet, or satellite speaker above a subwoofer.

Its compact profile and flexible mounting options make it useful for musicians, venues, houses of worship, schools, event spaces, and portable PA systems.

12-Inch JBL Woofer

The PRX412M uses a JBL MB112-8 12" low-frequency driver designed to provide strong vocal and music reproduction from a compact enclosure.

The speaker is passive and requires a compatible external power amplifier.

1-Inch Compression Driver

A JBL 2414H-C 1" polymer-diaphragm compression driver handles high-frequency reproduction through a 90° × 50° horn.

The coverage pattern is designed to provide smooth on-axis and off-axis response whether the cabinet is used vertically or horizontally.

300W Continuous / 600W Program Power

JBL specifies 300W continuous, 600W program, and 1200W peak power handling.

These are speaker power-handling ratings, not built-in amplifier output. The PRX412M is a passive loudspeaker.

8-Ohm Impedance

The PRX412M has an 8-ohm nominal impedance and should be paired with an amplifier that can safely support the connected speaker load.

Confirm amplifier output, speaker quantity, and wiring configuration before connecting multiple cabinets to the same channel.

50Hz–20kHz Frequency Range

JBL specifies a 50Hz–20kHz frequency range at -10dB and a 62Hz–19kHz frequency response at ±3dB.

This makes the PRX412M suitable for vocals, speech, acoustic instruments, and general full-range reinforcement. For deeper low-frequency impact, pair it with a compatible subwoofer.

Stage Monitor or Main Speaker

The asymmetrical enclosure allows the PRX412M to sit horizontally as a floor monitor while maintaining a low profile that helps preserve audience sight lines.

It can also be used vertically as a main or satellite speaker.

Dual-Angle Pole Socket

The built-in 35 mm pole socket supports both 0° vertical mounting and a -10° down-tilt position for improved audience coverage when used on a tripod or over a subwoofer.

M10 Suspension Points

The enclosure includes twelve M10 suspension points for compatible installation and rigging applications.

Use properly rated hardware and appropriate installation practices for any suspended application.

Speakon and 1/4-Inch Connections

Parallel Neutrik Speakon NL-2 / 1/4" phone combination connectors provide flexible professional speaker connections.

Use appropriately sized speaker wire based on amplifier power and cable length.

Durable Plywood Enclosure

The enclosure is constructed from 18 mm birch/poplar plywood and finished with JBL's DuraFlex coating.

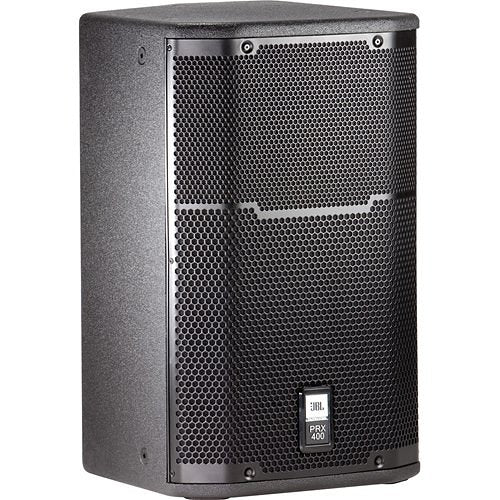

A heavy-duty 16-gauge perforated steel grille with acoustically transparent backing helps protect the drivers during transport and live use.

Dimensions and Weight

• Height: 22.6" (574 mm)
• Width: 13.9" (353 mm)
• Depth: 15.7" (399 mm)
• Weight: 35 lb (16 kg)

What's Included?

• 1 JBL PRX412M passive loudspeaker

Amplifier, speaker stand, speaker pole, cables, and rigging hardware are sold separately.

Complete Your PA System

• JBL Professional
• Audio Amplifiers
• Speaker Wire

Need Help Matching the PRX412M?

Send Bear Security Shop your amplifier model, speaker quantity, intended use, and whether the PRX412M will be used as a monitor, main speaker, or satellite. We can help confirm amplifier power and system compatibility.

Is the JBL PRX412M an active or passive speaker?

The PRX412M is a passive loudspeaker and requires a compatible external power amplifier.

What is the JBL PRX412M power rating?

JBL specifies 300W continuous, 600W program, and 1200W peak power handling.

What impedance is the PRX412M?

The PRX412M has an 8-ohm nominal impedance.

What size drivers does it use?

It uses a JBL MB112-8 12" woofer and a JBL 2414H-C 1" polymer-diaphragm compression driver.

What is the frequency response?

JBL specifies 62Hz–19kHz at ±3dB, with a broader 50Hz–20kHz frequency range at -10dB.

What is the sensitivity?

The PRX412M is rated at 95dB SPL at 1W/1m.

What is the maximum SPL?

JBL specifies 120dB continuous and 126dB peak SPL.

What is the coverage pattern?

The PRX412M provides nominal 90° horizontal × 50° vertical coverage.

Can the PRX412M be used as a floor monitor?

Yes. Its asymmetrical enclosure is specifically designed for horizontal stage-monitor use.

Can it be mounted on a speaker stand?

Yes. The built-in 35 mm pole socket supports both 0° vertical mounting and -10° down tilt.

Can the PRX412M be suspended?

Yes. The enclosure includes twelve M10 suspension points. Use properly rated rigging hardware and appropriate installation practices.

What connections does the PRX412M use?

It uses parallel Neutrik Speakon NL-2 / 1/4" phone combination connectors.

Does it include a built-in amplifier or DSP?

No. The PRX412M is a passive loudspeaker without built-in amplification or onboard DSP.
