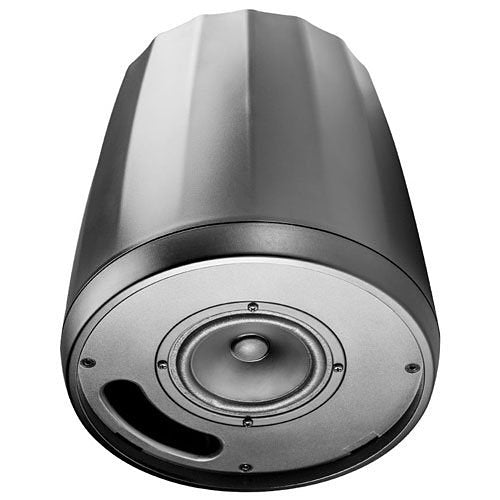

JBL Professional C64P/T 4 Inch Full-Range Pendant Speakers Pair

Compact Full-Range Sound for Open-Ceiling Spaces

The JBL Control 64P/T is a compact full-range pendant loudspeaker designed for open ceilings and other spaces where suspended speakers provide a cleaner installation than conventional ceiling or surface-mount models. Sold as a pair, it is well suited to restaurants, retail spaces, hotels, fitness centers, offices, conference rooms, atriums, museums, and similar environments.

Each speaker uses a 4" polypropylene-coated full-range driver with a high-temperature 0.8" copper voice coil and provides broad 120° conical coverage.

Key Specifications

• Product type: Passive full-range pendant loudspeaker
• Sold as: Pair
• Driver: 4" polypropylene-coated paper cone with cloth surround
• Voice coil: 0.8" high-temperature copper
• Continuous pink-noise power: 50W for 2 hours
• Continuous program power: 100W
• Peak capability: 200W
• Nominal impedance: 8 ohms in direct mode
• Coverage: 120° conical
• Sensitivity: 88dB nominal
• Maximum SPL: 105dB continuous / 111dB peak at 1 meter
• Frequency range: 65Hz–15kHz (-10dB)
• Frequency response: 85Hz–14kHz (±3dB)
• Transformer: Built-in 30W 70V/100V multi-tap transformer
• Environmental rating: IP44 splashproof

Who Should Choose the Control 64P/T?

Choose the Control 64P/T when you need compact pendant speakers for background music, paging, and general full-range audio in open-ceiling spaces.

Its built-in 70V/100V transformer and direct 8-ohm mode make it flexible for both distributed-audio and conventional low-impedance systems.

4-Inch Full-Range Driver

The Control 64P/T uses a single 4" polypropylene-coated paper driver with a cloth surround and 0.8" high-temperature copper voice coil.

The single-driver design keeps the enclosure compact while providing full-range reproduction for speech and background music.

50W Continuous / 100W Program Power

JBL specifies 50W continuous pink-noise power handling for 2 hours, 100W continuous program power, and 200W peak capability.

These are passive-speaker power ratings. The Control 64P/T requires a compatible external amplifier.

70V and 100V Distributed-Audio Operation

The built-in 30W transformer provides selectable taps:

• 70V: 3.7W, 7.5W, 15W, or 30W
• 100V: 7.5W, 15W, or 30W

When using multiple speakers on a distributed-audio amplifier, add the selected tap wattages and allow appropriate amplifier headroom.

Direct 8-Ohm Operation

The Control 64P/T can also be switched to direct 8-ohm operation with a compatible low-impedance amplifier.

Confirm total speaker impedance before connecting multiple speakers to the same amplifier channel.

120° Conical Coverage

JBL specifies a broad 120° conical coverage pattern to help distribute sound evenly across open listening areas.

Actual coverage depends on hanging height, speaker spacing, room geometry, background noise, and required listening level.

65Hz–15kHz Frequency Range

JBL specifies a 65Hz–15kHz frequency range at -10dB and an 85Hz–14kHz frequency response at ±3dB.

This makes the Control 64P/T suitable for speech, paging, and general background-music applications.

Included 15-Foot Suspension Systems

Each speaker includes two complete suspension systems: one main suspension cable and one independent safety cable.

Each system uses a 15-foot high-tensile galvanized-steel cable with adjustable hardware for setting the hanging height.

IP44 Environmental Capability

The Control 64P/T is rated IP44 splashproof and exceeds JBL environmental testing for humidity, salt spray, temperature, and UV exposure.

Rubber covers are included for the Euroblock connectors, and an optional MTC-PC60 terminal cover is available for more demanding protected installations.

Euroblock Input and Loop-Through

Two removable locking 2-pin Euroblock connectors are wired in parallel for input and loop-through connections. The terminals accept speaker wire up to 12 AWG.

Use appropriately rated speaker wire for the system voltage, amplifier power, and cable length.

Dimensions and Weight

• Diameter: 9.3" (234 mm)
• Cabinet height: 10.2" (259 mm)
• Overall height to suspension bracket: 11.0" (279 mm)
• Weight: 5.2 lb (2.35 kg) each

What's Included?

• 2 JBL Control 64P/T pendant loudspeakers
• Main suspension cable system for each speaker
• Safety suspension cable system for each speaker
• 2-pin removable locking Euroblock connectors
• Rubber connector covers

Amplifier, speaker wire, and optional MTC-PC60 terminal covers are sold separately.

Complete Your Pendant Audio System

• JBL Professional
• Speaker Wire
• Audio Amplifiers

Need Help Planning Your Pendant Speaker System?

Send Bear Security Shop your ceiling height, room dimensions, speaker quantity, and amplifier model. We can help confirm transformer tap settings, amplifier power, and speaker spacing.

Are the JBL Control 64P/T speakers sold as a pair?

Yes. The package includes two JBL Control 64P/T pendant loudspeakers.

What driver does the Control 64P/T use?

Each speaker uses a 4" polypropylene-coated full-range driver with a 0.8" high-temperature copper voice coil.

What is the power handling?

JBL specifies 50W continuous pink-noise power, 100W continuous program power, and 200W peak capability.

Does the Control 64P/T support 70V systems?

Yes. Available 70V taps are 3.7W, 7.5W, 15W, and 30W.

Does it support 100V systems?

Yes. Available 100V taps are 7.5W, 15W, and 30W.

Can I use the Control 64P/T with an 8-ohm amplifier?

Yes. It can be switched to direct 8-ohm operation with a compatible low-impedance amplifier.

What is the coverage pattern?

JBL specifies 120° conical coverage.

What is the frequency response?

JBL specifies 85Hz–14kHz at ±3dB, with a broader 65Hz–15kHz frequency range at -10dB.

What is the sensitivity?

The Control 64P/T is rated at 88dB nominal sensitivity.

What is the maximum SPL?

JBL specifies 105dB continuous and 111dB peak SPL at 1 meter.

Can the Control 64P/T be used outdoors?

It has an IP44 splashproof rating and is suitable for appropriate protected outdoor applications. It is not waterproof or submersible.

Is suspension hardware included?

Yes. Each speaker includes both a main suspension system and a separate safety suspension system with 15-foot galvanized-steel cables.

What type of connection does it use?

The Control 64P/T uses two removable locking 2-pin Euroblock connectors wired in parallel for input and loop-through.
