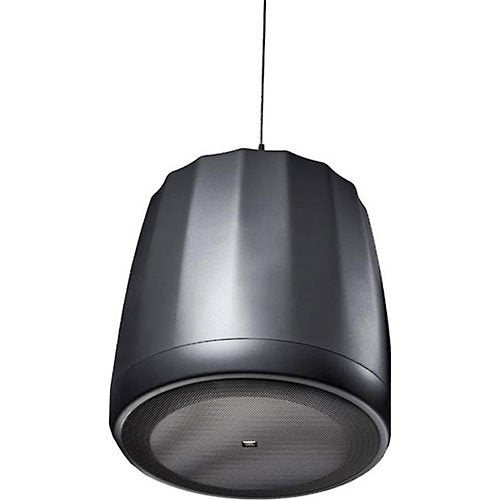

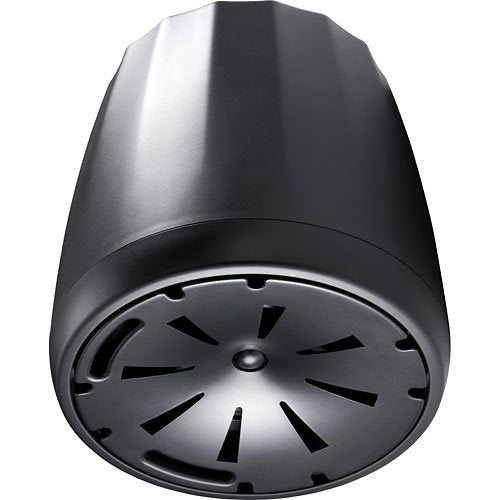

JBL Pro Control 67P/T 6.5 Inch Full-Range Pendant Speaker Pair

High-Output Pendant Sound for Open-Ceiling Spaces

The JBL Control 67P/T is a high-output 2-way pendant loudspeaker designed for open-ceiling spaces that need broad, consistent music and speech coverage. Sold as a pair, it is well suited to restaurants, retail spaces, hotels, fitness centers, convention areas, atriums, museums, conference rooms, and other open-architecture environments.

Each speaker combines a 6.5" polypropylene-coated woofer with a coaxially mounted 1" textile soft-dome tweeter and JBL Radiation Boundary Integrator (RBI) technology for wide 120° conical coverage.

Key Specifications

• Product type: Passive 2-way pendant loudspeaker
• Sold as: Pair
• Low-frequency driver: 6.5" polypropylene-coated paper cone with butyl rubber surround
• High-frequency driver: 1" textile soft-dome tweeter with ferro-fluid cooling
• Continuous pink-noise power: 75W
• Continuous program power: 150W
• Peak capability: 300W
• Nominal impedance: 8 ohms in direct mode
• Coverage: 120° conical
• Sensitivity: 90dB
• Maximum SPL: 109dB continuous / 115dB peak at 1 meter
• Frequency range: 58Hz–18kHz (-10dB)
• Frequency response: 78Hz–16kHz (±3dB)
• Transformer: Built-in 60W 70V/100V multi-tap transformer
• Environmental rating: IP44 splashproof

Who Should Choose the Control 67P/T?

Choose the Control 67P/T when you need fuller sound and higher output than a smaller pendant speaker while maintaining broad overhead coverage.

Its 120° RBI dispersion, 150W program rating, 70V/100V transformer, and direct 8-ohm mode make it flexible for both distributed-audio and conventional amplifier systems.

6.5-Inch Coaxial Two-Way Design

The Control 67P/T uses a 6.5" polypropylene-coated paper woofer with a pure butyl rubber surround and a 1" copper voice coil.

A coaxially mounted 1" textile soft-dome tweeter uses a neodymium magnet assembly, aluminum voice-coil former, and ferro-fluid cooling for smooth high-frequency reproduction.

JBL RBI 120° Conical Coverage

JBL's Radiation Boundary Integrator technology provides a nominal 120° conical coverage pattern designed to maintain consistent sound across a wide listening area.

The broad pattern can help reduce the number of speaker locations required compared with narrower-dispersion designs, depending on ceiling height, room geometry, and required listening level.

75W Continuous / 150W Program Power

JBL specifies 75W continuous pink-noise power handling, 150W continuous program power, and 300W peak capability.

These are passive-speaker power ratings. The Control 67P/T requires a compatible external amplifier.

70V and 100V Distributed-Audio Operation

The built-in 60W transformer provides selectable taps for distributed-audio systems:

• 70V: 7.5W, 15W, 30W, or 60W
• 100V: 15W, 30W, or 60W

When using multiple speakers on a 70V or 100V amplifier, add the selected tap wattages and allow appropriate amplifier headroom.

Direct 8-Ohm Operation

The Control 67P/T can also bypass the transformer for direct 8-ohm operation with a compatible low-impedance amplifier.

Confirm total speaker impedance before connecting multiple speakers to the same amplifier channel.

58Hz–18kHz Frequency Range

JBL specifies a 58Hz–18kHz range at -10dB and a 78Hz–16kHz response at ±3dB.

This gives the Control 67P/T strong full-range performance for both music and speech in open-ceiling environments.

Included 15-Foot Suspension Systems

Each speaker includes two complete suspension systems: one main suspension cable and one independent safety cable.

Each system uses a 15-foot high-tensile galvanized-steel cable with adjustable Gripple hardware for flexible hanging height.

IP44 Environmental Capability

The Control 67P/T is rated IP44 splashproof and exceeds JBL environmental testing for humidity, salt spray, temperature, and UV exposure.

Rubber covers are included for the input connectors, and an optional MTC-PC60 terminal cover is available for more demanding protected installations.

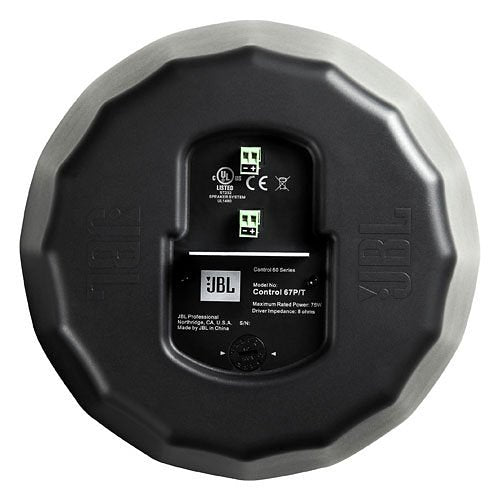

Euroblock Input and Loop-Through

Two removable locking 2-pin Euroblock connectors are wired in parallel for input and loop-through connections. The terminals accept speaker wire up to 12 AWG.

Use appropriately rated speaker wire for the system voltage, amplifier power, and cable length.

Dimensions and Weight

• Diameter: 12.3" (312 mm)
• Cabinet height: 13.0" (330 mm)
• Overall height to suspension bracket: 13.8" (350 mm)
• Weight: 11.5 lb (5.2 kg) each

What's Included?

• 2 JBL Control 67P/T pendant loudspeakers
• Main suspension cable system for each speaker
• Safety suspension cable system for each speaker
• 2-pin removable locking Euroblock connectors
• Rubber connector covers

Amplifier, speaker wire, and optional MTC-PC60 terminal covers are sold separately.

Complete Your Pendant Audio System

• JBL Professional
• Pendant Ceiling Speakers
• Speaker Wire

Need Help Planning Your Pendant Speaker System?

Send Bear Security Shop your ceiling height, room dimensions, speaker quantity, and amplifier model. We can help confirm coverage, transformer tap settings, amplifier power, and speaker spacing.

Are the JBL Control 67P/T speakers sold as a pair?

Yes. The package includes two JBL Control 67P/T pendant loudspeakers.

What size drivers does the Control 67P/T use?

Each speaker uses a 6.5" polypropylene-coated woofer and a coaxially mounted 1" textile soft-dome tweeter.

What is the power handling?

JBL specifies 75W continuous pink-noise power, 150W continuous program power, and 300W peak capability.

Does the Control 67P/T support 70V systems?

Yes. Available 70V taps are 7.5W, 15W, 30W, and 60W.

Does it support 100V systems?

Yes. Available 100V taps are 15W, 30W, and 60W.

Can I use the Control 67P/T with an 8-ohm amplifier?

Yes. The transformer can be bypassed for direct 8-ohm operation with a compatible low-impedance amplifier.

What is the coverage pattern?

JBL specifies 120° conical coverage using its Radiation Boundary Integrator technology.

What is the frequency response?

JBL specifies 78Hz–16kHz at ±3dB, with a broader 58Hz–18kHz frequency range at -10dB.

What is the sensitivity?

The Control 67P/T is rated at 90dB sensitivity.

What is the maximum SPL?

JBL specifies 109dB continuous and 115dB peak SPL at 1 meter.

Can the Control 67P/T be used outdoors?

It has an IP44 splashproof rating and is suitable for appropriate protected outdoor applications. It is not waterproof or submersible.

Is suspension hardware included?

Yes. Each speaker includes both a main suspension system and a separate safety suspension system with 15-foot galvanized-steel cables.

What type of speaker connection does it use?

The Control 67P/T uses two removable locking 2-pin Euroblock connectors wired in parallel for input and loop-through.
