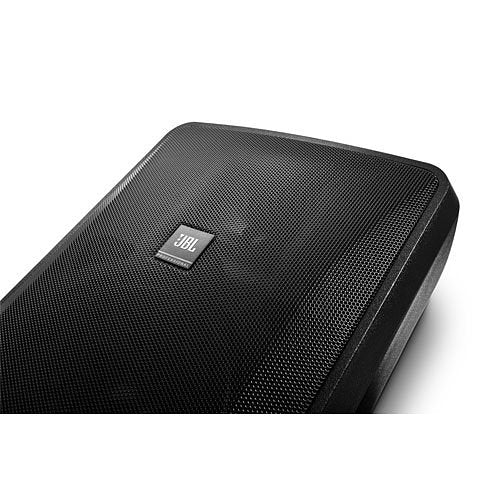

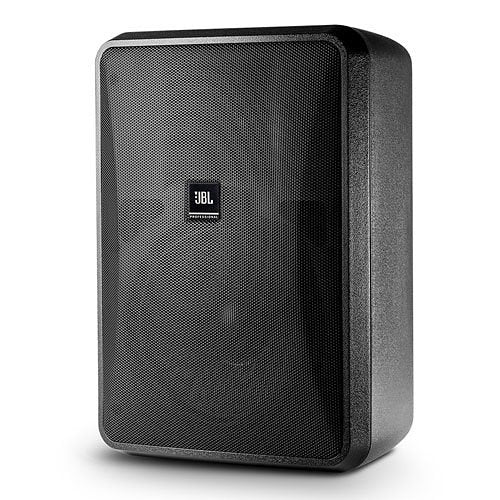

JBL Control 28-1 8 Inch 2-Way Speakers High Output Outdoor Pair

High-Output JBL Sound for Larger Indoor and Outdoor Spaces

The JBL Control 28-1 is a high-output 2-way surface-mount loudspeaker designed for foreground music, background music, and paging in larger indoor or outdoor spaces. Sold as a pair, it is well suited to restaurants, patios, gyms, retail spaces, hospitality venues, educational facilities, theme parks, and other areas that need more output and low-frequency extension than smaller surface-mount speakers.

Each speaker combines an 8" woven-fiberglass woofer with a 1" PEI diaphragm tweeter and provides broad 100° × 100° coverage.

Key Specifications

• Product type: Passive 2-way indoor/outdoor surface-mount loudspeaker
• Sold as: Pair
• Low-frequency driver: 8" woven-fiberglass cone with pure butyl rubber surround
• High-frequency driver: 1" PEI diaphragm tweeter with fluid cooling
• Continuous pink-noise power: 120W for 2 hours
• Continuous program power: 240W
• Peak capability: 480W
• Long-term pink-noise power: 90W for 100 hours
• Nominal impedance: 8 ohms in THRU mode
• Coverage: 100° horizontal × 100° vertical
• Sensitivity: 91dB at 1W/1m
• Maximum SPL: 112dB continuous / 118dB peak at 1 meter
• Frequency range: 45Hz–20kHz (-10dB)
• Frequency response: 62Hz–16kHz (±3dB)
• Transformer: Built-in 60W 70V/100V multi-tap transformer
• Environmental rating: IP44 standard

Who Should Choose the Control 28-1?

Choose the Control 28-1 when you need stronger output, fuller bass, and broader coverage than a smaller compact surface-mount speaker can provide.

Its built-in 70V/100V transformer and direct 8-ohm THRU mode make it flexible enough for distributed-audio systems as well as conventional low-impedance amplifier setups.

8-Inch Woven-Fiberglass Woofer

The Control 28-1 uses an 8" woven-fiberglass low-frequency driver with a pure butyl rubber surround, Weather-Edge frame protection, high-temperature voice-coil materials, and an optimized motor structure.

The larger woofer helps provide stronger low-frequency output for music-focused spaces and larger listening areas.

1-Inch Fluid-Cooled Tweeter

A 1" PEI diaphragm tweeter with low-viscosity ferro-magnetic fluid cooling handles high-frequency reproduction.

The tweeter is designed for durability and smooth sound while maintaining broad 100° × 100° coverage.

120W Continuous / 240W Program Power

JBL specifies 120W continuous pink-noise power handling for 2 hours, 240W continuous program power, and 480W peak capability.

JBL also publishes a 90W continuous pink-noise rating for 100-hour testing.

These are passive-speaker power ratings. The Control 28-1 requires a compatible external amplifier.

70V and 100V Distributed-Audio Operation

The built-in 60W transformer provides selectable taps for distributed-audio systems:

• 70V: 7.5W, 15W, 30W, or 60W
• 100V: 15W, 30W, or 60W

When using multiple speakers on a 70V or 100V amplifier, add the selected tap wattages and allow appropriate amplifier headroom.

Direct 8-Ohm THRU Mode

The Control 28-1 can bypass the transformer using its THRU position for direct 8-ohm operation with a compatible low-impedance amplifier.

Confirm total speaker impedance before connecting multiple speakers to the same amplifier channel.

100° × 100° Coverage

JBL specifies 100° horizontal × 100° vertical coverage, helping distribute sound broadly and consistently across the listening area.

Actual coverage depends on mounting height, aiming, listener distance, environmental noise, and room or outdoor acoustics.

45Hz–20kHz Frequency Range

JBL specifies a 45Hz–20kHz frequency range at -10dB and a 62Hz–16kHz frequency response at ±3dB.

This gives the Control 28-1 stronger low-frequency extension than many smaller surface-mount speakers while still supporting clear speech and paging.

Included InvisiBall Wall Mounts

JBL's InvisiBall mounting system is included for adjustable wall installation while keeping most mounting hardware visually hidden.

An optional MTC-28UB-1 U-bracket is available for installations that require a different mounting method.

Indoor and Outdoor Weather Resistance

The standard Control 28-1 is rated IP44 and uses weather-resistant transducers, enclosure materials, and a durable grille for suitable indoor and outdoor installations.

For more demanding environments, JBL specifies IP55 capability when the optional MTC-28WMG-1 WeatherMax grille and compatible MTC-PC2 or MTC-PC3 protective panel cover are installed.

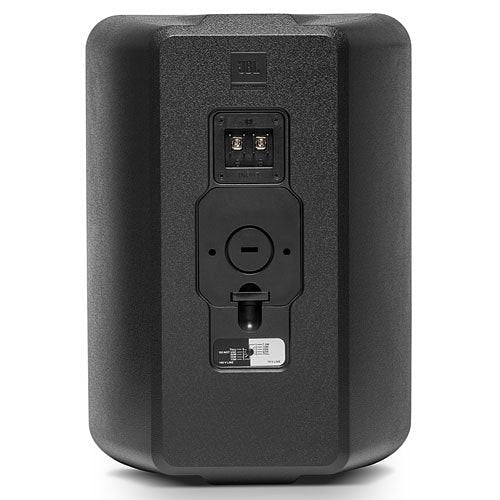

Screw-Terminal Connections

The Control 28-1 uses screw-down terminals that accept bare wire up to 12 AWG or compatible open lugs.

Use appropriately rated speaker wire for the amplifier type, cable length, and installation environment.

Dimensions

• Height: 15.2" (386 mm)
• Width: 11.1" (282 mm)
• Depth: 8.6" (219 mm)

What's Included?

• 2 JBL Control 28-1 loudspeakers
• InvisiBall wall-mounting hardware

Amplifier, speaker wire, optional U-brackets, WeatherMax grilles, and protective terminal covers are sold separately.

Complete Your Audio System

• JBL Professional
• Outdoor Speakers
• Speaker Wire

Need Help Matching the Control 28-1?

Send Bear Security Shop your amplifier model, speaker quantity, mounting location, and whether you plan to use 70V, 100V, or 8-ohm operation. We can help confirm amplifier power, transformer taps, and speaker placement.

Are the JBL Control 28-1 speakers sold as a pair?

Yes. The package includes two JBL Control 28-1 loudspeakers.

What size drivers does the Control 28-1 use?

Each speaker uses an 8" woven-fiberglass low-frequency driver and a 1" PEI diaphragm tweeter with fluid cooling.

What is the power handling?

JBL specifies 120W continuous pink-noise power for 2 hours, 240W continuous program power, and 480W peak capability. JBL also publishes a 90W 100-hour pink-noise rating.

Does the Control 28-1 support 70V systems?

Yes. Available 70V taps are 7.5W, 15W, 30W, and 60W.

Does it support 100V systems?

Yes. Available 100V taps are 15W, 30W, and 60W.

Can I use the Control 28-1 with an 8-ohm amplifier?

Yes. Select the THRU setting for direct 8-ohm operation with a compatible low-impedance amplifier.

What is the coverage pattern?

JBL specifies 100° horizontal × 100° vertical coverage.

What is the frequency response?

JBL specifies 62Hz–16kHz at ±3dB, with a broader 45Hz–20kHz frequency range at -10dB.

What is the sensitivity?

The Control 28-1 is rated at 91dB sensitivity at 1W/1m.

What is the maximum SPL?

JBL specifies approximately 112dB continuous and 118dB peak SPL at 1 meter.

Can the Control 28-1 be used outdoors?

Yes. The standard speaker is IP44 rated for suitable outdoor installations. Optional JBL WeatherMax accessories can increase protection to IP55 for more demanding environments.

Are wall mounts included?

Yes. JBL's InvisiBall wall-mounting system is included.

Does the Control 28-1 require an external amplifier?

Yes. It is a passive loudspeaker and requires a compatible 70V, 100V, or low-impedance amplifier.
