JBL Control 25AV 5.25 Inch Indoor Outdoor Compact Speakers Pair

Compact JBL Indoor/Outdoor Sound with High Output

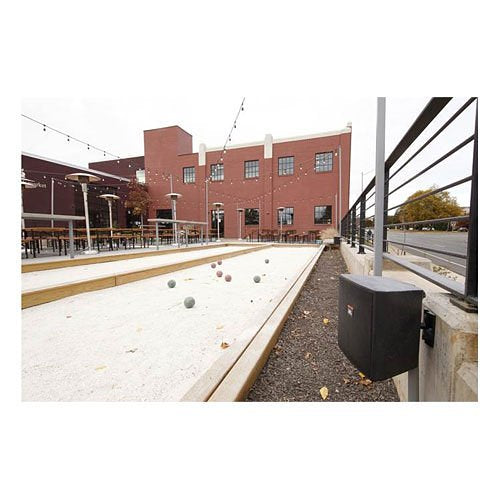

The JBL Control 25AV is a compact 2-way surface-mount loudspeaker designed for high-quality background music, foreground music, paging, and distributed-audio systems. Sold as a pair, it combines strong output, smooth frequency response, and flexible amplifier compatibility for patios, restaurants, retail spaces, hospitality areas, fitness centers, entertainment venues, and other indoor or outdoor listening zones.

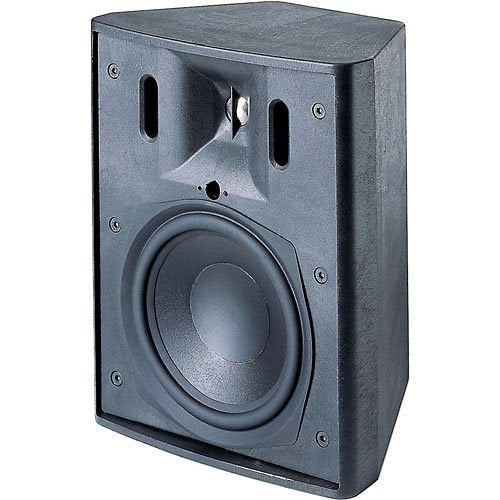

Each speaker uses a 5.25" polypropylene-coated low-frequency driver and a 0.75" titanium-coated horn-loaded tweeter with a 100° × 100° coverage pattern.

Key Specifications

• Product type: Passive 2-way indoor/outdoor surface-mount loudspeaker
• Sold as: Pair
• Low-frequency driver: 5.25" polypropylene-coated paper cone with WeatherEdge surround
• LF voice coil: 1"
• High-frequency driver: 0.75" titanium-coated PEI horn-loaded tweeter
• Continuous pink-noise power: 100W
• Continuous program power: 200W
• Nominal impedance: 8 ohms in THRU mode
• Minimum impedance: 6.7 ohms at 230Hz
• Coverage: 100° horizontal × 100° vertical
• Sensitivity: 87dB at 1W/1m
• Maximum SPL: 107dB continuous average pink noise / 113dB continuous peak pink noise
• Frequency range: 70Hz–23kHz (-10dB)
• Transformer: Built-in 60W 70V/100V multi-tap transformer
• Environmental rating: IPX4 splashproof
• Protection: SonicGuard full-range overload protection

Who Should Choose the Control 25AV?

Choose the Control 25AV when you need compact speakers with higher output and smoother full-range performance than a basic background-music speaker, while still keeping flexible indoor/outdoor mounting options.

Its built-in transformer and direct 8-ohm mode make it suitable for both distributed 70V/100V systems and conventional low-impedance amplifier setups.

5.25-Inch Polypropylene-Coated Woofer

The Control 25AV uses a 5.25" polypropylene-coated paper woofer with a WeatherEdge surround and 1" voice coil on a Kapton former.

The deeper enclosure and optimized network are designed to provide smooth music and voice reproduction from a compact cabinet.

0.75-Inch Titanium-Coated Horn Tweeter

A 0.75" titanium-coated PEI tweeter is mounted to a 100° × 100° high-frequency horn for broad, controlled coverage.

This makes the Control 25AV useful where consistent speech intelligibility and even music coverage matter across a wider listening area.

100W Continuous / 200W Program Power

JBL specifies 100W continuous pink-noise power handling and 200W continuous program power.

These are passive-speaker power ratings. The Control 25AV requires a compatible external amplifier.

70V and 100V Distributed-Audio Operation

The built-in 60W transformer provides selectable taps for distributed-audio systems:

• 70V: 7.5W, 15W, 30W, or 60W
• 100V: 15W, 30W, or 60W

When using multiple speakers on a 70V or 100V amplifier, add the selected tap wattages and allow appropriate amplifier headroom.

Direct 8-Ohm THRU Mode

The Control 25AV can bypass the transformer using its THRU position for direct 8-ohm operation with a compatible amplifier.

Confirm total speaker impedance before connecting multiple speakers to the same low-impedance amplifier channel.

100° × 100° Coverage

JBL specifies 100° horizontal × 100° vertical coverage, helping distribute sound evenly across the listening area.

Actual coverage depends on mounting height, aiming, listener distance, environmental noise, and room or outdoor acoustics.

70Hz–23kHz Frequency Range

JBL specifies a 70Hz–23kHz frequency range at -10dB, with a typical midrange response of 130Hz–14kHz at ±1.5dB.

This makes the Control 25AV suitable for music, paging, and general foreground audio. Systems requiring deeper low-frequency impact may benefit from a separate subwoofer.

SonicGuard Overload Protection

JBL's SonicGuard protection system limits excessive power to help protect the crossover network and transducers during overload conditions.

An internal fuse provides additional protection during exceptional overload events.

Indoor and Outdoor Weather Resistance

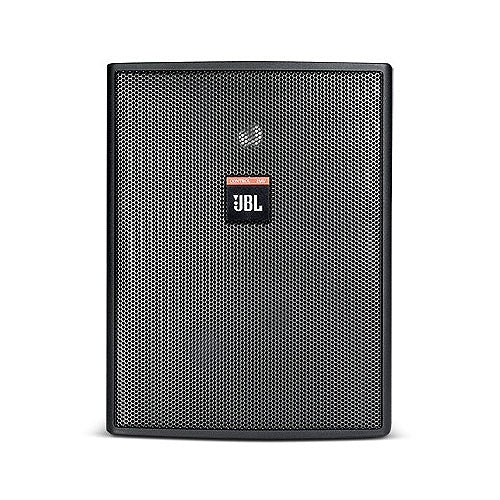

The Control 25AV uses a high-impact enclosure, stainless-steel grille, and weather-resistant transducers. JBL specifies IPX4 splashproof performance and testing for humidity, salt spray, temperature, and UV exposure.

It is suitable for appropriate outdoor installations but should not be treated as waterproof or submersible.

Included InvisiBall Wall Mounts

JBL's InvisiBall mounting system is included for adjustable wall installation while keeping most mounting hardware visually hidden.

The mounting system provides approximately 37° vertical and 44° horizontal adjustment when mounted against a wall.

Sealed Input Panel and Screw-Terminal Connections

The Control 25AV uses screw-down input terminals that accept bare wire up to 12 AWG or compatible open lugs.

Sealed input-panel covers are included to help protect the rear connections in suitable installations. Use appropriately rated speaker wire for the amplifier type, cable length, and installation environment.

Dimensions and Weight

• Height: 9.3" (236 mm)
• Width: 7.4" (186 mm)
• Depth: 6.3" (159 mm)
• Weight: 9 lb (4.0 kg) each

What's Included?

• 2 JBL Control 25AV loudspeakers
• InvisiBall mounting bases
• Sealed MTC-PC input panel covers
• 6 mm × 100 mm InvisiBall hex wrench

Amplifier, speaker wire, and optional mounting accessories are sold separately.

Complete Your Audio System

• JBL Professional
• Outdoor Speakers
• Speaker Wire

Need Help Matching the Control 25AV?

Send Bear Security Shop your amplifier model, speaker quantity, mounting location, and whether you plan to use 70V, 100V, or 8-ohm operation. We can help confirm amplifier power, transformer taps, and speaker placement.

Are the JBL Control 25AV speakers sold as a pair?

Yes. The package includes two JBL Control 25AV loudspeakers.

What size drivers does the Control 25AV use?

Each speaker uses a 5.25" polypropylene-coated low-frequency driver and a 0.75" titanium-coated PEI horn-loaded tweeter.

What is the power handling?

JBL specifies 100W continuous pink-noise power and 200W continuous program power.

Does the Control 25AV support 70V systems?

Yes. Available 70V taps are 7.5W, 15W, 30W, and 60W.

Does it support 100V systems?

Yes. Available 100V taps are 15W, 30W, and 60W.

Can I use the Control 25AV with an 8-ohm amplifier?

Yes. Select the THRU setting for direct 8-ohm operation with a compatible low-impedance amplifier.

What is the coverage pattern?

JBL specifies 100° horizontal × 100° vertical coverage.

What is the frequency range?

JBL specifies a 70Hz–23kHz frequency range at -10dB.

What is the sensitivity?

The Control 25AV is rated at 87dB sensitivity at 1W/1m.

What is the maximum SPL?

JBL specifies approximately 107dB continuous average pink-noise SPL and 113dB continuous peak pink-noise SPL at 1 meter.

Can the Control 25AV be used outdoors?

Yes. It is rated IPX4 splashproof and is designed for appropriate indoor and outdoor installations. It is not waterproof or submersible.

What is SonicGuard?

SonicGuard is JBL's overload-protection system that helps protect the crossover network and transducers during excessive input conditions.

Are wall mounts included?

Yes. JBL's InvisiBall wall-mounting system and sealed input-panel covers are included.

Does the Control 25AV require an external amplifier?

Yes. It is a passive loudspeaker and requires a compatible 70V, 100V, or low-impedance amplifier.
