JBL Control 25-1 Compact 2-Way 5 Inch Indoor Outdoor Speaker Pair

Compact JBL Sound for Indoor and Outdoor Spaces

The JBL Control 25-1 is a compact 2-way surface-mount loudspeaker designed for background music, foreground music, and paging in indoor or outdoor spaces. Sold as a pair, it combines strong output, broad coverage, and flexible amplifier compatibility in a relatively compact enclosure.

Each speaker uses a 5.25" woven-fiberglass woofer and 0.75" PEI diaphragm tweeter with fluid cooling, delivering wide 100° × 100° coverage for patios, restaurants, retail spaces, hospitality areas, gyms, educational facilities, and other listening zones.

Key Specifications

• Product type: Passive 2-way indoor/outdoor surface-mount loudspeaker
• Sold as: Pair
• Low-frequency driver: 5.25" woven-fiberglass cone
• High-frequency driver: 0.75" PEI diaphragm tweeter with fluid cooling
• Continuous pink-noise power: 100W for 2 hours
• Continuous program power: 200W
• Peak capability: 400W
• Nominal impedance: 8 ohms in THRU mode
• Coverage: 100° horizontal × 100° vertical
• Sensitivity: 90dB at 1W/1m
• Maximum SPL: 110dB continuous / 116dB peak at 1 meter
• Frequency range: 60Hz–20kHz (-10dB)
• Frequency response: 85Hz–17kHz (±3dB)
• Transformer: Built-in 30W 70V/100V multi-tap transformer
• Weather protection: IP44 standard

Who Should Choose the Control 25-1?

Choose the Control 25-1 when you need compact speakers that can handle both indoor and outdoor installations while providing enough output for background music, foreground music, and paging.

Its combination of direct 8-ohm operation and built-in 70V/100V transformer support makes it useful for conventional audio systems as well as larger distributed-audio installations.

5.25-Inch Woven-Fiberglass Woofer

The Control 25-1 uses a 5.25" woven-fiberglass low-frequency driver with a pure butyl rubber surround and Weather-Edge frame protection.

The driver is designed to provide reliable music and voice reproduction while supporting the speaker's indoor/outdoor applications.

0.75-Inch Fluid-Cooled Tweeter

A 0.75" PEI diaphragm tweeter with ferro-magnetic fluid cooling handles high-frequency reproduction.

Together with the woofer, it provides a broad 60Hz–20kHz frequency range for music and paging applications.

100W Continuous / 200W Program Power

JBL specifies 100W continuous pink-noise power handling for 2 hours, 200W continuous program power, and 400W peak capability.

These are passive-speaker power ratings. The Control 25-1 requires a compatible external amplifier.

70V and 100V Distributed-Audio Operation

The built-in 30W transformer provides selectable taps for distributed-audio systems:

• 70V: 3.7W, 7.5W, 15W, or 30W
• 100V: 7.5W, 15W, or 30W

When using multiple speakers on a 70V or 100V amplifier, add the selected tap wattages and allow appropriate amplifier headroom.

Direct 8-Ohm THRU Mode

The Control 25-1 can bypass the transformer using its THRU setting for direct 8-ohm operation with a compatible amplifier or AV receiver.

Confirm total speaker impedance before connecting multiple speakers to the same low-impedance amplifier channel.

100° × 100° Coverage

JBL specifies 100° horizontal × 100° vertical coverage, providing broad and consistent dispersion across the listening area.

Actual coverage depends on mounting height, aiming, listener distance, background noise, and the acoustics of the space.

60Hz–20kHz Frequency Range

JBL specifies a 60Hz–20kHz frequency range at -10dB and an 85Hz–17kHz frequency response at ±3dB.

This makes the Control 25-1 suitable for speech and general music playback. Systems requiring stronger low-frequency impact may benefit from a separate subwoofer.

Included InvisiBall Wall Mounts

JBL's InvisiBall mounting system is included for clean, adjustable wall installation while keeping most of the mounting hardware hidden behind the speaker.

An optional MTC-25UB-1 U-bracket and MTC-28/25CM ceiling-mount adapter are available for alternative mounting applications.

Indoor and Outdoor Weather Resistance

The standard Control 25-1 is rated IP44 and uses weather-resistant transducers and enclosure materials for appropriate indoor and outdoor installations.

For more demanding locations, JBL specifies IP55 capability when the optional WeatherMax grille and compatible protective panel cover are installed.

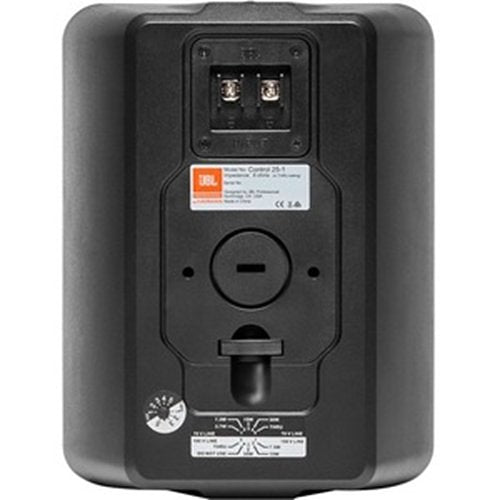

Screw-Terminal Connections

The Control 25-1 uses screw-down input terminals that accept bare speaker wire up to 12 AWG or compatible open lugs.

Use appropriately rated speaker wire for the amplifier type, cable length, and installation environment.

Dimensions and Weight

• Height: 9.6" (243 mm)
• Width: 7.4" (188 mm)
• Depth: 5.7" (145 mm)
• Total depth with InvisiBall: 8.0" (203 mm)
• Weight: 7.5 lb (3.4 kg) each

What's Included?

• 2 JBL Control 25-1 loudspeakers
• InvisiBall wall-mounting hardware
• 6 mm × 100 mm hex key

Amplifier, speaker wire, optional U-brackets, WeatherMax grilles, and protective terminal covers are sold separately.

Complete Your Audio System

• JBL Professional
• Outdoor Speakers
• Speaker Wire

Need Help Matching the Control 25-1?

Send Bear Security Shop your amplifier model, speaker quantity, mounting location, and whether you plan to use 70V, 100V, or 8-ohm operation. We can help confirm amplifier power, transformer taps, and speaker placement.

Are the JBL Control 25-1 speakers sold as a pair?

Yes. The package includes two JBL Control 25-1 loudspeakers.

What size drivers does the Control 25-1 use?

Each speaker uses a 5.25" woven-fiberglass low-frequency driver and a 0.75" PEI diaphragm tweeter with fluid cooling.

What is the power handling?

JBL specifies 100W continuous pink-noise power for 2 hours, 200W continuous program power, and 400W peak capability.

Does the Control 25-1 support 70V systems?

Yes. Available 70V taps are 3.7W, 7.5W, 15W, and 30W.

Does it support 100V systems?

Yes. Available 100V taps are 7.5W, 15W, and 30W.

Can I use the Control 25-1 with an 8-ohm amplifier or receiver?

Yes. Select the THRU setting for direct 8-ohm operation with a compatible low-impedance amplifier or receiver.

What is the coverage pattern?

JBL specifies 100° horizontal × 100° vertical coverage.

What is the frequency response?

JBL specifies 85Hz–17kHz at ±3dB, with a broader 60Hz–20kHz frequency range at -10dB.

What is the sensitivity?

The Control 25-1 is rated at 90dB sensitivity at 1W/1m.

What is the maximum SPL?

JBL specifies 110dB average continuous and 116dB peak SPL at 1 meter.

Can the Control 25-1 be used outdoors?

Yes. The standard speaker is IP44 rated for appropriate outdoor installations. Optional JBL WeatherMax accessories can increase protection to IP55 for more demanding environments.

Are wall mounts included?

Yes. JBL's InvisiBall wall-mounting system is included.

Does the Control 25-1 require an external amplifier?

Yes. It is a passive loudspeaker and requires a compatible 70V, 100V, or low-impedance amplifier.
