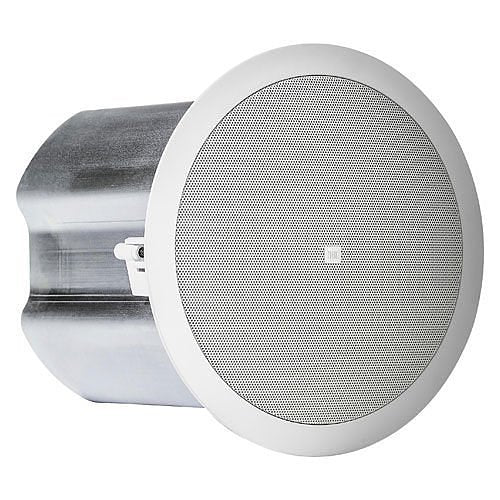

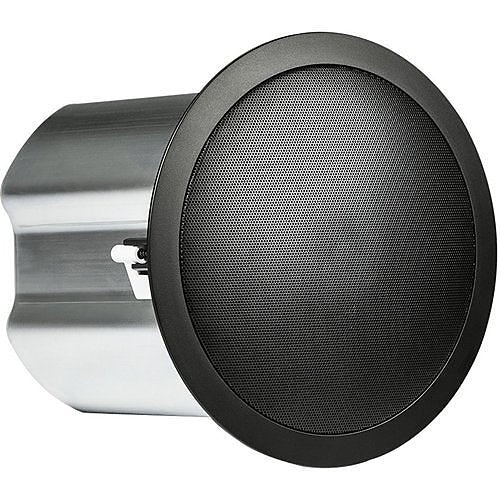

JBL Control 16C/T 6.5 Inch 2-Way Ceiling Coaxial Speakers Pair

Wide-Coverage JBL Ceiling Speakers for Music and Paging

The JBL Control 16C/T is a professional 6.5" two-way coaxial ceiling loudspeaker designed for background music, foreground music, paging, and distributed-audio systems. Sold as a pair.

Each speaker combines a 6.5" polypropylene low-frequency driver with a 0.75" liquid-cooled silk-dome tweeter and provides 110° conical coverage for consistent sound across offices, restaurants, retail spaces, hospitality areas, classrooms, lounges, and similar indoor environments.

Key Specifications

• Product type: Passive 2-way coaxial ceiling loudspeaker
• Sold as: Pair
• Low-frequency driver: 6.5" polypropylene cone with butyl rubber surround
• High-frequency driver: 0.75" treated silk-dome tweeter with liquid cooling
• Continuous pink-noise power: 50W
• Continuous program power: 100W
• Peak capability: 200W
• Nominal impedance: 8 ohms in direct/bypass mode
• Coverage: 110° conical
• Sensitivity: 91dB
• Maximum SPL: 108dB average / 116dB peak at 1 meter in low-impedance mode
• Frequency range: 62Hz–20kHz (-10dB)
• Frequency response: 96Hz–15kHz (±3dB)
• Transformer: 30W multi-tap for 70V/100V systems
• Backcan: Integrated steel blind-mount backcan

Who Should Choose the Control 16C/T?

Choose the Control 16C/T when you need reliable overhead audio with broad coverage and flexible amplifier compatibility. It is well suited to retail stores, restaurants, offices, educational spaces, hospitality environments, reception areas, meeting rooms, and other spaces that use ceiling-mounted background music or paging.

The speaker supports both distributed 70V/100V systems and conventional 8-ohm amplification, making it flexible enough for different system designs.

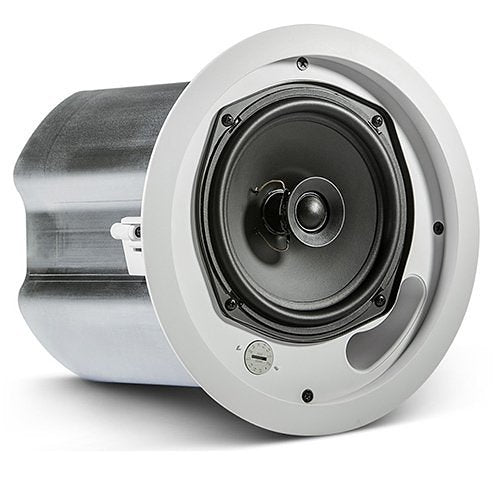

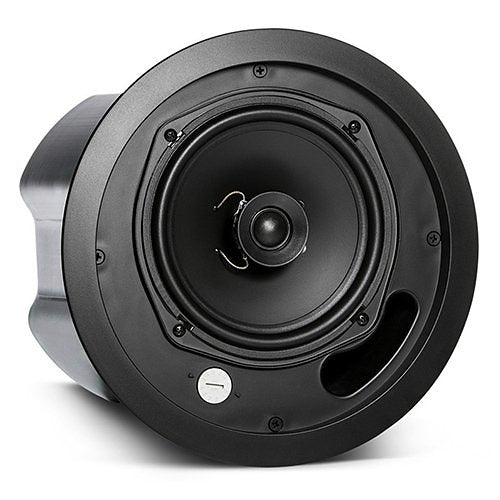

6.5-Inch Coaxial Two-Way Design

Each Control 16C/T uses a 6.5" polypropylene-cone woofer with a butyl rubber surround and a 0.75" treated silk-dome tweeter.

The tweeter uses a lightweight Kapton voice coil and liquid cooling for improved high-frequency performance and reliability.

110° Conical Coverage

JBL specifies a nominal 110° conical coverage pattern, allowing each speaker to distribute sound across a broad listening area.

Actual coverage depends on ceiling height, speaker spacing, room acoustics, background noise, and required listening level.

50W Continuous / 100W Program Power

JBL specifies 50W continuous pink-noise power handling and 100W continuous program power in low-impedance operation, with 200W peak capability.

These are passive-speaker power ratings. The Control 16C/T requires a compatible external amplifier.

70V and 100V Distributed-Audio Operation

The built-in 30W transformer provides selectable taps for distributed-audio systems:

• 70V: 3.8W, 7.5W, 15W, or 30W
• 100V: 7.5W, 15W, or 30W

When using multiple speakers on a constant-voltage amplifier, add the selected tap wattages and allow appropriate amplifier headroom.

8-Ohm Direct Operation

The Control 16C/T can also bypass the transformer for direct 8-ohm use with a compatible low-impedance amplifier or receiver.

This makes it suitable for both distributed-audio systems and properly designed conventional audio systems.

62Hz–20kHz Frequency Range

JBL specifies a 62Hz–20kHz frequency range at -10dB and a 96Hz–15kHz frequency response at ±3dB.

This makes the Control 16C/T suitable for spoken-word paging and general music playback. Systems requiring stronger low-frequency impact may benefit from a separate subwoofer.

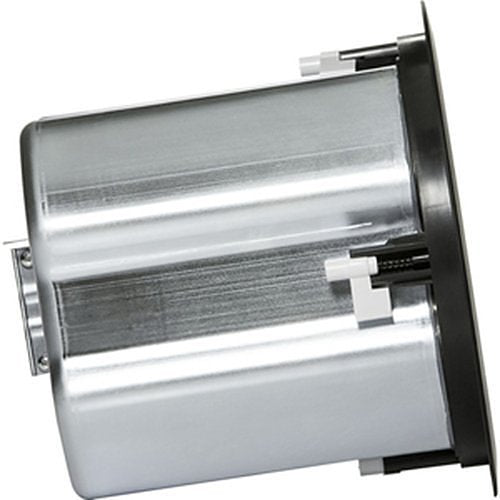

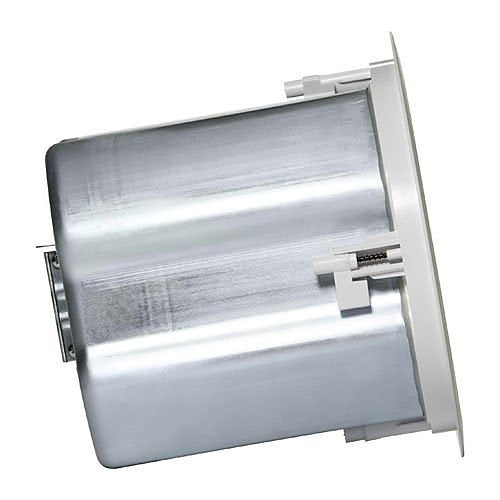

Integrated Backcan and Air-Handling Compatibility

The Control 16C/T includes a pre-attached zinc-plated steel backcan for blind-mount installation. The baffle uses flame-rated materials, and JBL lists the speaker for use in air-handling spaces under applicable UL and NFPA standards.

Always confirm local code requirements for the specific installation.

Included Tile Rails and C-Ring

JBL includes two tile-rail supports, one C-ring backing plate, a cutout template, paint shield, and grille with each speaker.

A safety seismic attachment point is also provided on the top of the backcan.

Removable Euroblock Connection with Loop-Through

The speaker uses a removable locking 4-pin connector with screw terminals for input and loop-through wiring. The connector accepts wire up to 12 AWG.

Dual strain reliefs support two cables or flex conduits. Use appropriately rated speaker wire for the amplifier type and cable length.

Dimensions and Installation

• Overall diameter: 10.0" (253 mm)
• Depth behind baffle: 8.8" (225 mm)
• Ceiling cutout: 8.8" diameter (223 mm)
• Supported ceiling thickness: Up to 1.5" with standard dogears

What's Included?

• 2 JBL Control 16C/T ceiling loudspeakers
• Integrated backcan on each speaker
• 2 tile rails per speaker
• 1 C-ring backing plate per speaker
• Cutout template
• Paint shield
• Grille

Amplifier and speaker wire are sold separately.

Complete Your Ceiling Audio System

• JBL Professional
• In-Wall & In-Ceiling Speakers
• Speaker Wire

Need Help Planning Your Ceiling Speaker System?

Send Bear Security Shop your room dimensions, ceiling height, speaker quantity, amplifier model, and whether you plan to use 70V, 100V, or 8-ohm operation. We can help confirm tap settings, amplifier power, and speaker spacing.

Are the JBL Control 16C/T speakers sold as a pair?

Yes. The package includes two JBL Control 16C/T ceiling speakers.

What size drivers does the Control 16C/T use?

Each speaker uses a 6.5" polypropylene low-frequency driver and a 0.75" treated silk-dome tweeter.

What is the power handling?

JBL specifies 50W continuous pink-noise power, 100W continuous program power, and 200W peak capability in low-impedance operation.

Does the Control 16C/T support 70V systems?

Yes. Available 70V taps are 3.8W, 7.5W, 15W, and 30W.

Does it support 100V systems?

Yes. Available 100V taps are 7.5W, 15W, and 30W.

Can I use the Control 16C/T with an 8-ohm amplifier or receiver?

Yes. The speaker can be switched to direct 8-ohm operation, bypassing the transformer.

What is the coverage pattern?

JBL specifies 110° conical coverage.

What is the frequency response?

JBL specifies 96Hz–15kHz at ±3dB, with a broader 62Hz–20kHz frequency range at -10dB.

What is the sensitivity?

The Control 16C/T is rated at 91dB sensitivity.

What is the maximum SPL?

JBL specifies 108dB average and 116dB peak SPL at 1 meter in low-impedance operation.

Does the Control 16C/T include a backcan?

Yes. Each speaker has an integrated zinc-plated steel blind-mount backcan.

Are tile rails and a C-ring included?

Yes. JBL includes two tile rails, one C-ring support plate, a cutout template, paint shield, and grille with each speaker.

What size ceiling cutout is required?

The required circular cutout is approximately 8.8" in diameter.
