Premium In-Ceiling Surround Sound Without Visible Wall Speakers
The Episode Signature SIG-78-ICSURR is a premium 8-inch in-ceiling surround speaker designed for home theaters and media rooms where you want immersive side or rear effects without placing speakers on the walls.
Its selectable bipole and dipole modes let you adjust how focused or diffuse the surround field feels, while the 8-inch honeycomb fiberglass woofer and dual 1-inch pure titanium tweeters provide wide coverage, detailed effects, and strong output across the seating area.
Best Use Cases
- Side surround channels: Creates broad surround coverage from the ceiling when wall-mounted speakers are not practical.
- Rear surround channels: Helps deliver effects behind the listening position in 5.1, 7.1, and larger home theater systems.
- Dedicated media rooms: A strong fit for premium theater systems that need higher output and wider coverage than a basic ceiling speaker.
- Open living rooms: Keeps the room visually clean while adding immersive surround effects around the seating area.
- Multi-row seating: The dual-tweeter design and wide listening angle help distribute surround information across a larger listening area.
- Retrofit installations: Useful when the ceiling offers a cleaner wiring path than the side or rear walls.
Bipole or Dipole: Which Mode Should You Use?
The SIG-78-ICSURR includes a surround-mode switch that lets you select bipole or dipole operation. The right setting depends on the room, speaker placement, seating position, and the type of surround presentation you prefer.
- Bipole mode: Generally provides a broader but more coherent surround presentation, with both tweeters working together. This is often a good starting point for modern multichannel systems and larger seating areas.
- Dipole mode: Creates a more diffuse, less localized surround field. This can work well when the speaker is close to the seating position or when you want surround effects to feel less directional.
After installation, compare both modes from the main seating position and use your AV receiver’s room correction and level calibration to finalize the setup.
Who Should Buy This?
This is a good choice if you are building a higher-performance home theater and want discreet ceiling-mounted surround speakers with more output, wider coverage, and greater room-tuning flexibility than a standard in-ceiling model.
It makes particular sense when wall placement is unavailable, visually undesirable, or too close to the seating position, and when the system benefits from selectable bipole or dipole surround reproduction.
Who Should Not Buy This?
This is not the best choice for a basic whole-home music zone or for reproducing stereo sound from one ceiling speaker. It is a single-channel surround speaker, not a dual-voice-coil stereo model.
For the main front left and right channels, use properly positioned front-stage speakers instead. A dedicated Episode in-wall, in-ceiling, or traditional home theater speaker will usually provide more accurate front imaging.
This speaker should also not automatically be used as a Dolby Atmos height speaker. Atmos speakers are typically selected and positioned for direct overhead effects, while this model is specifically designed to create broad bipole or dipole surround coverage. Confirm the intended channel assignment before installation.
It is not weather rated and should not be installed outdoors, in showers, or in locations exposed to moisture or condensation.
Compatibility and Technical Notes
- Product type: Premium in-ceiling bipole/dipole surround speaker.
- Sold as: One speaker.
- Woofer: 8-inch honeycomb fiberglass Nomex cone woofer.
- Tweeters: Dual 1-inch pure titanium dome tweeters.
- Surround adjustment: Selectable bipole or dipole operation.
- Tweeter adjustment: +2 dB, 0 dB, or –2 dB.
- Frequency response: 32Hz to 20kHz.
- Nominal impedance: 8 ohms.
- Power rating: 140W peak.
- Sensitivity: 91 dB.
- Crossover frequency: 2.2kHz.
- Listening angle: 110 degrees.

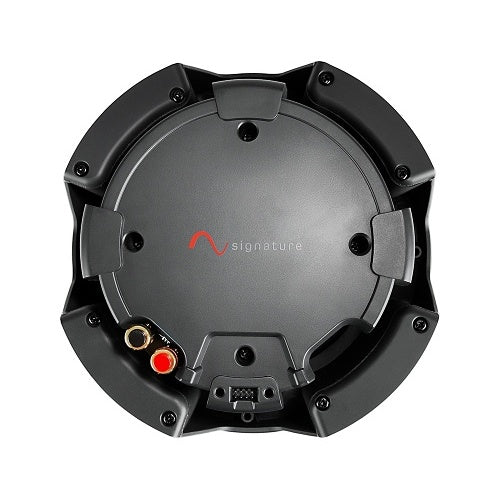

- Connections: Gold-plated push terminals.
- Finished diameter with grille: Approximately 11 inches.
- Cutout diameter: Approximately 9.7 inches.
- Mounting depth: Approximately 5.2 inches.
- Mounting depth with compatible enclosure: Approximately 6.6 inches.
- Weight: Approximately 5.3 lb.
- Clamping range: Supports substrates from approximately 3/8 inch through double 1/2-inch material.
- Recommended air volume: Approximately 40 to 45 liters behind the speaker.
- Weather resistance: Intended for dry indoor locations.
Amplifier and AV Receiver Matching
The speaker has an 8-ohm nominal impedance and a published 140W peak rating. Do not treat the peak figure as a continuous RMS amplifier recommendation.
Use a quality AV receiver or power amplifier that is stable with 8-ohm speakers and provides clean power at the listening levels required for the room. Avoid audible distortion, clipping, or unusually aggressive volume settings.
After installation, run the receiver’s room-calibration system and confirm speaker distance, level, crossover, and bass-management settings manually.
Placement Guidance
For side surrounds, place the speakers symmetrically to the left and right of the primary seating area. Depending on the room, they may be located slightly beside or just behind the listeners.
For rear surrounds, place them behind the main seating position with similar spacing and distance on both sides. Avoid locating one speaker much closer to the listeners than the other unless the receiver can properly compensate.
The ideal location depends on ceiling height, seat position, number of rows, front-speaker placement, and the overall channel layout. Plan every theater channel before cutting the ceiling.
Installation Considerations
Before making the cutout, confirm that there is enough room for the 9.7-inch opening, 5.2-inch speaker depth, mounting mechanism, wiring, and at least the recommended air volume behind the speaker.
Check carefully for joists, pipes, electrical wiring, HVAC ducts, lighting, and other hidden obstructions. Also confirm that both surround locations can be positioned symmetrically around the seating area.
Maintain correct speaker-wire polarity and connect each SIG-78-ICSURR to one assigned surround channel from the AV receiver or amplifier. This is not a dual-voice-coil speaker and should not receive separate left and right channels through one unit.

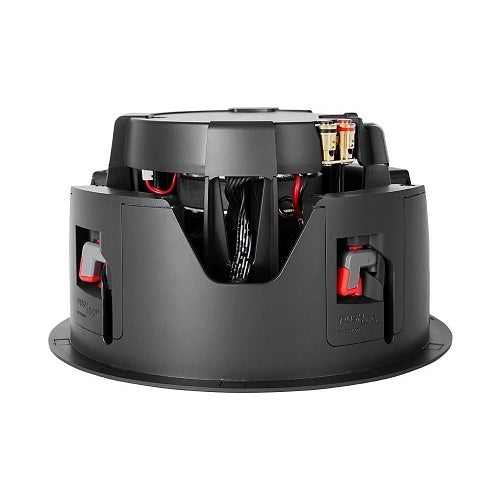

Push Lock by Swarm Installation
Episode’s Push Lock by Swarm system provides a tool-free mounting approach designed to make installation faster and more secure. The speaker can be installed as a complete one-step assembly or through a two-step process using the removable cradle.
The two-step method allows the cradle and optional enclosure to be installed during construction while the speaker core remains protected until the room is finished.
Optional Cradle and Enclosure
The speaker includes its Signature cradle, and an additional compatible cradle can be purchased separately when needed for staged construction or replacement.
The SIG-78-ICSURR is compatible with the SIG-CRADLE-IC-8 and the ESS-ENCL-IC-8 enclosure. The enclosure can help create a more consistent air volume, reduce sound transfer into adjacent spaces, and protect the speaker cavity from insulation and construction debris.
Does It Still Need a Subwoofer?
Yes, for a complete home theater system. Although the published response extends to 32Hz, an in-ceiling surround speaker is not intended to replace a dedicated subwoofer for deep movie effects.
Use the AV receiver’s bass management to route low-frequency effects and deeper bass to one or more properly sized subwoofers. The correct crossover should be determined through calibration and room measurements rather than relying only on the published frequency response.
Good Products to Pair With This Speaker
Need Help Planning Your Surround Layout?
If you are not sure whether this speaker fits your theater, send us the room dimensions, ceiling height, seating layout, AV receiver model, existing speakers, and planned channel configuration. We can help you determine speaker quantity, placement, bipole or dipole mode, amplifier compatibility, and supporting equipment before installation.
