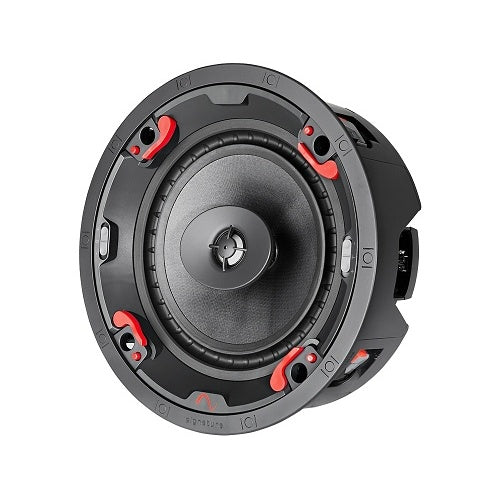

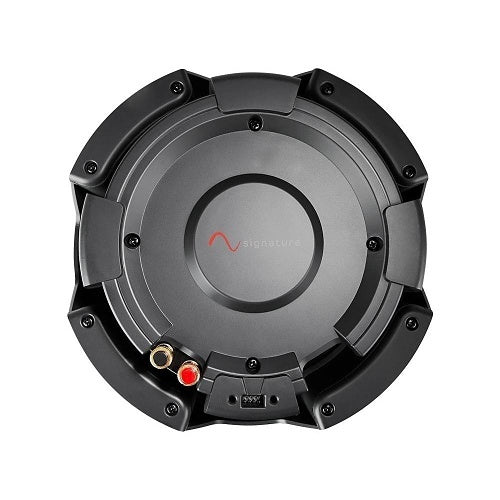

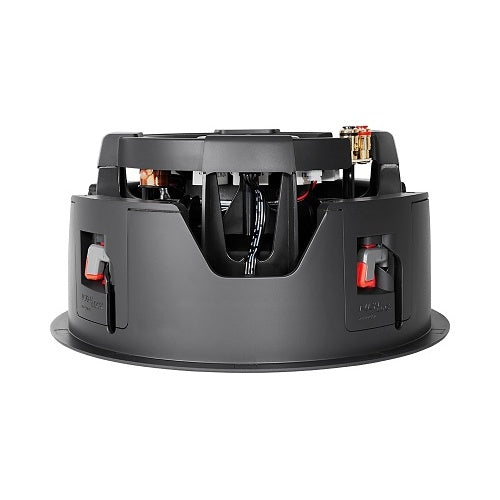

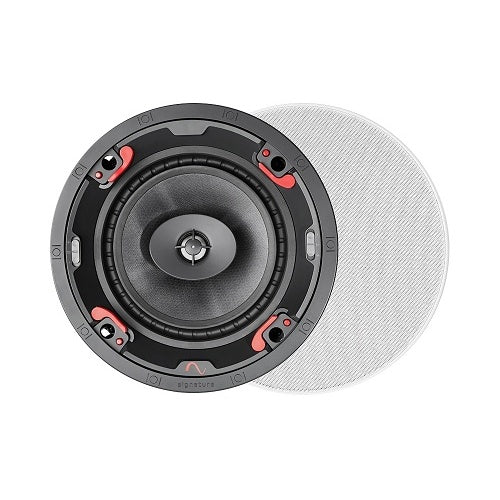

Episode Signature SIG-78-IC 8" In-Ceiling Premium Speaker

Premium In-Ceiling Performance for Music and Home Theater

The Episode SIG-78-IC is a premium 8-inch Signature 7 Series in-ceiling speaker designed for larger whole-home audio zones, media rooms, high-quality music systems, and properly planned home-theater channels.

It combines an 8-inch honeycomb fiberglass Nomex woofer with a 1-inch pure titanium dome tweeter, wide 110-degree coverage, independent tweeter and woofer compensation controls, and Episode’s Push Lock by Swarm mounting system.

Best Use Cases

• Larger whole-home audio zones: Provides greater output and bass extension than smaller architectural speakers in living rooms, kitchens, dining areas, and open floor plans.
• Premium music systems: A strong option when sound quality matters but visible bookshelf or floorstanding speakers are not desirable.
• Media rooms: Adds full-range architectural sound for television, movies, gaming, and music.
• Dolby Atmos height channels: Can serve as a direct-radiating overhead speaker when placement, receiver configuration, and room design are appropriate.
• Direct-radiating surrounds: May be used for side or rear channels when a standard direct-radiating speaker fits the theater layout.
• Multi-room systems: Pairs with compatible amplifiers and other Episode speakers for consistent audio across several rooms.

Who Should Buy This?

This is a strong choice if you want deeper bass, higher sensitivity, wider coverage, and greater output than a typical compact in-ceiling speaker.

It makes particular sense when you need premium driver materials, independent tweeter and woofer adjustments, discreet ceiling installation, and flexible one-step or staged construction options.

Who Should Not Buy This?

This is not the correct model when one ceiling location must reproduce both left and right stereo channels. Choose the separate SIG-58-ICDVC or another compatible dual-voice-coil model for that application.

It is also not a bipole/dipole surround speaker. Choose the SIG-78-ICSURR when you specifically need selectable bipole or dipole operation for a wider, more diffuse surround field.

For highly directional front-channel sound, consider a dedicated Episode point speaker, in-wall speaker, or LCR model. A conventional in-ceiling speaker may not provide the same front-stage localization as speakers positioned closer to the display.

This model does not include a 70V transformer or selectable transformer taps. Do not connect it directly to a commercial 70V or 100V amplifier.

No outdoor or moisture rating is published for this speaker. Install it only in dry indoor locations.

Sold Individually

The Episode SIG-78-IC is sold as one speaker. A conventional stereo listening zone normally requires two speakers, with one connected to the amplifier’s left channel and the other connected to its right channel.

Home-theater and multi-room systems may require additional speakers depending on the planned channel layout, room size, ceiling height, and desired listening level.

8-Inch Honeycomb Fiberglass Nomex Woofer

The SIG-78-IC uses an 8-inch honeycomb fiberglass Nomex cone woofer designed to combine low weight with high rigidity.

The larger driver provides more cone area and greater low-frequency capability than Episode’s 6-inch Signature 7 Series model. Episode publishes a frequency response extending down to 32Hz.

Actual bass performance depends on ceiling construction, cavity volume, optional enclosure use, room acoustics, speaker placement, and amplifier configuration.

1-Inch Pure Titanium Tweeter

The 1-inch pure titanium dome tweeter is designed to reproduce vocals, dialogue, instruments, and high-frequency detail with broad dispersion.

Episode’s vented tweeter-pod design allows a lower crossover point, helping improve dispersion and reduce the amount of upper-frequency content that must be reproduced by the woofer.

Independent Tweeter and Woofer Adjustments

The SIG-78-IC includes separate compensation controls for the tweeter and woofer. Each control provides +2 dB, 0 dB, and –2 dB settings.

Tweeter Adjustment

• +2 dB: Adds high-frequency output in heavily furnished rooms or when the speaker is farther from the listening area.
• 0 dB: Provides a neutral starting position for initial setup and calibration.
• –2 dB: Reduces high-frequency output in reflective rooms or when the speaker is close to the listeners.

Woofer Adjustment

• +2 dB: Adds supporting low-frequency output when the installation or room reduces bass response.
• 0 dB: Provides the standard neutral starting position.
• –2 dB: Reduces bass when ceiling placement or room boundaries create excessive low-frequency output.

Begin with both controls at 0 dB. Make final adjustments only after all speakers are installed and the system has been evaluated from the normal listening positions.

Wide 110-Degree Coverage

The published 110-degree listening angle helps distribute sound across a broad seating or listening area.

Wide dispersion is useful in living rooms, kitchens, media spaces, and open floor plans where listeners may not remain directly beneath the speaker.

Wide coverage does not eliminate the need for correct speaker quantity and placement. Ceiling height, room dimensions, seating positions, and required volume should still be considered before installation.

Amplifier and Receiver Compatibility

• Speaker type: Passive two-way standard in-ceiling speaker.
• Series: Episode Signature 7 Series.
• Sold as: One speaker.
• Nominal impedance: 8 ohms.
• Power rating: 160W peak.
• Sensitivity: 91 dB.
• Frequency response: 32Hz to 20kHz.
• Crossover frequency: 2.2kHz.
• Woofer: 8-inch honeycomb fiberglass Nomex cone.
• Tweeter: 1-inch pure titanium dome.
• Tweeter adjustment: +2 dB, 0 dB, or –2 dB.
• Woofer adjustment: +2 dB, 0 dB, or –2 dB.
• Listening angle: 110 degrees.
• Connections: Gold-plated push terminals.
• Internal amplifier: None; external amplification is required.
• 70V compatibility: No built-in transformer or selectable taps.

Use an amplifier or AV receiver that supports passive 8-ohm speakers. The published 160W specification is a peak rating and should not be presented as a 160W RMS amplifier recommendation.

Clean amplification, correct impedance support, appropriate crossover settings, proper wiring, and avoiding audible distortion are more important than matching an amplifier’s advertised maximum wattage directly to the speaker’s peak rating.

Using the SIG-78-IC for Stereo Music

For conventional stereo listening, install one speaker to the left and one to the right of the primary listening area. Keep both speakers at similar distances and positions whenever the ceiling layout allows.

Begin with the tweeter and woofer controls at 0 dB. Make small adjustments after listening to familiar music from the normal seating position.

For larger or unusually shaped rooms, additional speakers operating at moderate volume may provide more consistent coverage than one pair playing at very high volume.

Using It for Dolby Atmos

The SIG-78-IC can be used as a direct-radiating Dolby Atmos height speaker when the room, ceiling height, seating layout, receiver, and channel configuration are appropriate.

Atmos placement should follow the receiver or processor manufacturer’s recommended angles relative to the primary seating position. Confirm the complete theater layout before making ceiling cutouts.

The speaker’s broad coverage can help serve multiple seats, but an 8-inch speaker may be more output capability than some small rooms require.

Using It as a Surround Speaker

The SIG-78-IC may be used as a standard direct-radiating side or rear surround channel when ceiling placement is required.

It does not offer selectable bipole or dipole operation. Choose the SIG-78-ICSURR when a more diffuse surround presentation is specifically required.

Installation Dimensions

• Finished diameter with grille: Approximately 11 inches.
• Ceiling cutout diameter: Approximately 9.7 inches.
• Mounting depth without enclosure: Approximately 5.2 inches.
• Mounting depth with compatible enclosure: Approximately 6.6 inches.
• Weight: Approximately 6.1 lb.
• Clamping range: Approximately 3/8-inch through double 1/2-inch ceiling material.
• Recommended open air volume: Approximately 40 to 45 liters behind the speaker.

Before Cutting the Ceiling

Confirm the full 9.7-inch cutout and check for joists, electrical wiring, plumbing, HVAC ducts, recessed lighting, fire blocking, insulation, and other hidden obstructions.

Allow sufficient space for the 5.2-inch speaker depth, wire connections, cable bend radius, mounting dogs, and recommended cavity volume.

Verify every speaker location before cutting so the final arrangement remains visually balanced and acoustically appropriate for the listening area.

Push Lock by Swarm Installation

Episode’s Push Lock by Swarm system uses spring-loaded mounting dogs that engage when the front buttons are pressed.

Once engaged, the dogs hold the speaker in the ceiling while the installer completes final positioning. They can be tightened by up to approximately 6mm when additional clamping pressure is needed for textured, uneven, or layered ceiling material.

Only tighten each mounting dog after it has fully engaged behind the ceiling. Excessive tightening can damage the speaker frame or ceiling material.

One-Step or Staged Two-Step Installation

The SIG-78-IC can be installed as a complete assembled speaker in one step.

For staged construction, the speaker core can be removed and the included cradle installed first. Wiring, the protective cover, and an optional enclosure can be completed while the speaker core remains protected from paint, dust, sanding, insulation, and construction debris.

The speaker core can then be installed after the ceiling and surrounding construction work are finished.

Included Cradle and Optional Enclosure

The compatible Signature cradle is included with the speaker. The separate SIG-CRADLE-IC-8 is only needed for advance installation, replacement, or a project requiring an additional cradle.

The compatible ESS-ENCL-IC-8 enclosure is optional and sold separately. It can provide a more predictable acoustic volume, help reduce sound transfer into the room above, and keep insulation or construction debris away from the speaker.

When the enclosure is used, allow approximately 6.6 inches of total mounting depth.

Grille and Flush-Mount Options

The standard speaker uses a thin-bezel magnetic grille that can be painted to better match the ceiling.

A true flush-mount installation requires the appropriate optional Episode flush-mount bracket. This accessory is sold separately and should be planned before the ceiling finish is completed.

Do not paint the woofer, tweeter, adjustment controls, terminals, or mounting mechanism. When painting the grille, avoid blocking its perforations.

Does It Need a Subwoofer?

A subwoofer may be optional for whole-home music or everyday listening, particularly when the speaker is installed in a favorable ceiling cavity and operated at moderate volume.

For home theater, bass-heavy music, or systems requiring strong low-frequency effects, a dedicated subwoofer is still recommended. The subwoofer can handle the deepest frequencies while allowing the ceiling speakers to focus on vocals, instruments, and directional content.

When to Choose Another Episode Model

Choose the SIG-76-IC when a smaller 6-inch speaker provides enough output and the project has less ceiling space or mounting depth.

Choose the SIG-78-ICSURR when you need selectable bipole or dipole surround operation.

Choose a DVC model when one ceiling location must reproduce both left and right stereo channels.

Choose an Episode point speaker when the system needs a more directional angled driver assembly.

Choose a 70V Episode speaker when the project uses constant-voltage amplification or requires many speakers across long cable runs.

Good Products to Pair With This Speaker

• In-Wall & In-Ceiling Speakers to compare additional architectural speaker sizes and applications.
• Episode Speakers for matching front, center, surround, outdoor, and subwoofer models.
• Amplifiers for compatible stereo, home-theater, and multi-zone amplification.
• Speaker Wires for properly rated in-wall speaker cable.
• Subwoofers for deeper bass in music and home-theater systems.
• Power Management Solutions to protect receivers, amplifiers, source equipment, and control systems.

Need Help Planning Your Speaker Layout?

Send us the room dimensions, ceiling height, available speaker locations, amplifier or receiver model, and intended use. We can help determine speaker quantity, placement, amplifier compatibility, and whether the SIG-78-IC or another Episode model is the better fit.

Is the Episode SIG-78-IC sold individually or as a pair?

It is sold individually. A conventional stereo listening zone normally requires two speakers.

Is this a powered speaker?

No. It is a passive in-ceiling speaker that requires speaker wire and a compatible amplifier or AV receiver.

Does it include Bluetooth or Wi-Fi?

No. Bluetooth, Wi-Fi, streaming, and app control must come from the connected receiver, amplifier, or audio source.

Is the SIG-78-IC a standard or dual-voice-coil speaker?

It is a standard single-channel speaker. One SIG-78-IC connects to one amplifier channel.

Can one speaker reproduce both left and right stereo channels?

No. Use two speakers for conventional stereo or choose a dedicated dual-voice-coil model when only one physical speaker location is available.

Is this the bipole/dipole surround version?

No. The SIG-78-IC is a standard direct-radiating speaker. The separate SIG-78-ICSURR provides selectable bipole and dipole surround operation.

What is the nominal impedance?

The speaker has an 8-ohm nominal impedance.

What is the correct power rating?

The official specification lists 160W peak power. It should not be described as a 160W RMS speaker.

What is the frequency response?

The published frequency response is 32Hz to 20kHz.

What is the sensitivity?

The published sensitivity is 91 dB.

What size woofer does it use?

It uses an 8-inch honeycomb fiberglass Nomex cone woofer.

What type of tweeter does it use?

It uses a 1-inch pure titanium dome tweeter.

Does the tweeter pivot or aim?

The official documentation emphasizes the vented tweeter-pod design and wide dispersion rather than identifying this model as having a manually pivoting tweeter.

What do the tweeter and woofer switches control?

Separate controls provide +2 dB, 0 dB, and –2 dB adjustment for the high-frequency and low-frequency output.

What is the listening angle?

The official published listening angle is 110 degrees.

Can it be used for Dolby Atmos?

Yes, it can be used as a direct-radiating overhead channel when the receiver, ceiling height, speaker location, seating layout, and required output are appropriate.

Can it be used as a surround speaker?

Yes. It can serve as a standard direct-radiating side or rear surround speaker. It does not provide bipole or dipole operation.

Can it be used as a front left or right speaker?

It can be used for in-ceiling front channels when the system design requires ceiling placement. A dedicated in-wall, point, or LCR speaker may provide more precise front-stage localization.

Can it connect to a 70V amplifier?

No. It does not include a 70V transformer or selectable transformer taps. Use an appropriate constant-voltage speaker for 70V or 100V systems.

Does it need a subwoofer?

A subwoofer may be optional for moderate music listening, but it is recommended for home theater, bass-heavy music, and systems requiring deeper low-frequency effects.

What ceiling cutout is required?

The required cutout diameter is approximately 9.7 inches.

What is the finished diameter?

The finished diameter with the standard grille installed is approximately 11 inches.

How much mounting depth is required?

Allow approximately 5.2 inches without an enclosure and approximately 6.6 inches with the compatible enclosure.

How much airspace is recommended?

Episode recommends approximately 40 to 45 liters of open air volume behind the speaker when an enclosure is not used.

What ceiling thickness can the mounting system support?

The published clamping range is approximately 3/8-inch through double 1/2-inch ceiling material.

How much does the speaker weigh?

The speaker weighs approximately 6.1 lb.

Does it include the Signature cradle?

Yes. The compatible Signature cradle is included with the speaker. The speaker core can be removed for staged construction.

Which additional cradle is compatible?

The compatible replacement or advance-installation cradle is the SIG-CRADLE-IC-8.

Is the enclosure included?

No. The compatible ESS-ENCL-IC-8 enclosure is optional and sold separately.

What does the optional enclosure do?

It provides a more predictable acoustic volume, helps reduce sound transfer into adjacent spaces, and keeps insulation or construction debris away from the speaker.

Is a true flush-mount bracket included?

No. The standard installation uses a thin-bezel magnetic grille. A dedicated flush-mount installation requires the appropriate optional Episode bracket.

Can the grille be painted?

Yes. The magnetic grille can be painted when prepared according to Episode’s instructions. Avoid blocking the grille perforations.

Can it be installed outdoors or in a shower?

No outdoor or moisture rating is published for this model. Install it only in dry indoor locations.

What should I check before ordering?

Check speaker quantity, amplifier compatibility, ceiling cutout, mounting depth, joist locations, available cavity volume, wire routing, intended channel use, and whether an optional enclosure or construction accessory is required.
