Episode Signature SIG-76-POINT 6" In-Ceiling Point Speaker

Directional In-Ceiling Sound for More Precise Speaker Placement

The Episode SIG-76-POINT is a premium 6-inch Signature 7 Series in-ceiling point speaker designed for rooms where the speaker cannot be positioned directly above or directly in front of the primary listening area.

Its 15-degree angled design directs sound toward the listeners instead of firing straight down. A 6-inch honeycomb fiberglass Nomex woofer, 3/4-inch pure titanium tweeter, independent woofer and tweeter adjustments, and wide published coverage make it suitable for home theaters, media rooms, premium music systems, and challenging architectural layouts.

Best Use Cases

• In-ceiling front left and right channels: Directs sound toward the screen and seating area when wall-mounted or freestanding speakers are not practical.
• Home-theater height channels: Can aim overhead effects toward the listening position when the complete Dolby Atmos layout is properly planned.
• Media rooms: Provides more focused television, movie, gaming, and music playback than a standard downward-firing ceiling speaker.
• Off-center ceiling locations: Helps compensate when joists, lighting, HVAC vents, or other obstructions prevent ideal speaker placement.
• High or vaulted ceilings: The angled design can help direct sound toward the seating area rather than sending it straight down into an unused part of the room.
• Premium whole-home audio: Useful in larger living rooms and open spaces where the listening area is not directly beneath the speaker.
• Direct-radiating surrounds: May serve as a directional side or rear channel when ceiling placement is required and a focused presentation is preferred.

What Makes a Point Speaker Different?

A standard in-ceiling speaker normally directs most of its output downward. That works well when listeners are positioned beneath the speaker, but it can reduce clarity and soundstage precision when the speaker must be installed away from the ideal location.

The SIG-76-POINT uses a 15-degree angled speaker assembly to direct its output toward the intended listening area. This makes it especially useful for front-channel, height-channel, and off-axis ceiling installations.

Who Should Buy This?

This is a strong choice if your ceiling layout prevents a standard speaker from being positioned directly over the listening area or if the system needs more directional sound than a conventional downward-firing in-ceiling speaker provides.

It makes particular sense when you need premium driver materials, broad coverage, independent high- and low-frequency tuning, shallow architectural installation, and flexible one-step or staged construction options.

Who Should Not Buy This?

This is not the correct model when one speaker location must reproduce both left and right stereo channels. The SIG-76-POINT is a standard single-channel speaker, not a dual-voice-coil model.

It is also not a bipole or dipole surround speaker. Choose the SIG-76-ICSURR or SIG-78-ICSURR when the theater requires a wider, more diffuse surround field.

For a simple background-music zone where listeners are positioned directly beneath the speakers, a standard SIG-76-IC may be easier to place and more economical.

This model does not include a 70V transformer or selectable transformer taps. Do not connect it directly to a commercial 70V or 100V distributed-audio amplifier.

No outdoor or moisture rating is published for this speaker. Install it only in dry indoor locations.

Sold Individually

The Episode SIG-76-POINT is sold as one speaker. A conventional stereo installation normally requires two speakers, with one connected to the amplifier’s left channel and the other connected to its right channel.

Home-theater systems may require several speakers depending on the front-stage, surround, rear-surround, and height-channel layout.

15-Degree Angled Speaker Design

The point-speaker assembly is angled approximately 15 degrees to direct sound toward a selected listening area.

Before securing the speaker, orient the angled assembly toward the primary seats or screen location. When no enclosure is used, the speaker may be installed in different rotational orientations to match the desired direction.

When the compatible enclosure is used, follow the required cradle and quick-connect alignment rather than forcing the speaker into a different orientation.

6-Inch Honeycomb Fiberglass Nomex Woofer

The SIG-76-POINT uses a 6-inch honeycomb fiberglass Nomex cone woofer designed to combine low weight, rigidity, and controlled excursion.

Episode publishes a frequency response of 41Hz to 20kHz, giving the speaker useful midbass extension for music, dialogue, television audio, and home-theater effects.

Actual bass performance depends on ceiling construction, cavity volume, use of the optional enclosure, room acoustics, speaker placement, crossover settings, and whether the system includes a subwoofer.

Pure Titanium Tweeter

The official specification table identifies a 3/4-inch pure titanium dome tweeter. The tweeter works with the angled speaker design to direct high-frequency detail toward the listening position.

Because high frequencies are more directional than bass, correctly orienting the point speaker can improve dialogue clarity, imaging, and perceived detail when the speaker is installed away from the ideal listening axis.

Independent Tweeter and Woofer Adjustments

The SIG-76-POINT includes separate compensation controls for the tweeter and woofer. Each control provides +2 dB, 0 dB, and –2 dB settings.

Tweeter Adjustment

• +2 dB: Adds high-frequency output when the speaker is farther from the listeners or the room contains sound-absorbing materials.
• 0 dB: Provides the recommended neutral starting position.
• –2 dB: Reduces high-frequency output in reflective rooms or when the speaker is close to the listening position.

Woofer Adjustment

• +2 dB: Adds supporting low-frequency output when the installation or room reduces bass response.
• 0 dB: Provides the neutral starting position.
• –2 dB: Reduces excessive bass caused by room boundaries or ceiling placement.

Begin with both controls set to 0 dB. Make final adjustments after all speakers are installed and the system has been calibrated from the normal listening positions.

Amplifier and Receiver Compatibility

• Speaker type: Passive directional in-ceiling point speaker.
• Series: Episode Signature 7 Series.
• Sold as: One speaker.
• Nominal impedance: 8 ohms.
• Power rating: 140W peak.
• Sensitivity: 90 dB.
• Frequency response: 41Hz to 20kHz.
• Crossover frequency: 2.35kHz.
• Woofer: 6-inch honeycomb fiberglass Nomex cone.
• Tweeter: 3/4-inch pure titanium dome.
• Speaker angle: Approximately 15 degrees.
• Tweeter adjustment: +2 dB, 0 dB, or –2 dB.
• Woofer adjustment: +2 dB, 0 dB, or –2 dB.
• Published listening angle: 120 degrees.

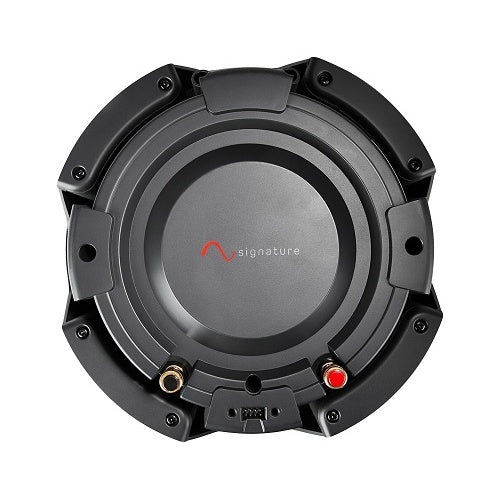

• Connections: Gold-plated push terminals.
• Internal amplifier: None; external amplification is required.
• 70V compatibility: No built-in transformer or selectable taps.

Use an amplifier or AV receiver that supports passive 8-ohm speakers. The published 140W figure is a peak rating and should not be presented as a 140W RMS amplifier recommendation.

Clean amplification, correct impedance support, appropriate crossover settings, proper wiring, and avoiding audible distortion are more important than matching an amplifier’s maximum advertised wattage directly to the speaker’s peak rating.

Using the SIG-76-POINT for Front Channels

The angled design can make the SIG-76-POINT useful as an in-ceiling front left or right speaker when wall or floor placement is unavailable.

Orient each speaker toward the primary listening position and keep the left and right speakers reasonably symmetrical around the television or projection screen.

For the most precise dialogue localization, a dedicated center or LCR speaker placed closer to the display is still recommended when the room allows it.

Using It for Dolby Atmos

The SIG-76-POINT can reproduce a Dolby Atmos height channel when its directional angle, ceiling location, seating layout, and receiver configuration match the planned theater design.

Do not automatically aim every height speaker toward the same point without reviewing the receiver or processor manufacturer’s recommended placement angles.

In some layouts, a standard direct-radiating in-ceiling speaker may be more appropriate. In others, the angled point design can improve coverage when the speaker must be installed outside the ideal overhead location.

Using It for Whole-Home Audio

For premium music systems, aim the speakers toward the primary seating, dining, or activity area rather than simply placing them in the geometric center of the room.

In larger or irregularly shaped spaces, several speakers operating at moderate volume may provide more consistent coverage than one pair playing at very high volume.

Installation Dimensions

• Finished diameter with grille: Approximately 11 inches.
• Ceiling cutout diameter: Approximately 9.7 inches.
• Mounting depth without enclosure: Approximately 5.2 inches.
• Mounting depth with compatible enclosure: Approximately 6.6 inches.
• Weight: Approximately 5.2 lb.
• Clamping range: Approximately 3/8-inch through double 1/2-inch ceiling material.
• Recommended open air volume: Approximately 15 to 20 liters behind the speaker.

Important 8-Inch Cutout Requirement

Although the SIG-76-POINT uses a 6-inch woofer, its angled point-speaker assembly requires the larger 8-inch architectural footprint.

Plan for a 9.7-inch cutout and an approximately 11-inch finished grille diameter. Do not use the standard 6-inch Signature cutout dimensions for this model.

Before Cutting the Ceiling

Confirm the full 9.7-inch cutout and check for joists, wiring, plumbing, HVAC ducts, recessed lighting, fire blocking, insulation, and other hidden obstructions.

Allow enough space for the 5.2-inch speaker depth, angled assembly, wiring, cable bend radius, mounting dogs, and recommended cavity volume.

Confirm the intended aiming direction before cutting. The speaker should point toward the listening area rather than toward a wall, doorway, or unused part of the room.

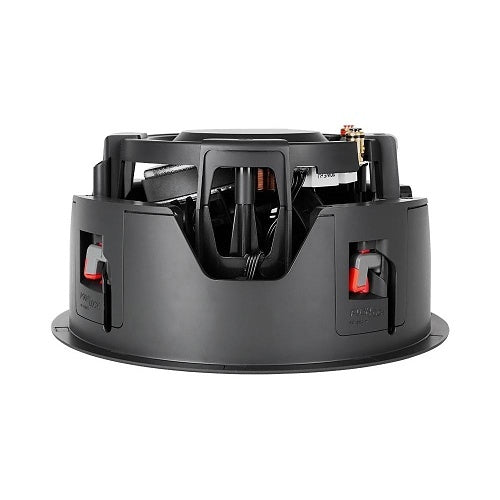

Push Lock by Swarm Installation

Episode’s Push Lock by Swarm system uses spring-loaded mounting dogs that engage when the front buttons are pressed.

Once engaged, the dogs hold the speaker in the ceiling while the installer completes orientation and final tightening. The dogs can be cinched by up to approximately 6mm when additional pressure is required for uneven or layered ceiling material.

Only tighten a mounting dog after it has fully engaged behind the ceiling. Excessive tightening can damage the speaker frame or ceiling surface.

One-Step or Staged Two-Step Installation

The SIG-76-POINT ships as an assembled speaker-and-cradle system for a straightforward one-step installation.

For staged construction, the speaker core can be removed and the included cradle installed first. Wiring, the protective cover, and an optional enclosure can be completed while the speaker remains protected from paint, sanding dust, insulation, and construction debris.

The speaker core can then be installed after the ceiling finish and surrounding construction work are complete.

Included Cradle and Optional Accessories

• Included cradle: Compatible 8-inch-size Signature cradle.
• Additional cradle: SIG-CRADLE-IC-8, sold separately for advance installation or replacement.
• Compatible enclosure: ESS-ENCL-IC-8, optional and sold separately.
• Pre-construction bracket: ES-ESS-BRKT-IC-8, optional and sold separately.
• Flush-mount solution: Requires the appropriate optional Episode construction bracket or grille system.

The compatible enclosure can provide a more predictable acoustic volume, reduce sound transfer into the room above, and keep insulation or construction debris away from the speaker.

Grille and Finish

The standard speaker uses a thin-bezel magnetic grille that can be painted to better match the ceiling.

A true flush-mount installation requires the appropriate optional bracket and should be planned before the finished ceiling is completed.

Do not paint the woofer, tweeter, adjustment controls, terminals, mounting system, or internal speaker components. Avoid blocking the grille perforations when painting.

Does It Need a Subwoofer?

A subwoofer may be optional for ordinary music listening, particularly when the speaker is installed in a suitable ceiling cavity and operated at moderate volume.

For home theater, bass-heavy music, or systems requiring strong low-frequency effects, a dedicated subwoofer is recommended. The subwoofer handles the deepest frequencies while the point speakers focus on dialogue, music, and directional content.

When to Choose Another Episode Model

Choose the SIG-76-IC when a standard downward-firing speaker is correctly positioned over the listening area and directional angling is not required.

Choose the SIG-78-IC when you need an 8-inch woofer, greater bass extension, and higher output from a standard in-ceiling speaker.

Choose the SIG-76-ICSURR or SIG-78-ICSURR when you need selectable bipole or dipole surround operation.

Choose a DVC model when one ceiling location must reproduce both left and right stereo channels.

Choose an in-wall or LCR model when accurate front-stage localization near the display is more important than ceiling placement.

Good Products to Pair With This Speaker

• In-Wall & In-Ceiling Speakers to compare additional architectural speaker sizes and applications.
• Episode Speakers for matching front, center, surround, outdoor, and subwoofer models.
• Amplifiers for compatible stereo, home-theater, and multi-zone amplification.
• Speaker Wires for properly rated in-wall speaker cable.
• Subwoofers for deeper bass in music and home-theater systems.
• Power Management Solutions to protect receivers, amplifiers, source equipment, and control systems.

Need Help Planning Your Speaker Layout?

Send us the room dimensions, ceiling height, listening position, available speaker locations, amplifier or receiver model, and intended channel use. We can help determine speaker quantity, aiming direction, amplifier compatibility, and whether the SIG-76-POINT or another Episode model is the better fit.

What is the Episode SIG-76-POINT designed for?

It is a directional in-ceiling speaker designed to aim sound toward a listening area when a standard downward-firing ceiling speaker cannot be positioned ideally.

How is a point speaker different from a standard in-ceiling speaker?

The SIG-76-POINT uses a 15-degree angled speaker design. A standard in-ceiling speaker normally fires straight down, while the point speaker directs more of its output toward the selected listening area.

Is the Episode SIG-76-POINT sold individually or as a pair?

It is sold individually. A conventional stereo installation normally requires two speakers.

Is it a powered speaker?

No. It is a passive speaker that requires speaker wire and a compatible amplifier or AV receiver.

Does it include Bluetooth or Wi-Fi?

No. Bluetooth, Wi-Fi, streaming, and app control must come from the connected amplifier, receiver, or source equipment.

Is it a dual-voice-coil speaker?

No. It is a standard single-channel speaker. One SIG-76-POINT connects to one amplifier channel.

Can one speaker reproduce both left and right stereo channels?

No. Use two speakers for conventional stereo or choose a dedicated DVC model when only one physical speaker location is available.

Is this the bipole/dipole surround version?

No. The SIG-76-POINT is a directional point speaker. Choose a compatible Episode ICSURR model for selectable bipole or dipole surround operation.

What is the speaker angle?

The point-speaker design is angled approximately 15 degrees to direct sound toward the intended listening area.

Can the direction be changed?

The speaker can be oriented during installation so the angled assembly points toward the listening area. When a compatible enclosure is used, follow the required quick-connect and cradle alignment.

What size woofer does it use?

It uses a 6-inch honeycomb fiberglass Nomex cone woofer.

What type of tweeter does it use?

The official specification table lists one 3/4-inch pure titanium dome tweeter.

Does it have dual tweeters?

The manufacturer’s marketing page contains conflicting language, but the official specification table and product image indicate a single 3/4-inch pure titanium dome tweeter. The single-tweeter specification is the safer description to use.

What is the nominal impedance?

The speaker has an 8-ohm nominal impedance.

What is the correct power rating?

The official specification lists 140W peak power. It should not be described as a 140W RMS speaker.

What is the frequency response?

The published frequency response is 41Hz to 20kHz.

What is the sensitivity?

The published sensitivity is 90 dB.

What is the crossover frequency?

The published crossover frequency is 2.35kHz.

What do the woofer and tweeter switches control?

Separate controls provide +2 dB, 0 dB, and –2 dB adjustment for low-frequency and high-frequency output.

What is the published listening angle?

The official specification lists a 120-degree listening angle.

Can it be used for Dolby Atmos?

Yes, when its angled output, ceiling position, seating layout, receiver configuration, and the complete Atmos design are appropriate.

Can it be used as a front left or right speaker?

Yes. Its angled design can help direct front-channel sound toward the seating area when in-wall or freestanding speakers are not practical.

Can it be used as a center channel?

It can reproduce a center channel, but a dedicated LCR speaker positioned closer to the display generally provides more precise dialogue localization.

Can it be used as a surround speaker?

Yes. It can serve as a direct-radiating directional surround speaker, but it does not provide bipole or dipole operation.

Can it connect to a 70V amplifier?

No. It does not include a 70V transformer or selectable transformer taps.

Does it need a subwoofer?

A subwoofer may be optional for moderate music playback but is recommended for home theater, bass-heavy music, and systems requiring deeper low-frequency effects.

Why does a 6-inch speaker require a 9.7-inch cutout?

The angled point-speaker assembly uses the larger 8-inch architectural frame and accessory platform. Plan for a 9.7-inch cutout rather than the standard 6-inch Signature cutout.

What ceiling cutout is required?

The required cutout diameter is approximately 9.7 inches.

What is the finished diameter?

The finished diameter with the standard grille installed is approximately 11 inches.

How much mounting depth is required?

Allow approximately 5.2 inches without an enclosure and approximately 6.6 inches with the compatible enclosure.

How much airspace is recommended?

Episode recommends approximately 15 to 20 liters of open air volume behind the speaker when an enclosure is not used.

What ceiling thickness can the mounting system support?

The published clamping range is approximately 3/8-inch through double 1/2-inch ceiling material.

How much does the speaker weigh?

The speaker weighs approximately 5.2 lb.

Does it include the mounting cradle?

Yes. The speaker ships as an assembled speaker-and-cradle system and can be separated for staged installation.

Which additional cradle is compatible?

The compatible replacement or advance-installation cradle is the SIG-CRADLE-IC-8.

Which enclosure is compatible?

The compatible enclosure is the ESS-ENCL-IC-8, sold separately.

Which pre-construction bracket is compatible?

The SIG-76-POINT requires the 8-inch-size ES-ESS-BRKT-IC-8 bracket, sold separately.

Is a true flush-mount bracket included?

No. The standard speaker uses a thin-bezel magnetic grille. A true flush-mount installation requires the appropriate optional Episode construction accessory.

Can the grille be painted?

Yes. The magnetic grille can be painted when prepared according to Episode’s instructions. Avoid blocking the grille perforations.

Can it be installed outdoors or in a shower?

No outdoor or moisture rating is published for this model. Install it only in dry indoor locations.

What should I check before ordering?

Check speaker quantity, aiming direction, amplifier compatibility, 9.7-inch cutout, 5.2-inch mounting depth, joist locations, cavity volume, wire routing, intended channel use, and whether an enclosure or pre-construction bracket is required.
