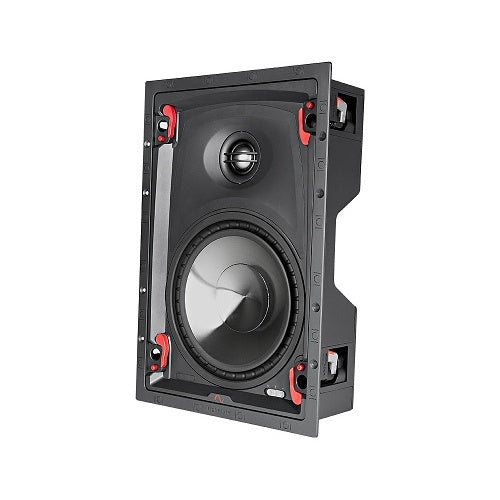

Episode Signature SIG-58-IW In-Wall 8 Inch Audio Speaker

Fuller Architectural Sound for Larger Rooms

The Episode SIG-58-IW is a premium 8-inch Signature 5 Series in-wall speaker designed for larger stereo rooms, open living spaces, media rooms, distributed-audio systems, and properly planned home-theater channels.

It combines an 8-inch titanium-coated polypropylene woofer with an adjustable 1-inch titanium-coated silk-dome tweeter, broad 100-degree horizontal by 90-degree vertical coverage, selectable tweeter output, and Episode’s Push Lock by Swarm mounting system.

Best Use Cases

• Larger living-room stereo systems: Provides fuller sound and stronger bass than a smaller architectural speaker without placing visible cabinets in the room.
• TV and media rooms: Works as a discreet left or right speaker beside a television or projection screen.
• Open-concept spaces: The larger woofer and broad coverage are useful when one speaker pair must cover a wider listening area.
• Whole-home audio: Delivers higher output and deeper bass for larger residential music zones.
• Direct-radiating surrounds: Can serve as a side or rear surround speaker when a standard direct-radiating design fits the theater plan.
• Low-impedance commercial audio: May be used in suitable offices, conference rooms, hospitality spaces, and similar projects with compatible conventional amplification.

Who Should Buy This?

This is a strong choice if you want more bass extension and output than a 4-inch or 6-inch in-wall speaker while maintaining a clean architectural finish.

It makes particular sense when you need an adjustable tweeter, broad coverage, selectable high-frequency output, shallow wall depth, and flexible one-step or staged installation.

Who Should Not Buy This?

This is not the correct model when one wall location must reproduce both left and right stereo channels. Choose a dedicated dual-voice-coil speaker for that application.

It is also not a selectable bipole/dipole surround speaker. Choose an Episode IWSURR model when you want a wider and more diffuse side- or rear-surround presentation.

For a center channel or horizontal front-stage position, use a dedicated Episode LCR model rather than rotating this standard vertical speaker sideways.

This speaker does not include a 70V or 100V transformer. Do not connect it directly to a constant-voltage distributed-audio amplifier.

No outdoor or moisture rating is published for this model. Install it only in dry indoor locations.

Sold Individually

The Episode SIG-58-IW is sold as one speaker. A conventional stereo installation normally requires two speakers, with one connected to the amplifier’s left channel and the other connected to its right channel.

A multichannel home-theater system may require additional speakers depending on the planned front, side-surround, and rear-surround layout.

8-Inch Titanium-Coated Polypropylene Woofer

The SIG-58-IW uses an 8-inch polypropylene cone woofer with vacuum-deposited titanium. The larger driver provides greater cone area and stronger low-frequency capability than the smaller SIG-56-IW.

Episode publishes a frequency response of 36Hz to 20kHz, making this model suitable for music, television audio, and home-theater systems that benefit from fuller architectural sound.

Actual in-room bass performance will depend on wall construction, cavity volume, use of an enclosure, speaker placement, room acoustics, amplifier settings, and whether a subwoofer is included.

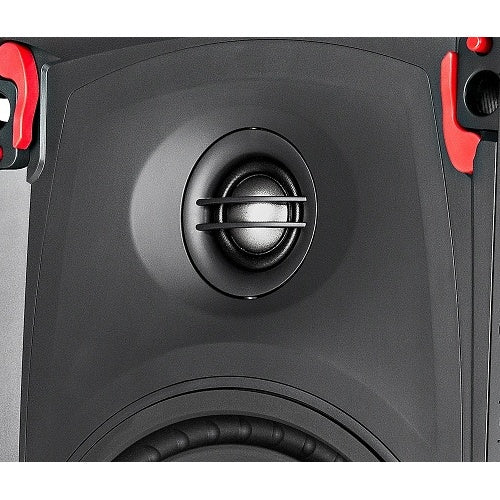

Adjustable 1-Inch Titanium-Coated Tweeter

The adjustable 1-inch silk-dome tweeter uses vacuum-deposited titanium and can be directed toward the primary listening area.

This is useful when studs, windows, furniture, displays, doors, or other architectural restrictions prevent the speaker from being installed directly in front of the listeners.

Aim the tweeter carefully and do not force it beyond its intended adjustment range.

Tweeter Compensation

A three-position tweeter adjustment provides +2 dB, 0 dB, or –2 dB output for matching the speaker to its wall position and room acoustics.

• +2 dB: Adds high-frequency output in heavily furnished rooms or when the speaker is farther from the listening area.
• 0 dB: Provides a neutral starting point for setup and calibration.
• –2 dB: Reduces high-frequency output in reflective rooms or when the speaker is close to the listeners.

Begin at 0 dB and make final adjustments after both speakers are installed and heard from the normal listening positions.

Wide 100° × 90° Coverage

The published coverage pattern is approximately 100 degrees horizontally by 90 degrees vertically. This helps distribute sound across a wider seating or listening area than a highly directional speaker.

Broad dispersion is useful in larger living rooms, media spaces, open floor plans, and distributed-audio zones where listeners may not remain in one exact position.

Coverage still depends on speaker height, spacing, orientation, furniture, and room geometry. Plan the full speaker layout before making wall cutouts.

Amplifier and Receiver Compatibility

• Speaker type: Passive two-way standard in-wall speaker.
• Series: Episode Signature 5 Series.
• Sold as: One speaker.
• Nominal impedance: 8 ohms.
• Power rating: 130W peak.
• Sensitivity: 90 dB.
• Frequency response: 36Hz to 20kHz.
• Crossover frequency: 2.35kHz.
• Woofer: 8-inch polypropylene cone with vacuum-deposited titanium.
• Tweeter: Adjustable 1-inch silk dome with vacuum-deposited titanium.
• Tweeter adjustment: +2 dB, 0 dB, or –2 dB.
• Coverage: Approximately 100° horizontal by 90° vertical.
• Connections: Gold-plated push terminals.
• Internal amplifier: None; external amplification is required.
• 70V compatibility: No built-in transformer or selectable tap settings.

Use an amplifier or AV receiver that supports passive 8-ohm speakers. The official 130W specification is a peak rating and should not be presented as a 130W RMS amplifier recommendation.

Clean amplification, correct impedance support, proper wiring, and avoiding audible clipping are more important than directly matching the amplifier’s maximum advertised wattage to the speaker’s peak rating.

Using the SIG-58-IW for Stereo Music

For conventional stereo, install one speaker on the left and one on the right of the primary listening area. Keep the speakers at similar heights and distances whenever the wall layout allows.

Aim each tweeter toward the main listening area and begin with the tweeter compensation switch at 0 dB. Make final adjustments after listening to familiar music from the normal seating position.

Using It with a Television

The SIG-58-IW can be used as a discreet left or right speaker beside a television or projection screen. A matching dedicated LCR speaker should be used when the system includes a center channel.

Keep the left and right speakers reasonably symmetrical around the display to support natural dialogue placement, soundstage width, and consistent tonal balance.

Using It as a Surround Speaker

The SIG-58-IW may be used as a standard direct-radiating side or rear surround speaker when that dispersion pattern matches the theater design.

It does not provide selectable bipole or dipole operation. Choose a dedicated Episode surround model when a more diffuse effect is required.

Installation Dimensions

• Finished size with grille: Approximately 10.3 inches wide by 15 inches high.
• Wall cutout: Approximately 9 inches wide by 13.7 inches high.
• Mounting depth without enclosure: Approximately 3.6 inches.
• Mounting depth with compatible enclosure: Approximately 3.8 inches.
• Weight: Approximately 6 lb.
• Clamping range: Approximately 3/8-inch through double 1/2-inch wall material.
• Recommended open cavity volume: Approximately 35 to 40 liters.

Before Cutting the Wall

Confirm the full 9-by-13.7-inch cutout and check for studs, electrical wiring, plumbing, HVAC components, fire blocking, insulation, and other hidden obstructions.

Allow enough space for the 3.6-inch speaker depth, terminals, speaker-wire bend radius, mounting dogs, and recommended cavity volume.

Verify both left and right locations before cutting so the finished layout remains visually and acoustically balanced.

Push Lock by Swarm Installation

Episode’s Push Lock by Swarm system uses spring-loaded mounting dogs that engage when the front buttons are pressed. Once engaged, the speaker is held in the opening while the installer completes final positioning.

The mounting dogs can be cinched by up to approximately 6mm when additional clamping pressure is needed for textured, uneven, or layered wall material.

Only tighten each mounting dog after it has fully engaged behind the wall. Excessive tightening can damage the frame or wall surface.

One-Step or Staged Two-Step Installation

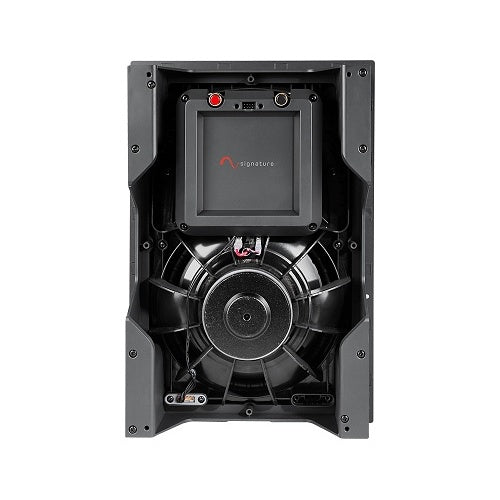

The SIG-58-IW ships as an assembled speaker-and-cradle system for a straightforward one-step installation.

For construction projects, the speaker core can be removed and the cradle installed first. This allows wiring, the protective cover, and an optional enclosure to be completed while the speaker remains protected from paint, sanding dust, insulation, and construction debris.

The speaker core can then be inserted into the cradle after the finished wall and surrounding work are complete.

Included Cradle and Optional Enclosure

The compatible Signature cradle is included with the speaker. The separate SIG-CRADLE-IW-8 is only needed for advance installation, replacement, or projects requiring an additional cradle.

The compatible ESS-ENCL-IW-8 enclosure is optional and sold separately. It can provide a more predictable acoustic volume, help reduce sound transfer into an adjoining room, and keep insulation or debris away from the speaker.

The enclosure uses a direct, jumper-free connection when correctly aligned with the cradle and speaker assembly.

Grille and Construction Accessories

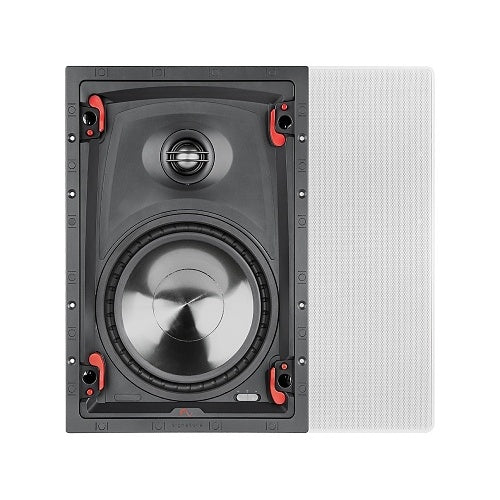

The standard speaker uses a thin-bezel magnetic grille that can be painted to better match the wall.

A true flush-mount installation requires the appropriate optional construction accessory and should be planned before the wall finish is completed.

Do not paint the woofer, tweeter, adjustment switch, terminals, or mounting mechanism. Avoid blocking the grille perforations when painting.

Does It Need a Subwoofer?

A subwoofer may be optional for distributed music or ordinary television audio, particularly at moderate listening levels.

For home theater, bass-heavy music, or higher-volume playback, a dedicated subwoofer is still recommended. The subwoofer handles the deepest frequencies while allowing the in-wall speakers to focus on dialogue, instruments, and directional effects.

When to Choose Another Episode Model

Choose the SIG-56-IW when wall space is limited or when the smaller 6-inch model provides enough output for the room.

Choose a dedicated DVC model when one installed speaker must reproduce both left and right stereo channels.

Choose an IWSURR model when you need selectable bipole or dipole surround operation.

Choose an IWLCR model for a center channel or horizontal front-stage application.

Choose a 70V Episode speaker when the project uses constant-voltage amplification or requires many speakers across long wire runs.

Good Products to Pair With This Speaker

• In-Wall & In-Ceiling Speakers to compare architectural speaker sizes and channel types.
• Episode Speakers for matching front, center, surround, outdoor, and subwoofer models.
• Amplifiers for compatible stereo, home-theater, and multi-zone amplification.
• Speaker Wires for properly rated in-wall speaker cable.
• Subwoofers for deeper bass in music and home-theater systems.
• Power Management Solutions to protect receivers, amplifiers, source equipment, and control systems.

Need Help Planning Your Speaker Layout?

Send us the room dimensions, wall construction, available speaker positions, amplifier or receiver model, and intended use. We can help determine speaker quantity, placement, amplifier compatibility, and whether the SIG-58-IW or another Episode model is the better fit.

Is the Episode SIG-58-IW sold individually or as a pair?

It is sold individually. A conventional stereo system normally requires two speakers.

Is this a powered speaker?

No. It is a passive in-wall speaker that requires speaker wire and a compatible amplifier or AV receiver.

Does it include Bluetooth or Wi-Fi?

No. Bluetooth, Wi-Fi, streaming, and app control must come from the connected receiver, amplifier, or audio source.

Is the SIG-58-IW a standard or dual-voice-coil speaker?

It is a standard single-channel in-wall speaker. One SIG-58-IW connects to one amplifier channel.

Can one SIG-58-IW reproduce both left and right stereo channels?

No. Use two speakers for conventional stereo or select a dedicated dual-voice-coil model when only one physical speaker location is available.

What is the nominal impedance?

The SIG-58-IW has an 8-ohm nominal impedance.

What is the correct power rating?

The official specification lists 130W peak power. It should not be described as a 130W RMS speaker.

What is the frequency response?

The published frequency response is 36Hz to 20kHz.

What is the sensitivity?

The published sensitivity is 90 dB.

What size woofer does it use?

It uses an 8-inch polypropylene cone woofer with vacuum-deposited titanium.

What type of tweeter does it use?

It uses an adjustable 1-inch silk-dome tweeter with vacuum-deposited titanium.

Can the tweeter be aimed?

Yes. The tweeter can be directed toward the primary listening area after the speaker is installed.

What does the tweeter compensation switch do?

It provides +2 dB, 0 dB, and –2 dB settings to increase, maintain, or reduce high-frequency output for the speaker position and room acoustics.

What is the coverage pattern?

Episode publishes approximately 100-degree horizontal by 90-degree vertical coverage.

Can it be used as a front left or right speaker?

Yes. It can serve as a discreet front left or right speaker when the room, placement, and output requirements are appropriate.

Can it be used as a center speaker?

A dedicated Episode LCR model is generally the better choice for a center channel, especially when horizontal placement and dialogue localization are important.

Can it be used as a surround speaker?

Yes. It can serve as a direct-radiating side or rear surround speaker. It does not offer selectable bipole or dipole operation.

Can it be used for Dolby Atmos?

This is an in-wall speaker rather than an in-ceiling height speaker. Use a properly positioned direct-radiating in-ceiling model for conventional Dolby Atmos overhead channels.

Can it connect to a 70V amplifier?

No. It does not include a 70V transformer or selectable tap settings. Use an appropriate constant-voltage speaker for a 70V or 100V system.

Does it need a subwoofer?

A subwoofer may be optional for moderate music or television listening, but it is recommended for home theater, bass-heavy music, and systems requiring deeper low-frequency output.

What wall cutout is required?

The required cutout is approximately 9 inches wide by 13.7 inches high.

What is the finished size?

The finished size with the grille installed is approximately 10.3 inches wide by 15 inches high.

How much mounting depth is required?

Allow approximately 3.6 inches without an enclosure and approximately 3.8 inches with the compatible enclosure.

How much cavity volume is recommended?

Episode recommends approximately 35 to 40 liters of open air volume behind the speaker when an enclosure is not used.

What wall thickness can the mounting system support?

The published clamping range is approximately 3/8-inch through double 1/2-inch wall material.

Does it include the Signature cradle?

Yes. The speaker ships as an assembled speaker-and-cradle system. The center speaker core can be removed for staged construction.

Which cradle is compatible?

The compatible replacement or advance-installation cradle is the SIG-CRADLE-IW-8.

Is the backbox included?

No. The compatible ESS-ENCL-IW-8 enclosure is optional and sold separately.

What does the optional enclosure do?

It provides a more predictable acoustic volume, helps reduce sound transfer into adjacent rooms, and keeps insulation or construction debris away from the speaker.

Is a true flush-mount bracket included?

No. The standard installation uses a thin-bezel magnetic grille. A dedicated flush-mount installation requires the appropriate optional construction accessory.

Can the grille be painted?

Yes. The grille can be painted when prepared according to Episode’s instructions. Avoid blocking the grille perforations.

Can it be installed outdoors or in a shower?

No outdoor or moisture rating is published for this model. Install it only in dry indoor locations.

What should I check before ordering?

Check speaker quantity, amplifier compatibility, wall cutout, mounting depth, stud locations, cavity volume, wire routing, intended channel use, and whether an optional enclosure or construction accessory is required.
