Episode Signature SIG-56-IW In-Wall Speaker 6 Inch

Premium In-Wall Sound with a Clean Architectural Finish

The Episode SIG-56-IW is a premium 6-inch Signature 5 Series in-wall speaker designed for stereo music, distributed audio, TV rooms, media spaces, and properly planned home-theater channels.

It combines a titanium-coated polypropylene woofer with an adjustable titanium-coated silk-dome tweeter, broad 100-degree horizontal by 90-degree vertical coverage, selectable tweeter output, and Episode’s Push Lock by Swarm mounting system.

Best Use Cases

• Living-room stereo: Creates a clean left-and-right speaker system without placing cabinets on stands or furniture.
• TV and media rooms: Provides fuller sound than television speakers while maintaining a discreet architectural appearance.
• Distributed audio: Works well in bedrooms, dining rooms, offices, open living areas, and other residential music zones.
• Direct-radiating surrounds: Can serve properly positioned side or rear channels when a standard direct-radiating speaker is preferred.
• Multi-room systems: Pairs with compatible amplification and other Episode speakers for consistent audio throughout a home.
• Suitable low-impedance commercial installations: May be used in offices, conference rooms, waiting areas, and similar spaces when paired with an appropriate conventional amplifier.

Who Should Buy This?

This is a strong choice if you want better output and bass extension than a compact in-wall speaker while keeping the room free of visible speaker cabinets.

It makes particular sense when you need an adjustable tweeter, wide coverage, selectable high-frequency output, a shallow wall depth, and flexible one-step or staged installation.

Who Should Not Buy This?

This is not the correct model when one wall location must reproduce both left and right stereo channels. Choose the dedicated SIG-56-IWDVC dual-voice-coil model for that application.

It is also not a bipole/dipole surround speaker. Choose the SIG-56-IWSURR when you specifically need a wider, more diffuse side- or rear-surround presentation.

For a center channel or horizontal front-stage installation, choose the SIG-56-IWLCR rather than turning this standard vertical speaker sideways.

This model does not include a commercial 70V or 100V transformer. Do not connect it directly to a constant-voltage distributed-audio amplifier.

No outdoor or moisture rating is published for this speaker. Install it only in dry indoor locations.

Sold Individually

The SIG-56-IW is sold as one speaker. A conventional stereo system normally requires two speakers, with one connected to the left amplifier channel and the other connected to the right channel.

A multichannel home-theater system may require several speakers depending on the planned front, side-surround, and rear-surround configuration.

6-Inch Titanium-Coated Polypropylene Woofer

The 6-inch polypropylene woofer uses vacuum-deposited titanium to increase driver rigidity while maintaining a relatively lightweight cone.

Episode publishes a frequency response of 42Hz to 20kHz, giving the speaker useful midbass extension for music, television audio, and home-theater applications.

Actual bass performance will still depend on wall construction, cavity volume, use of an enclosure, room acoustics, speaker placement, and amplifier settings.

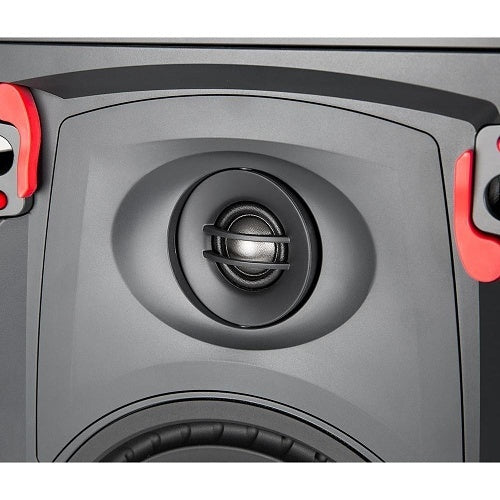

Adjustable Titanium-Coated Silk-Dome Tweeter

The adjustable 3/4-inch silk-dome tweeter uses vacuum-deposited titanium and can be directed toward the primary listening area.

This is helpful when the speaker cannot be positioned directly in front of the listeners because of wall studs, windows, furniture, displays, doors, or other architectural restrictions.

Aim the tweeter carefully and avoid rotating or forcing it beyond the movement allowed by the official installation instructions.

Tweeter Compensation

A three-position tweeter adjustment provides +2 dB, 0 dB, or –2 dB output for matching the speaker to its position and room acoustics.

• +2 dB: Adds high-frequency output in heavily furnished rooms or when the speaker is farther from the listening area.
• 0 dB: Provides a neutral starting position for initial setup and calibration.
• –2 dB: Reduces high-frequency output in reflective rooms or when the speaker is close to the listeners.

Complete final adjustments after both speakers are installed and the system has been evaluated from the normal listening positions.

Wide 100° × 90° Coverage

The published coverage pattern is approximately 100 degrees horizontally by 90 degrees vertically. This helps distribute sound across a broader seating or listening area than a highly directional speaker.

Wide dispersion is useful in living rooms, bedrooms, offices, open-plan areas, and media spaces where listeners may not remain in one exact position.

Coverage still depends on speaker height, spacing, orientation, furnishings, and room geometry. Plan the complete speaker layout before making wall cutouts.

Amplifier and Receiver Compatibility

• Speaker type: Passive two-way standard in-wall speaker.
• Series: Episode Signature 5 Series.
• Sold as: One speaker.
• Power rating: 130W peak.
• Sensitivity: 90 dB.
• Frequency response: 42Hz to 20kHz.
• Woofer: 6-inch polypropylene cone with vacuum-deposited titanium.
• Tweeter: Adjustable 3/4-inch silk dome with vacuum-deposited titanium.
• Tweeter adjustment: +2 dB, 0 dB, or –2 dB.
• Coverage: Approximately 100° horizontal by 90° vertical.
• Connections: Gold-plated push terminals.
• Internal amplifier: None; external amplification is required.
• 70V compatibility: No built-in transformer or selectable tap settings.

Connect each SIG-56-IW to one compatible amplifier or AV-receiver channel. Episode’s current product table contains conflicting impedance information, so confirm the current impedance specification before designing parallel multi-speaker wiring or connecting several speakers to one amplifier channel.

The published 130W figure is a peak rating and should not be described as a 130W RMS amplifier recommendation. Clean amplification, appropriate speaker-load support, correct wiring, and avoiding audible distortion are more important than matching peak wattage figures.

Using the SIG-56-IW for Stereo Music

For conventional stereo, install one speaker on the left and one on the right of the primary listening area. Keep the speakers at similar heights and distances whenever the wall layout allows.

Aim each tweeter toward the main seating area and begin with the tweeter compensation switch at 0 dB. Make final adjustments after listening to familiar material from the normal seating position.

Using It with a Television

The SIG-56-IW can be used as a discreet left or right speaker beside a television or projection screen. A matching LCR speaker should be used when the system includes a dedicated center channel.

For the most natural dialogue placement, keep the left and right speakers reasonably symmetrical around the display and position the center channel close to the screen.

Using It as a Surround Speaker

The SIG-56-IW may be used as a standard direct-radiating side or rear surround speaker when that dispersion pattern matches the theater design.

It does not provide selectable bipole or dipole operation. Choose a dedicated Episode IWSURR model when a more diffuse surround field is required.

Installation Dimensions

• Finished size with grille: Approximately 8.9 inches wide by 13 inches high.
• Wall cutout: Approximately 7.6 inches wide by 11.7 inches high.
• Published mounting depth: Approximately 3.7 inches without an enclosure.
• Mounting depth with compatible enclosure: Approximately 3.8 inches.
• Weight: Approximately 5.6 lb.
• Clamping range: Approximately 3/8-inch through double 1/2-inch wall material.
• Recommended open cavity volume: Approximately 15 to 20 liters.

Before Cutting the Wall

Confirm the full 7.6-by-11.7-inch cutout and check for studs, electrical wiring, plumbing, HVAC components, fire blocking, insulation, and other hidden obstructions.

Allow enough depth for the speaker, terminals, cable bend radius, mounting dogs, and optional enclosure. Verify both left and right locations before cutting so the final layout remains visually and acoustically balanced.

Use the supplied cutout template and confirm that the speaker orientation matches the planned room layout.

Push Lock by Swarm Installation

Episode’s Push Lock by Swarm system uses spring-loaded mounting dogs that engage when the front buttons are pressed. Once engaged, the speaker is held in the wall while the installer completes final positioning and tightening.

The dogs can be cinched by up to approximately 6mm when additional clamping pressure is required for textured, uneven, or layered wall material.

Only tighten each mounting dog after it has fully engaged behind the wall. Excessive tightening can damage the speaker frame or drywall.

One-Step or Staged Two-Step Installation

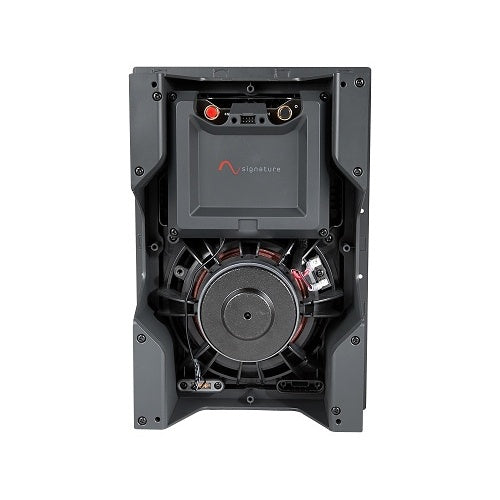

The SIG-56-IW ships as an assembled speaker-and-cradle system for a straightforward one-step installation.

For construction projects, the speaker core can be removed and the cradle installed first. This allows wiring, the protective cover, and an optional enclosure to be completed while the speaker remains protected from paint, sanding dust, insulation, and construction debris.

The speaker core can then be inserted into the cradle after the wall finish and surrounding work are complete.

Included Cradle and Optional Enclosure

The required Signature cradle is included with the speaker. A separate SIG-CRADLE-IW-6 is only needed for advance installation, replacement, or projects that require an additional cradle.

The compatible ESS-ENCL-IW-6 enclosure is optional and sold separately. It can provide a more consistent acoustic volume, help reduce sound transfer into an adjoining room, and keep insulation or debris away from the driver.

The enclosure uses a direct, jumper-free connection to the speaker when correctly aligned with the cradle and speaker assembly.

Grille and Construction Accessories

The standard speaker uses a thin-bezel magnetic grille that can be painted to better match the wall.

A true flush-mount installation requires the appropriate optional construction bracket or grille system and should be planned before the finished wall surface is completed.

Do not paint the woofer, tweeter, controls, terminals, or mounting mechanism. Avoid blocking the grille perforations when painting.

Does It Need a Subwoofer?

A subwoofer is optional for distributed music and everyday television audio, particularly when the listening level is moderate.

For home theater, bass-heavy music, or higher-volume playback, a dedicated subwoofer is recommended. The subwoofer can reproduce deeper frequencies while allowing the in-wall speakers to focus on midrange, dialogue, and high-frequency detail.

When to Choose Another Episode Model

Choose the SIG-58-IW when you want an 8-inch woofer, stronger bass, and greater output for a larger room.

Choose the SIG-56-IWDVC when one installed speaker must reproduce both left and right stereo channels.

Choose the SIG-56-IWSURR when you need selectable bipole/dipole surround operation.

Choose the SIG-56-IWLCR for a dedicated center channel or horizontal front-stage application.

Choose a 70V Episode speaker when the project uses constant-voltage amplification or requires many speakers across long cable runs.

Good Products to Pair With This Speaker

• In-Wall & In-Ceiling Speakers to compare additional architectural speaker sizes and channel types.
• Episode Speakers for matching front, center, surround, outdoor, and subwoofer products.
• Amplifiers for compatible stereo, home-theater, and multi-zone amplification.
• Speaker Wires for properly rated in-wall speaker cable.
• Subwoofers for deeper bass in music and home-theater systems.
• Power Management Solutions to protect receivers, amplifiers, audio sources, and control equipment.

Need Help Planning Your Speaker Layout?

Send us the room dimensions, wall construction, available speaker positions, amplifier or receiver model, and intended use. We can help determine speaker quantity, placement, supporting equipment, and whether the SIG-56-IW or another Episode model is the better fit.

Is the Episode SIG-56-IW sold individually or as a pair?

It is sold individually. A conventional stereo system normally requires two speakers.

Is this a powered speaker?

No. It is a passive in-wall speaker that requires speaker wire and a compatible amplifier or AV receiver.

Does it include Bluetooth or Wi-Fi?

No. Bluetooth, Wi-Fi, streaming, and app control must come from the connected receiver, amplifier, or audio source.

Is the SIG-56-IW a standard or dual-voice-coil speaker?

Episode categorizes it as a standard in-wall speaker. The dedicated dual-voice-coil model is the SIG-56-IWDVC.

Can one SIG-56-IW reproduce both left and right stereo channels?

No. Connect each SIG-56-IW to one amplifier channel. Use two speakers for conventional stereo or choose the dedicated DVC model when only one physical speaker location is available.

What is the speaker’s nominal impedance?

Episode’s current published table contains conflicting information for this field. Confirm the current impedance specification before designing parallel multi-speaker wiring or connecting several speakers to one amplifier channel.

What is the correct power rating?

The official specification lists 130W peak power. It should not be described as a 130W RMS speaker.

What is the frequency response?

The published frequency response is 42Hz to 20kHz.

What is the sensitivity?

The published sensitivity is 90 dB.

What type of woofer does it use?

It uses a 6-inch polypropylene cone woofer with vacuum-deposited titanium.

What type of tweeter does it use?

It uses an adjustable 3/4-inch silk-dome tweeter with vacuum-deposited titanium.

Can the tweeter be aimed?

Yes. The tweeter can be directed toward the primary listening area after the speaker is installed.

What does the tweeter compensation switch do?

It provides +2 dB, 0 dB, and –2 dB settings to increase, maintain, or reduce high-frequency output for the speaker position and room acoustics.

What is the coverage pattern?

Episode publishes approximately 100-degree horizontal by 90-degree vertical coverage.

Can it be used as a front left or right speaker?

Yes. It can be used as a discreet left or right speaker for music, television, or a home-theater front stage when the room and output requirements are appropriate.

Can it be used as a center speaker?

A dedicated Episode LCR model is generally the better choice for a center channel, especially when horizontal placement and dialogue localization are important.

Can it be used as a surround speaker?

Yes, it can serve as a standard direct-radiating side or rear surround speaker. It does not provide selectable bipole or dipole operation.

Can it be used for Dolby Atmos?

This is an in-wall speaker rather than an in-ceiling height speaker. Use a correctly positioned direct-radiating in-ceiling model for conventional Dolby Atmos overhead channels.

Can it connect to a 70V amplifier?

No. It does not include a 70V transformer or selectable tap settings. Use an appropriate constant-voltage speaker for a 70V or 100V installation.

Does it need a subwoofer?

A subwoofer is optional for ordinary music and television audio but recommended for home theater, bass-heavy music, and systems requiring deeper low-frequency output.

What wall cutout is required?

The required cutout is approximately 7.6 inches wide by 11.7 inches high.

What is the finished size?

The finished size with the grille installed is approximately 8.9 inches wide by 13 inches high.

How much mounting depth is required?

Allow approximately 3.7 inches without an enclosure and approximately 3.8 inches with the compatible enclosure.

How much cavity volume is recommended?

Episode recommends approximately 15 to 20 liters of open air volume behind the speaker when an enclosure is not used.

What wall thickness can the mounting system support?

The published clamping range is approximately 3/8-inch through double 1/2-inch wall material.

Does it include the Signature cradle?

Yes. The speaker ships as an assembled speaker-and-cradle system. The speaker core can be removed for staged construction.

Is the backbox included?

No. The compatible ESS-ENCL-IW-6 enclosure is optional and sold separately.

What does the optional enclosure do?

It provides a more consistent acoustic volume, helps reduce sound transfer into adjacent rooms, and keeps insulation or construction debris away from the speaker.

Is a pre-construction bracket available?

Yes. Compatible Episode construction brackets and additional cradles are available separately for suitable new-build and staged-installation projects.

Can the grille be painted?

Yes. The thin-bezel magnetic grille can be painted when prepared according to Episode’s instructions. Avoid blocking the grille perforations.

Can it be installed outdoors or in a shower?

No outdoor or moisture rating is published for this model. Install it only in dry indoor locations.

What should I check before ordering?

Check speaker quantity, amplifier compatibility, wall cutout, mounting depth, stud locations, available cavity volume, wire routing, intended channel use, and whether an optional enclosure or construction accessory is required.
