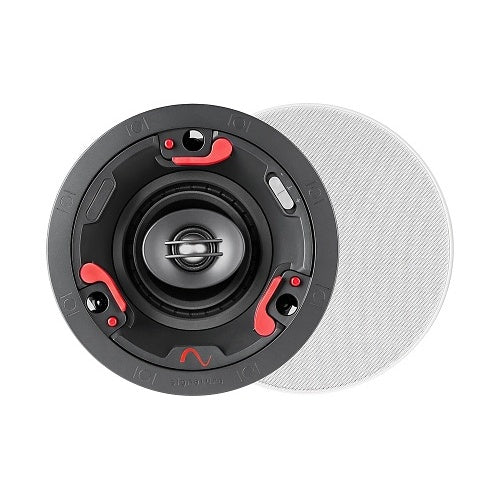

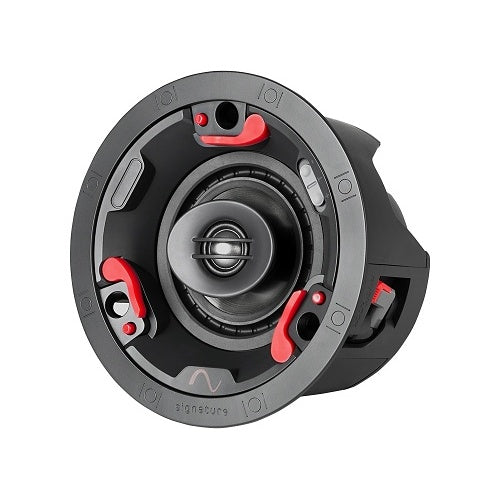

Episode Signature SIG-54-IC 4 Inch In-Ceiling Speaker

Premium Sound from a Compact In-Ceiling Speaker

The Episode SIG-54-IC is a premium 4-inch in-ceiling speaker designed for smaller rooms, discreet multi-room audio systems, and architectural installations where ceiling space is limited but sound quality still matters.

It combines a titanium-coated polypropylene woofer with an adjustable titanium-coated silk-dome tweeter, wide 120-degree coverage, selectable tweeter output, and Episode’s Push Lock by Swarm installation system.

Best Use Cases

• Bedrooms: Provides discreet stereo music without taking up shelf, wall, or floor space.
• Kitchens: A compact option when ceiling space is limited by lighting, cabinets, vents, and other fixtures.
• Home offices: Delivers clean background music with a smaller finished ceiling footprint.
• Hallways and dressing areas: Wide dispersion helps cover narrow or transitional spaces.
• Smaller living spaces: A practical architectural speaker when a larger 6-inch or 8-inch model would be visually intrusive.
• Multi-room audio: Works with compatible amplifiers and audio systems to create discreet listening zones throughout a home.
• Suitable theater channels: May be used for properly planned direct-radiating surround or height channels when the room layout, receiver, and output requirements are appropriate.

Who Should Buy This?

This is a strong choice if you want a compact premium in-ceiling speaker with better driver materials, wider dispersion, and more installation flexibility than a basic background-music speaker.

It makes particular sense when the finished speaker must remain visually discreet, the available cutout area is limited, or the room does not require the deeper bass and higher output of a larger architectural speaker.

Who Should Not Buy This?

This is not the best choice for a large room, high-volume home theater, or listening area that requires substantial bass from the ceiling speakers alone. A 6-inch or 8-inch Episode model will generally provide stronger low-frequency output and greater headroom.

It is also not a dual-voice-coil speaker. One SIG-54-IC connects to one amplifier channel and does not reproduce both left and right stereo channels from a single speaker location.

This model does not include a 70V transformer. It should not be connected directly to a commercial 70V or 100V distributed-audio amplifier.

No outdoor or all-weather rating is published for this model. Install it only in dry indoor locations and choose an appropriate all-weather architectural speaker for bathrooms, covered outdoor areas, or moisture-prone environments.

Sold Individually

The Episode SIG-54-IC is sold as one speaker. A conventional stereo room normally requires two speakers: one connected to the amplifier’s left channel and the other connected to its right channel.

Additional speakers may be required for larger rooms, unusually shaped spaces, or installations that need more even coverage at lower listening levels.

Compact 4-Inch Woofer

The SIG-54-IC uses a 4-inch polypropylene cone woofer with vacuum-deposited titanium. The lightweight and rigid driver construction is designed to reduce distortion while reproducing vocals, instruments, and supporting bass.

Its published response extends down to 55Hz, but the compact woofer should not be expected to provide the same low-frequency output as the larger 6-inch or 8-inch Signature models.

Adjustable Titanium-Coated Tweeter

The 3/4-inch silk-dome tweeter uses vacuum-deposited titanium and can be aimed toward the primary listening area after the speaker is installed.

This is useful when the speaker cannot be positioned directly above the listener because of joists, lights, HVAC vents, or other ceiling obstructions.

Tweeter Compensation Switch

A three-position tweeter adjustment provides +2 dB, 0 dB, or –2 dB output. This allows the high-frequency balance to be adjusted for the room and installation.

• +2 dB: Adds more high-frequency output when the room is heavily furnished or the speaker is farther from the listeners.
• 0 dB: The recommended starting position for most installations.
• –2 dB: Reduces high-frequency output in reflective rooms or when the speaker is close to the listening position.

Make final adjustments after both speakers are installed and the system has been heard from the normal seating or working position.

Wide 120-Degree Coverage

The published 120-degree listening angle helps distribute sound across a wider area than a highly directional ceiling speaker.

Wide dispersion can improve coverage in bedrooms, kitchens, offices, hallways, and other spaces where listeners move around instead of remaining in one fixed seat.

Wide coverage does not eliminate the need for correct speaker placement. Speaker quantity and spacing should still be planned around the room dimensions, ceiling height, furnishings, and preferred listening level.

Amplifier and Receiver Compatibility

• Speaker type: Passive two-way in-ceiling speaker.
• Sold as: One speaker.
• Nominal impedance: 8 ohms.
• Power rating: 130W peak.
• Sensitivity: 90 dB.
• Frequency response: 55Hz to 20kHz.
• Crossover frequency: 2.75kHz.
• Woofer: 4-inch polypropylene cone with vacuum-deposited titanium.
• Tweeter: Adjustable 3/4-inch silk dome with vacuum-deposited titanium.
• Tweeter adjustment: +2 dB, 0 dB, or –2 dB.
• Listening angle: 120 degrees.

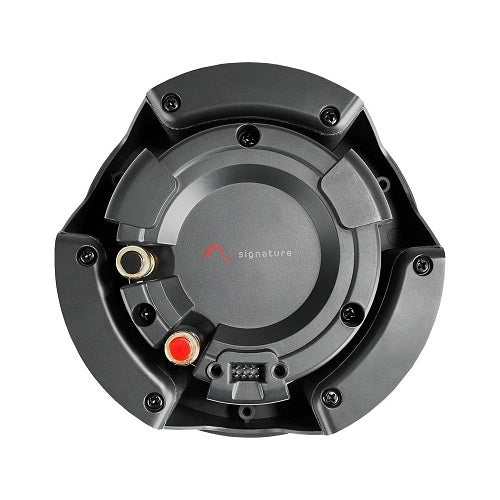

• Connections: Gold-plated push terminals.
• 70V compatibility: No built-in transformer or tap settings.
• Internal amplifier: None; external amplification is required.

Use an amplifier or AV receiver that supports passive 8-ohm speakers. The published 130W figure is a peak rating and should not be presented as a 130W RMS recommendation.

Clean amplification, proper impedance support, correct wiring, and avoiding audible distortion are more important than matching the amplifier’s advertised maximum wattage directly to the speaker’s peak rating.

Installation Dimensions

• Finished diameter with grille: Approximately 7.5 inches.
• Ceiling cutout diameter: Approximately 6.2 inches.
• Mounting depth without enclosure: Approximately 4.6 inches.
• Mounting depth with compatible enclosure: Approximately 5.9 inches.
• Weight: Approximately 3.1 lb.
• Clamping range: Approximately 3/8-inch through double 1/2-inch ceiling material.
• Recommended open air volume: Approximately 3 to 5 liters behind the speaker.

Before Cutting the Ceiling

Confirm the 6.2-inch cutout location and check for joists, electrical wiring, plumbing, HVAC ducts, recessed lighting, fire blocking, and other hidden obstructions.

Also allow enough space for the 4.6-inch mounting depth, speaker wire, Push Lock mounting dogs, and the required cavity behind the speaker.

Use the supplied template and confirm all speaker locations before making permanent openings. For a stereo pair, keep the two speakers reasonably symmetrical relative to the listening area.

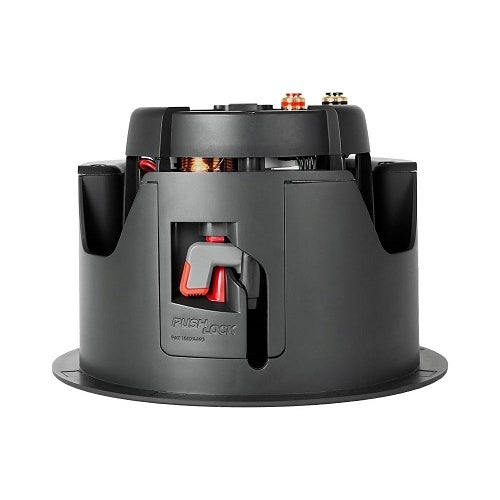

Push Lock by Swarm Installation

Episode’s Push Lock by Swarm system uses spring-loaded mounting dogs that engage when the front buttons are pressed. Once engaged, the mounting dogs hold the speaker in the opening and free the installer’s hands for final adjustment.

The dogs can be tightened by up to approximately 6mm when additional clamping pressure is needed for uneven, textured, or layered ceiling material.

Do not overtighten the mounting system. Tighten only after each dog is fully seated against the rear of the ceiling material.

One-Step or Two-Step Installation

The speaker can be installed as one assembled unit, or the speaker core can be removed from its included cradle for a staged installation.

The two-step method allows the cradle, protective cover, wiring, and optional enclosure to be installed earlier in the construction process. The speaker core can then be inserted after painting, sanding, and other work is complete.

This helps reduce the risk of paint, drywall dust, insulation, or construction debris reaching the speaker drivers.

Included Cradle and Optional Enclosure

The SIG-54-IC includes its compatible Signature cradle. A separate SIG-CRADLE-IC-4 is only needed for replacement, advance installation, or projects that require an additional cradle.

The compatible ESS-ENCL-IC-4 enclosure is optional and sold separately. It can provide a more predictable air volume, help reduce sound transfer into adjacent spaces, and prevent insulation or debris from entering the speaker cavity.

When the enclosure is used, allow approximately 5.9 inches of total mounting depth.

Grille and Flush-Mount Options

The standard speaker uses a thin-bezel magnetic grille that can be painted to better match the ceiling.

A true flush-mount installation requires the appropriate Episode flush-mount bracket, which is sold separately and normally must be planned before the ceiling finish is completed.

Do not paint the speaker drivers, tweeter, switches, or mounting mechanism. Follow the official grille-painting instructions and avoid blocking the grille perforations.

Speaker Wiring

Strip approximately 1/4 inch of insulation from each conductor and connect the speaker wire to the gold-plated push terminals.

Maintain positive-to-positive and negative-to-negative polarity between the amplifier and every speaker. Reversed polarity can reduce bass output and create inconsistent sound between speakers.

Use speaker cable with the correct in-wall and fire rating for the property and installation location.

Does It Need a Subwoofer?

A subwoofer is optional for background music and everyday multi-room listening, particularly in smaller rooms.

For home theater, bass-heavy music, or systems expected to play at higher levels, a dedicated subwoofer is recommended. The subwoofer can reproduce deeper frequencies while allowing the compact ceiling speaker to focus on midrange and high-frequency content.

When to Choose a Larger Episode Speaker

Choose the 6-inch SIG-56-IC when you need stronger bass, more output, or coverage for a medium-size room.

Choose the 8-inch SIG-58-IC when low-frequency extension and higher output are more important than the smallest possible ceiling footprint.

Choose a DVC model when only one ceiling location is available but both left and right stereo channels must be reproduced from that single speaker.

Choose a dedicated surround or point speaker when the home theater layout requires a specialized dispersion pattern or angled driver assembly.

Good Products to Pair With This Speaker

• In-Wall & In-Ceiling Speakers to compare additional architectural speaker sizes and applications.
• Episode Speakers for matching distributed-audio, home-theater, outdoor, and subwoofer products.
• Amplifiers for compatible stereo and multi-zone amplification.
• Speaker Wires for properly rated in-wall speaker cable.
• Subwoofers for deeper bass in music and home-theater systems.
• Power Management Solutions to protect amplifiers, receivers, audio sources, and control equipment.

Need Help Planning Your Speaker Layout?

Send us the room dimensions, ceiling height, available speaker locations, amplifier or receiver model, and intended use. We can help determine the correct speaker quantity, spacing, amplifier compatibility, and whether this compact 4-inch model or a larger Episode speaker would be the better fit.

Is the Episode SIG-54-IC sold individually or as a pair?

It is sold individually. A conventional stereo room normally requires two speakers.

Is this a true 4-inch speaker?

Yes. The official specification lists a 4-inch polypropylene woofer with vacuum-deposited titanium.

Is this speaker powered?

No. It is a passive speaker and requires speaker wire plus a compatible amplifier or AV receiver.

Does it include Bluetooth or Wi-Fi?

No. Streaming, Bluetooth, Wi-Fi, and app control must come from the connected amplifier, receiver, or audio source.

What is the nominal impedance?

The speaker has an 8-ohm nominal impedance.

What is the correct power rating?

The official specification lists 130W peak power. Episode does not publish a 130W RMS rating for this model.

What is the frequency response?

The published frequency response is 55Hz to 20kHz.

What is the speaker sensitivity?

The published sensitivity is 90 dB.

What type of tweeter does it use?

It uses an adjustable 3/4-inch silk-dome tweeter with vacuum-deposited titanium.

Can the tweeter be aimed?

Yes. The adjustable tweeter can be directed toward the main listening area after installation.

What does the tweeter compensation switch do?

It provides +2 dB, 0 dB, and –2 dB settings to increase, maintain, or reduce high-frequency output for the room and speaker position.

What is the listening angle?

The official published listening angle is 120 degrees, providing broad coverage for a compact ceiling speaker.

Is this a dual-voice-coil speaker?

No. It is a standard single-channel speaker. One speaker connects to one amplifier channel.

Can one speaker reproduce both left and right stereo channels?

No. Use two SIG-54-IC speakers for conventional stereo, or select a compatible Episode DVC model when only one speaker location is available.

Can it be connected to a 70V amplifier?

No. It does not include a 70V transformer or selectable tap settings. Use an appropriate constant-voltage speaker for 70V or 100V systems.

Can it be used for Dolby Atmos?

It can be used as a direct-radiating ceiling channel when the receiver, room layout, speaker position, and required output are appropriate. Confirm the complete theater design before cutting the ceiling.

Is it suitable for a large home theater?

It may work for lighter-duty height or surround applications, but a larger speaker may provide more output and bass headroom in a large room or high-volume system.

Does it need a subwoofer?

A subwoofer is optional for background music but recommended for home theater, bass-heavy music, and systems requiring deeper low-frequency output.

What ceiling cutout is required?

The required cutout diameter is approximately 6.2 inches.

What is the finished diameter?

The finished diameter with the standard grille installed is approximately 7.5 inches.

How much mounting depth is required?

The speaker requires approximately 4.6 inches without an enclosure or approximately 5.9 inches with the compatible enclosure.

What ceiling thickness can the mounting system support?

The published clamping range is approximately 3/8-inch through double 1/2-inch ceiling material.

How much airspace should be behind the speaker?

Episode recommends approximately 3 to 5 liters of open air volume behind the speaker when an enclosure is not used.

Does the speaker include its mounting cradle?

Yes. The compatible Signature cradle is included with the speaker.

Which replacement cradle is compatible?

The compatible replacement or advance-installation cradle is the SIG-CRADLE-IC-4.

Is the backbox included?

No. The compatible ESS-ENCL-IC-4 enclosure is optional and sold separately.

Is a true flush-mount bracket included?

No. The standard speaker includes a thin-bezel magnetic grille. A dedicated flush-mount bracket is an optional accessory sold separately.

Can the grille be painted?

Yes. The magnetic grille is paintable when prepared and painted according to Episode’s instructions. Avoid blocking the grille perforations.

Can it be installed outdoors or in a shower?

No all-weather or moisture rating is published for this model. Install it only in dry indoor locations.

What should I check before ordering?

Check speaker quantity, amplifier compatibility, ceiling cutout, mounting depth, joist locations, available airspace, wire routing, room size, listening level, and whether an optional enclosure or construction bracket is required.
