Episode Signature SIG-34-IC 4 Inch In-Ceiling Speaker

Compact Architectural Sound for Smaller Rooms

The Episode SIG-34-IC is a compact 4-inch Signature 3 Series in-ceiling speaker designed for bedrooms, kitchens, offices, hallways, dressing areas, and smaller multi-room audio zones where a larger ceiling speaker may be unnecessary or difficult to install.

It combines an injection-molded polypropylene woofer, adjustable silk-dome tweeter, wide 120-degree coverage, an 8-ohm design, and Episode’s Push Lock by Swarm mounting system in a speaker with a finished diameter of approximately 7.5 inches.

Best Use Cases

• Bedrooms: Provides discreet stereo music without using shelf, wall, or floor space.
• Kitchens: Its compact cutout can be easier to position around lighting, vents, cabinets, and other ceiling fixtures.
• Home offices: Delivers clear background music with a smaller visual footprint.
• Hallways and dressing areas: Wide dispersion helps cover narrow or transitional spaces.
• Smaller living spaces: A useful option when a 6-inch or 8-inch speaker would be visually or physically oversized.
• Multi-room audio: Works with compatible amplifiers and audio systems to create discreet listening zones throughout a home.
• Light-duty theater channels: May be used for appropriately planned surround or overhead channels when the room size and required output are suitable.

Who Should Buy This?

This is a good choice if you want a compact architectural speaker with broad coverage, an aimable tweeter, clean ceiling integration, and easier installation than a conventional box speaker.

It makes particular sense when ceiling space is limited, the speaker should remain visually discreet, or the room is mainly used for background music and everyday listening rather than very high output.

Who Should Not Buy This?

This is not the best choice for a large room, high-volume theater, or system expected to produce substantial bass from the ceiling speakers alone. A larger 6-inch or 8-inch Episode speaker will generally provide greater output and stronger low-frequency performance.

It is not a dual-voice-coil speaker. One SIG-34-IC connects to one amplifier channel and does not reproduce both left and right stereo channels from one ceiling location.

This model does not include a 70V transformer or selectable transformer taps. Do not connect it directly to a commercial 70V or 100V distributed-audio amplifier.

No outdoor or moisture rating is published for this model. Install it only in dry indoor locations and select an appropriate all-weather speaker for outdoor, shower, or high-humidity installations.

Sold Individually

The Episode SIG-34-IC is sold as one speaker. A conventional stereo room normally requires two speakers, with one connected to the amplifier’s left channel and the other connected to its right channel.

Larger or unusually shaped rooms may require additional speakers to maintain more consistent coverage without operating one pair at excessive volume.

4-Inch Polypropylene Woofer

The SIG-34-IC uses a 4-inch injection-molded polypropylene cone woofer. Its compact design is well suited to vocals, instruments, background music, television audio, and everyday distributed-audio applications.

The published frequency response begins at 57Hz. While this provides useful supporting bass for a small architectural speaker, it should not be expected to match the low-frequency output or headroom of a larger 6-inch or 8-inch model.

Adjustable Silk-Dome Tweeter

The speaker includes an adjustable 3/4-inch silk-dome tweeter that can be aimed toward the primary listening area after the speaker is installed.

This is useful when the ceiling speaker cannot be placed directly above or equally spaced from the listeners because of joists, recessed lights, HVAC vents, or other obstructions.

The official specifications do not list a separate treble-level adjustment switch for the SIG-34-IC. Its primary high-frequency adjustment is the physical aiming of the tweeter.

Wide 120-Degree Coverage

The published 120-degree listening angle helps distribute sound across a broad area, making the speaker suitable for rooms where listeners move around rather than remaining in one fixed seating position.

Wide dispersion can help provide more even coverage, but it does not eliminate the need for proper spacing. Speaker quantity and placement should still be planned around room dimensions, ceiling height, furnishings, and desired volume.

Amplifier and Receiver Compatibility

• Speaker type: Passive two-way in-ceiling speaker.
• Series: Episode Signature 3 Series.
• Sold as: One speaker.
• Nominal impedance: 8 ohms.
• Power rating: 80W peak.
• Sensitivity: 89 dB.
• Frequency response: 57Hz to 20kHz.
• Crossover frequency: 2.75kHz.
• Woofer: 4-inch injection-molded polypropylene cone.
• Tweeter: Adjustable 3/4-inch silk dome.
• Listening angle: 120 degrees.
• Connections: Gold-plated push terminals.
• 70V compatibility: No built-in transformer or tap settings.
• Internal amplifier: None; external amplification is required.

Use an amplifier or AV receiver that supports passive 8-ohm speakers. The official 80W specification is a peak rating and should not be presented as an 80W RMS amplifier recommendation.

Clean amplification, correct impedance support, proper wiring, and avoiding audible distortion are more important than matching the amplifier’s maximum advertised wattage directly to the speaker’s peak rating.

Installation Dimensions

• Finished diameter with grille: Approximately 7.5 inches.
• Ceiling cutout diameter: Approximately 6.2 inches.
• Mounting depth without enclosure: Approximately 4.6 inches.
• Mounting depth with compatible enclosure: Approximately 5.9 inches.
• Weight: Approximately 3.1 lb.
• Clamping range: Approximately 3/8-inch through double 1/2-inch ceiling material.
• Recommended open air volume: Approximately 3 to 5 liters behind the speaker.

Before Cutting the Ceiling

Confirm the 6.2-inch cutout location and check for joists, electrical wiring, plumbing, HVAC ducts, recessed lighting, fire blocking, and other hidden obstructions.

Allow enough space for the 4.6-inch mounting depth, speaker wire, Push Lock mounting dogs, and the recommended cavity volume behind the speaker.

Use the correct cutout template and confirm every speaker position before making permanent openings. For a stereo pair, keep the two speakers reasonably symmetrical relative to the primary listening area.

Push Lock by Swarm Installation

Episode’s Push Lock by Swarm system uses spring-loaded mounting dogs that engage when the red front buttons are pressed. Once engaged, the mounting dogs hold the speaker in the opening and free the installer’s hands for final adjustment.

The mounting dogs can be tightened by up to approximately 6mm when additional clamping pressure is required for uneven, textured, or layered ceiling material.

Only tighten a mounting dog after it has fully engaged behind the ceiling. Avoid excessive tightening that could damage the speaker frame or ceiling material.

One-Step or Two-Step Installation

The SIG-34-IC ships as an assembled speaker and cradle for a straightforward one-step installation.

For staged construction, the speaker core can be removed from the cradle. The cradle, wiring, protective cover, and optional enclosure can be installed first, while the speaker core remains protected from paint, dust, sanding, and construction debris.

The speaker core can then be inserted after the room is finished.

Cradle and Optional Enclosure

The speaker assembly includes its required Signature cradle. A separate SIG-CRADLE-IC-4 is only needed for replacement, advance installation, or projects requiring an additional cradle.

The compatible ESS-ENCL-IC-4 enclosure is optional and sold separately. It can help provide more predictable air volume, reduce sound transfer into adjoining spaces, and keep insulation or construction debris away from the speaker.

When using the enclosure, plan for approximately 5.9 inches of total mounting depth and ensure the cradle, enclosure, and speaker connections are correctly aligned.

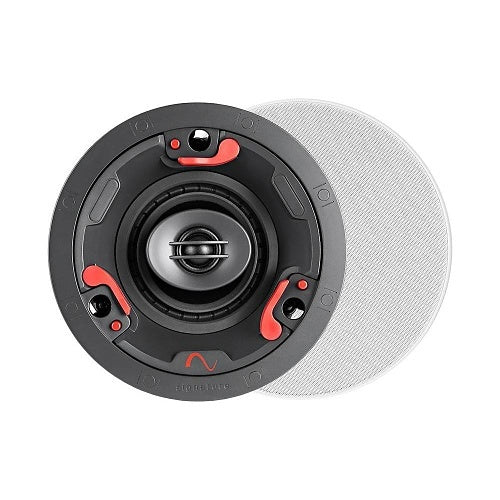

Grille and Flush-Mount Options

The standard architectural design uses a thin-bezel, paintable grille for a clean finished appearance.

A dedicated true flush-mount installation requires the appropriate Episode construction accessory or bracket and should be planned before the ceiling finish is completed.

Do not paint the woofer, tweeter, terminals, mounting mechanism, or internal speaker components. When painting the grille, avoid blocking its perforations.

Speaker Wiring

Strip approximately 1/4 inch of insulation from each speaker-wire conductor and insert it into the gold-plated push terminals. Make sure no loose wire strands protrude from the connector.

Maintain positive-to-positive and negative-to-negative polarity between the amplifier and every speaker. Reversed polarity can reduce bass output and create inconsistent sound between speakers.

Use speaker cable with the correct in-wall and fire rating for the property and installation location.

Can It Be Used for Dolby Atmos?

The SIG-34-IC can reproduce an overhead channel when the room layout, AV receiver, speaker position, and required listening level are appropriate.

Its broad dispersion and aimable tweeter may work well in smaller rooms, but the compact 4-inch woofer and 80W peak rating provide less output headroom than larger architectural speakers. Plan the complete theater layout before making ceiling cutouts.

Does It Need a Subwoofer?

A subwoofer is optional for background music and everyday listening in a smaller room.

For home theater, bass-heavy music, or systems expected to play at higher volume, a dedicated subwoofer is recommended. The subwoofer can reproduce deeper frequencies while allowing the compact ceiling speaker to focus on midrange and high-frequency content.

When to Choose Another Episode Speaker

Choose a 6-inch Signature 3 Series speaker when you need stronger bass, greater output, or coverage for a medium-size room.

Choose an 8-inch model when low-frequency extension and higher output are more important than maintaining the smallest possible ceiling footprint.

Choose a higher Signature Series model when you want upgraded driver materials, greater power handling, or additional sound-adjustment features.

Choose a DVC model when only one ceiling location is available but both left and right stereo channels must be reproduced from that single speaker.

Choose a dedicated all-weather model for covered outdoor areas, bathrooms, or other installations where moisture resistance is required.

Good Products to Pair With This Speaker

• In-Wall & In-Ceiling Speakers to compare other architectural speaker sizes and applications.
• Episode Speakers for matching distributed-audio, theater, outdoor, and subwoofer products.
• Amplifiers for compatible stereo and multi-zone amplification.
• Speaker Wires for properly rated in-wall speaker cable.
• Subwoofers for deeper bass in music and home-theater systems.
• Power Management Solutions to protect amplifiers, receivers, sources, and control equipment.

Need Help Planning Your Speaker Layout?

Send us the room dimensions, ceiling height, available speaker locations, amplifier or receiver model, and intended use. We can help determine speaker quantity, spacing, amplifier compatibility, and whether the compact SIG-34-IC or a larger Episode speaker would be the better fit.

Is the Episode SIG-34-IC sold individually or as a pair?

It is sold individually. A conventional stereo room normally requires two speakers.

Is this a true 4-inch speaker?

Yes. The official specification lists a 4-inch injection-molded polypropylene woofer.

Is this speaker powered?

No. It is a passive speaker and requires speaker wire plus a compatible amplifier or AV receiver.

Does it include Bluetooth or Wi-Fi?

No. Streaming, Bluetooth, Wi-Fi, and app control must come from the connected amplifier, receiver, or audio source.

What is the nominal impedance?

The speaker has an 8-ohm nominal impedance.

What is the correct power rating?

The official specification lists 80W peak power. It should not be described as an 80W RMS speaker.

What is the frequency response?

The published frequency response is 57Hz to 20kHz.

What is the speaker sensitivity?

The published sensitivity is 89 dB.

What type of tweeter does it use?

It uses an adjustable 3/4-inch silk-dome tweeter.

Can the tweeter be aimed?

Yes. The tweeter can be aimed toward the primary listening area after installation.

Does it have a treble or bass adjustment switch?

The official specification table does not list a separate sound-adjustment switch for the SIG-34-IC. Its primary high-frequency adjustment is the aimable tweeter.

What is the listening angle?

The official published listening angle is 120 degrees.

Is this a dual-voice-coil speaker?

No. It is a standard single-channel speaker. One speaker connects to one amplifier channel.

Can one speaker reproduce both left and right channels?

No. Use two SIG-34-IC speakers for conventional stereo, or choose a compatible Episode DVC model when only one speaker location is available.

Can it be connected to a 70V amplifier?

No. It does not include a 70V transformer or selectable tap settings. Use an appropriate constant-voltage speaker for 70V or 100V systems.

Can it be used for Dolby Atmos?

It can reproduce a direct-radiating ceiling channel when the AV receiver, room layout, speaker position, and required output are appropriate. Confirm the complete theater design before cutting the ceiling.

Is it suitable for a large home theater?

Its compact size and 80W peak rating make it better suited to smaller rooms or lighter-duty channels. A larger speaker generally provides more output and bass headroom in a large theater.

Does it need a subwoofer?

A subwoofer is optional for background music but recommended for home theater, bass-heavy music, and systems requiring deeper low-frequency output.

What ceiling cutout is required?

The required cutout diameter is approximately 6.2 inches.

What is the finished diameter?

The finished diameter with the grille installed is approximately 7.5 inches.

How much mounting depth is required?

The speaker requires approximately 4.6 inches without an enclosure or approximately 5.9 inches with the compatible enclosure.

What ceiling thickness can the mounting system support?

The published clamping range is approximately 3/8-inch through double 1/2-inch ceiling material.

How much airspace should be behind the speaker?

Episode recommends approximately 3 to 5 liters of open air volume behind the speaker when an enclosure is not used.

Does the speaker include its mounting cradle?

The speaker ships as an assembled speaker-and-cradle system for one-step installation. The speaker core can also be separated from the cradle for staged construction.

Which additional cradle is compatible?

The compatible replacement or advance-installation cradle is the SIG-CRADLE-IC-4.

Is the enclosure included?

No. The compatible ESS-ENCL-IC-4 enclosure is optional and sold separately.

What does the optional enclosure do?

It provides a more consistent air volume, helps reduce sound transfer into neighboring spaces, and keeps insulation or debris away from the speaker.

Is a true flush-mount bracket included?

No. The standard installation uses a thin-bezel architectural grille. A dedicated flush-mount installation requires the appropriate optional construction accessory.

Can the grille be painted?

Yes. The grille is designed to be paintable when prepared according to Episode’s instructions. Avoid blocking the grille perforations.

Can it be installed outdoors or in a shower?

No all-weather or moisture rating is published for this model. Install it only in dry indoor locations.

What should I check before ordering?

Check speaker quantity, amplifier compatibility, ceiling cutout, mounting depth, joist locations, available airspace, wire routing, room size, listening level, and whether an optional enclosure or construction bracket is required.
