Premium In-Wall Surround Sound with a Clean Architectural Finish

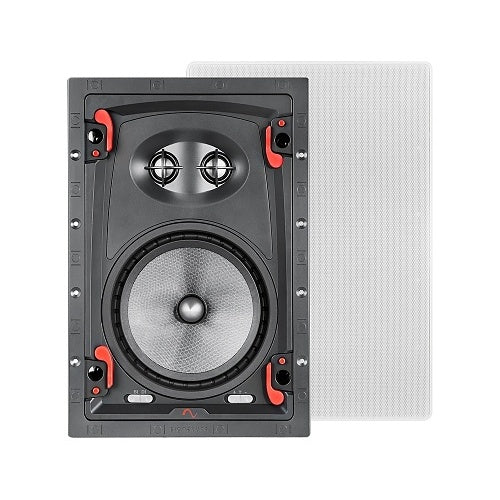

The Episode SIG-76-IWSURR is a premium 6-inch in-wall surround speaker designed for dedicated home theaters and media rooms where immersive side or rear effects are needed without placing visible speaker cabinets around the room.
Its dual titanium tweeters and selectable bipole or dipole operation help create a wider, more enveloping surround field across the seating area. The 6-inch honeycomb fiberglass Nomex woofer adds controlled midbass and smooth tonal matching with other Episode Signature speakers.
Best Use Cases
- Side surround channels: Creates broad surround coverage beside or slightly behind the main seating position.
- Rear surround channels: Adds immersive effects behind the listeners in 5.1, 7.1, and larger theater systems.
- Dedicated home theaters: A strong fit for systems that need premium surround performance and discreet in-wall installation.
- Media rooms: Keeps speakers visually unobtrusive while delivering wider coverage than a basic direct-radiating wall speaker.
- Multi-seat layouts: The dual-tweeter design helps spread surround effects across more than one listening position.
- Rooms with limited floor space: Installs inside the wall instead of using stands, shelves, or cabinet speakers.
Bipole or Dipole: Which Mode Should You Use?
The SIG-76-IWSURR includes a surround-mode switch for selecting bipole or dipole operation. The correct setting depends on speaker placement, room shape, seating distance, and personal preference.
- Bipole mode: Both tweeters operate in phase, producing a broad but more direct and coherent surround presentation. This is generally a good starting point for modern multichannel systems and larger seating areas.
- Dipole mode: The tweeters operate out of phase, creating a more diffuse and less localized surround field. This can work well when the speaker is close to the seating area or when you want effects to feel less directional.
Test both settings from the main seating position and rerun your AV receiver’s speaker calibration after making the final selection.
Who Should Buy This?
This is a good choice if you are building a higher-performance home theater and want discreet side or rear surround speakers with broader dispersion and more tuning flexibility than a standard in-wall speaker.
It makes particular sense when the surround speakers must be installed close to the listeners, when several seats need consistent coverage, or when visible wall-mounted speakers would interfere with the room design.
Who Should Not Buy This?
This is not the best choice for a basic whole-home audio zone or for playing stereo music from one speaker location. It is a single-channel surround speaker, not a dual-voice-coil stereo speaker.
It should not normally be used as the front left, center, or right speaker. A dedicated Episode LCR or standard in-wall speaker will usually provide more precise front-stage imaging and dialogue placement.
This model is also not the most straightforward choice for Dolby Atmos height channels. It is designed primarily for broad side or rear surround coverage, while Atmos channels normally use direct-radiating in-ceiling speakers positioned for overhead effects.
No outdoor or moisture rating is published for this model. Use it in dry indoor locations and choose an all-weather architectural speaker for damp or outdoor installations.
Compatibility and Technical Notes
- Product type: Premium in-wall bipole/dipole surround speaker.
- Sold as: One speaker.
- Woofer: 6-inch honeycomb fiberglass Nomex cone woofer.

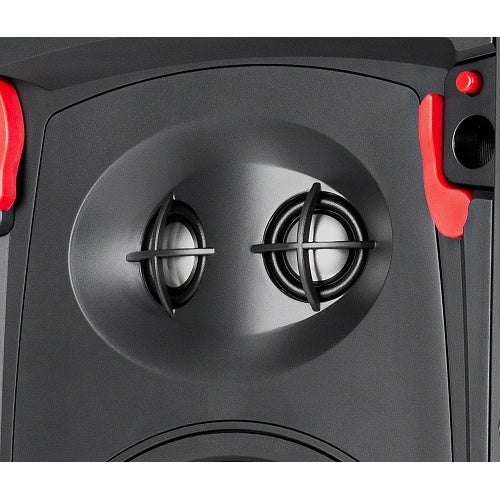

- Tweeters: Dual 3/4-inch pure titanium dome tweeters.
- Surround modes: Selectable bipole or dipole operation.
- Tweeter adjustment: +2 dB, 0 dB, or –2 dB.
- Frequency response: 41Hz to 20kHz.
- Nominal impedance: 8 ohms.
- Power rating: 140W peak.
- Sensitivity: 90 dB.
- Crossover frequency: 2.6kHz.
- Published listening angle: 100 degrees.

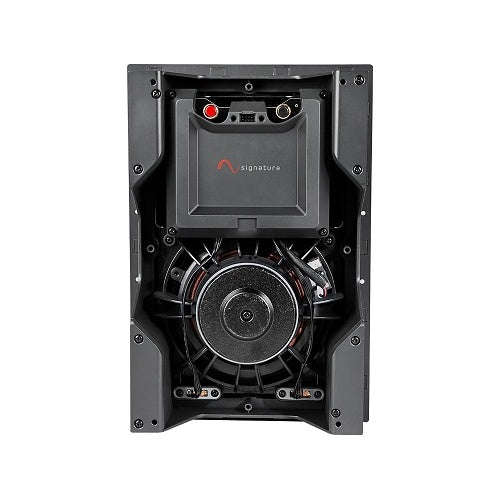

- Connections: Gold-plated push terminals.
- Finished size with grille: Approximately 8.9 inches wide by 13 inches high.
- Cutout size: Approximately 7.6 inches wide by 11.7 inches high.
- Mounting depth: Approximately 3.7 inches.
- Mounting depth with enclosure: Approximately 3.8 inches.
- Weight: Approximately 5.7 lb.
- Clamping range: Suitable for material from approximately 3/8 inch through double 1/2-inch drywall.
- Recommended air volume: Approximately 15 to 20 liters behind the speaker.
- Mounting system: Push Lock by Swarm tool-free mounting.
- Included accessory: Compatible Signature speaker cradle.
- Optional enclosure: ESS-ENCL-IW-6, sold separately.
- Optional cradle: SIG-CRADLE-IW-6, available separately for staged construction or replacement.
- Optional pre-construction bracket: ES-ESS-BRKT-IW, sold separately.
Amplifier and AV Receiver Matching
The SIG-76-IWSURR has an 8-ohm nominal impedance and a published 140W peak rating. The 140W figure should not be treated as a continuous RMS amplifier recommendation.
Use a quality AV receiver or multichannel amplifier that supports passive 8-ohm surround speakers. Clean amplification is more important than choosing an amplifier based only on its maximum published wattage.
After installation, run the receiver’s room-correction system and verify speaker distance, level, crossover, and bass-management settings manually.
Placement Guidance
For side-surround use, install the speakers beside or slightly behind the primary seating area. Try to keep the left and right speakers at similar heights and distances from the listeners.
For rear-surround use, position the speakers behind the main seating area with reasonably symmetrical spacing. Avoid placing one speaker much closer to the listeners than the other unless the AV receiver can compensate correctly.
The ideal location depends on room dimensions, seating position, number of rows, screen location, and the rest of the speaker layout. Plan the complete theater system before cutting the wall.
Installation Considerations
Before cutting the wall, confirm that there is enough room for the 7.6-by-11.7-inch opening, the 3.7-inch mounting depth, the Push Lock mounting system, speaker wiring, and the recommended 15-to-20-liter cavity behind the speaker.
Check carefully for studs, pipes, electrical wiring, HVAC components, blocking, and other hidden obstructions. Confirm both surround locations before cutting so the finished layout remains symmetrical.
Connect each speaker to one assigned surround-channel output from the AV receiver or amplifier. Maintain correct positive-to-positive and negative-to-negative polarity.
Push Lock by Swarm Installation

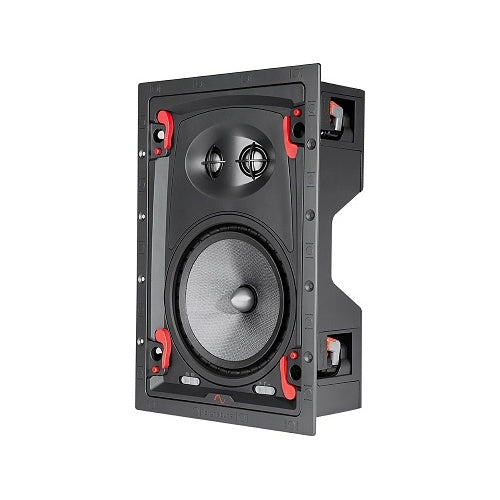

Episode’s Push Lock by Swarm system uses spring-loaded mounting dogs that engage with the press of a button. The mounting dogs can then be tightened further when additional security is needed for uneven or layered wall material.
The speaker can be installed as a complete one-piece assembly, or the speaker core can be removed from the cradle for staged construction. This allows the cradle and optional enclosure to be installed before the finished speaker is placed in the wall.
Optional Enclosure and Cradle
The compatible enclosure is optional and sold separately. It can help create a more consistent air volume, reduce sound transfer into adjoining spaces, and keep insulation or construction debris away from the speaker.
The speaker includes its required cradle. A separate SIG-CRADLE-IW-6 may be purchased when a second cradle is needed for staged construction, replacement, or advance installation.
Does It Need a Subwoofer?
A dedicated subwoofer is recommended for home theater use. Although the speaker’s published response extends to 41Hz, it is intended to reproduce surround effects rather than the deepest movie bass and low-frequency effects.
Use your AV receiver’s bass management to send deeper frequencies to one or more properly sized subwoofers. The final crossover should be selected through calibration and listening rather than relying only on the published frequency-response number.
Good Products to Pair With This Speaker
Need Help Planning Your Surround Layout?
If you are not sure whether this speaker fits your system, send us the room dimensions, seating layout, AV receiver model, existing speakers, and planned channel configuration. We can help you determine speaker quantity, placement, bipole or dipole mode, amplifier compatibility, and supporting equipment before installation.
