Episode ESS-6 Speaker Selector 6 Pairs Amp Protection Multi Room

Play One Stereo Source Across Up to Six Speaker Zones

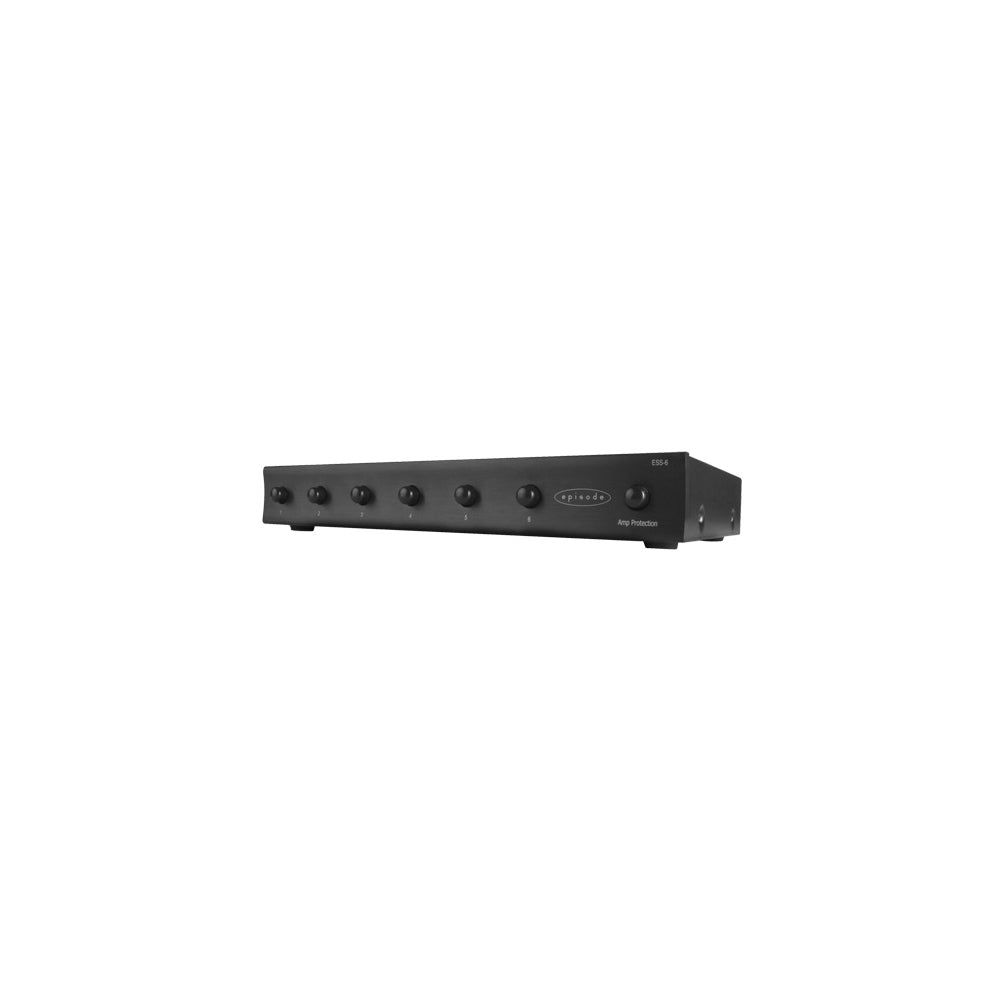

The Episode ESS-6-BLK is a passive speaker selector that connects one stereo amplifier or receiver to as many as six pairs of speakers. Each zone can be switched on or off from the front panel, allowing you to play any pair, multiple pairs, or all connected pairs together.

Best Uses

• Sharing one amplifier across several rooms or listening areas
• Kitchen, bedroom, patio, office, and whole-home speaker systems
• Systems that need simple manual zone selection without apps or networking
• Adding amplifier protection when multiple low-impedance speaker pairs operate together

Amplifier and Speaker Compatibility

• Connects one stereo amplifier to as many as six speaker pairs
• Compatible with conventional 4-ohm and 8-ohm passive speakers
• Power handling: 100W continuous per channel, 200W music power
• Frequency response: 20 Hz to 20 kHz, flat

Engage the AMP PROTECTION switch when multiple speaker pairs are playing together unless every zone uses properly configured impedance-matching volume controls. The protection circuit presents approximately a 4-ohm load, so the connected amplifier must be rated for 4-ohm operation.

If the amplifier has separate A and B speaker outputs, connect the ESS-6-BLK to the A output only. Using both outputs may create an unsafe amplifier load.

Zone and Volume Control

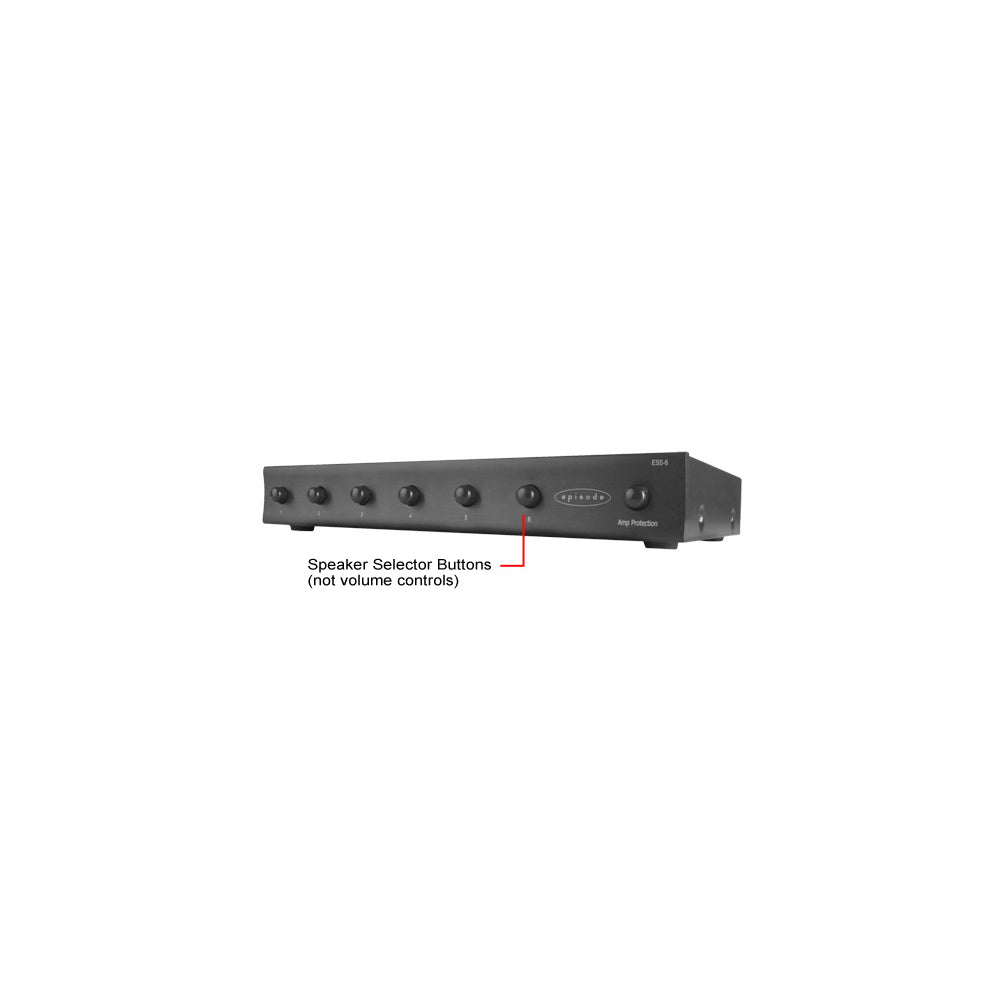

The six front-panel buttons switch each speaker pair on or off. They do not provide individual volume adjustment. The amplifier controls the master volume for every active zone.

Separate impedance-matching in-wall volume controls may be added when individual room volume adjustment is required.

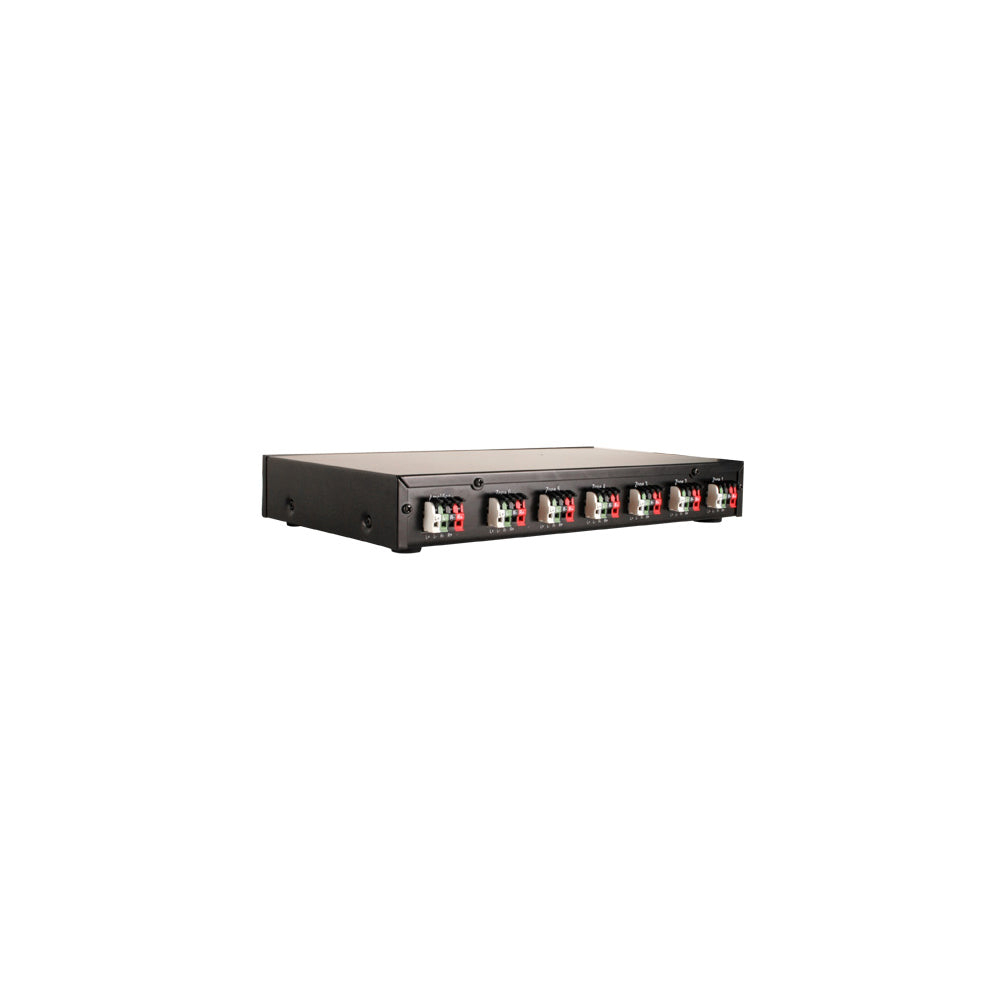

Connections and Wiring

• Removable, spring-loaded connectors
• Supports 14-22 AWG stranded copper speaker wire
• 16 AWG wire recommended for typical installations
• Separate left and right connections for the amplifier and each speaker pair

Maintain correct speaker polarity and confirm that no loose wire strands can short adjacent terminals. Turn off the amplifier before connecting or changing speaker wiring.

Important Limitations

• One shared stereo source for all selected zones
• No independent source selection by room
• No built-in per-zone volume controls
• No Bluetooth, Wi-Fi, app control, Ethernet, PoE, or streaming
• Not designed for 70V or 100V distributed-speaker systems
• Does not amplify audio and requires a separate amplifier or receiver

Included and Sold Separately

Included: One ESS-6-BLK speaker selector, removable speaker connectors, zone labels, and non-skid feet.

Sold separately: Amplifier or receiver, passive speakers, speaker wire, audio source, and optional impedance-matching volume controls.

Dimensions and Warranty

• Dimensions: 11.25 inches wide × 1.75 inches high × 7 inches deep
• Weight: 2.25 lb
• Finish: Black
• Limited lifetime manufacturer warranty

When to Choose Another Product

Choose a multi-zone amplifier or audio matrix when each room needs independent music, volume, or app control. Choose a dedicated 70V amplifier for larger distributed-speaker systems using transformer taps.

Complete the System

• Episode audio products
• Amplifiers
• In-wall and in-ceiling speakers
• Outdoor speakers
• Speaker wire

Need Help Confirming Compatibility?

Send Bear Security Shop your amplifier model, speaker impedance, number of speaker pairs, and desired volume-control setup. We will help confirm whether the ESS-6-BLK is suitable for your system.

Is the Episode ESS-6-BLK sold individually?

Yes. It includes one six-pair speaker selector. The amplifier, speakers, wiring, source equipment, and volume controls are sold separately.

Is the ESS-6-BLK powered?

No. It is a passive switching accessory and does not require AC power. A separate stereo amplifier or receiver is required.

How many speaker pairs can it connect?

It supports up to six pairs of passive speakers. Any pair, combination of pairs, or all six pairs can be selected.

Can every room play different music?

No. Every active zone receives the same stereo source from the connected amplifier. Independent sources require a multi-zone amplifier or audio matrix.

Does each zone have its own volume control?

No. The front buttons only switch zones on and off. The amplifier controls the master volume. Separate impedance-matching volume controls are required for individual room adjustment.

When should amplifier protection be turned on?

Enable AMP PROTECTION when multiple speaker pairs are playing together unless properly configured impedance-matching volume controls are installed in every zone.

Does the amplifier need to support 4 ohms?

Yes. The protection circuit presents approximately a 4-ohm load when engaged, so the amplifier must be rated for stable 4-ohm operation.

How much power can it handle?

The manufacturer specifies 100W continuous per channel and 200W music power. The 200W rating is not continuous power.

Does it support Bluetooth, Wi-Fi, or app control?

No. It is a manual passive speaker selector with no wireless, network, streaming, or app functions.

Can it be used with 70V speakers?

No. It is intended for conventional 4-ohm and 8-ohm passive speakers, not 70V or 100V systems.

What speaker wire does it accept?

The removable connectors support 14-22 AWG stranded copper wire. Episode recommends 16 AWG for typical installations.

What should I confirm before ordering?

Confirm that your amplifier supports a 4-ohm load, the connected speakers are compatible, the amplifier power does not exceed the selector’s rating, and manual on-off zone control meets your needs.
