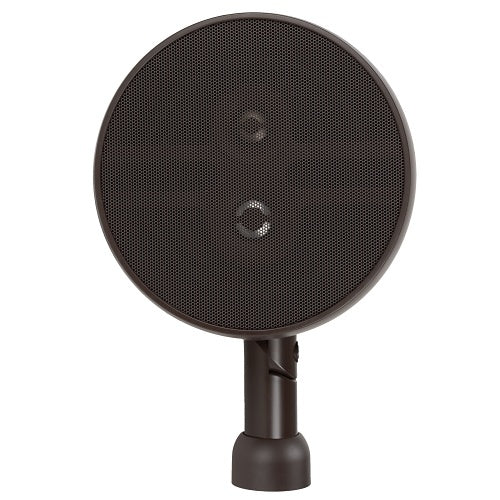

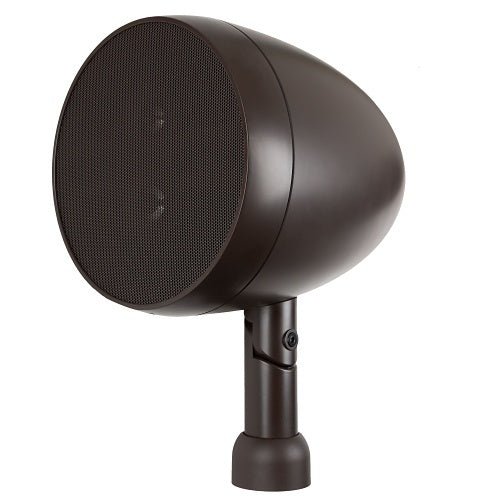

Episode ES-SS8 SurroundScape 8 Inch Landscape Satellite Speaker

High-Output Landscape Audio for Larger Outdoor Spaces

The Episode ES-SS8 SurroundScape is a high-output 8-inch landscape satellite speaker designed for larger patios, backyards, poolside seating areas, gardens, courtyards, outdoor kitchens, and entertainment zones.

Its 3-way design combines an 8-inch polypropylene woofer, a dedicated 1.5-inch aluminum midrange driver, and a 1-inch titanium tweeter. Selectable 70V transformer taps and an 8-ohm bypass allow the same speaker to serve both scalable distributed-audio systems and smaller conventional outdoor systems.

The ES-SS8 is sold individually. A compatible stake, surface, or conduit mount is required and sold separately.

Best Use Cases

• Larger backyards: Provides greater output and fuller sound than smaller landscape satellites.
• Patios and outdoor kitchens: Delivers music closer to seating and activity areas without mounting large cabinets to the building.
• Poolside seating areas: Supports permanently installed audio around suitable lounge and entertainment spaces.
• Gardens and landscaped properties: The brown finish and compact satellite form help the speaker blend among plants, mulch, stone, and hardscape features.
• 70V distributed systems: Selectable transformer taps make it practical to connect several speakers across larger properties and longer cable runs.
• 8-ohm outdoor systems: The bypass setting allows conventional low-impedance operation with a compatible amplifier.
• Outdoor television and theater systems: Can serve as a front, center, surround, or distributed speaker when the complete system is designed correctly.

Who Should Buy This?

This is a strong choice when you want the highest-output satellite in Episode’s 4-inch through 8-inch SurroundScape family.

It makes particular sense for larger or noisier outdoor spaces where the smaller ES-SS4 or ES-SS6 may require more speakers or higher operating levels to provide the desired coverage.

The ES-SS8 is also useful when you want one speaker model that can operate in either a 70V distributed system or an 8-ohm system.

Who Should Not Buy This?

This is not a powered or wireless speaker. It requires outdoor-rated speaker wire and a compatible external amplifier. It does not include Bluetooth, Wi-Fi, an internal amplifier, a battery, or a power cord.

This is not a 100V speaker. Episode publishes selectable 70V transformer taps and an 8-ohm bypass, but no 100V operating settings.

No stake, surface base, or conduit mount is included. Select one compatible mount for every ES-SS8 speaker ordered.

The speaker is not a dedicated subwoofer. Its published response begins at 90Hz, so a compatible outdoor subwoofer is recommended for fuller music and deeper bass.

Sold Individually

The Episode ES-SS8 is sold as one landscape satellite speaker.

A conventional stereo listening zone normally requires at least two speakers, with one handling the left channel and another handling the right channel.

Wide-coverage mono systems and larger properties may use several satellites distributed throughout the listening area.

3-Way Driver Design

Unlike the 2-way ES-SS4 and ES-SS6, the ES-SS8 uses a 3-way driver configuration.

• 8-inch polypropylene woofer: Handles supporting bass and lower midrange content.
• 1.5-inch aluminum midrange: Provides dedicated reproduction of vocals, instruments, and central musical frequencies.
• 1-inch titanium tweeter: Reproduces speech detail and higher-frequency content.

Separating the frequency range among three driver sections helps the larger ES-SS8 maintain clarity and output across demanding outdoor listening areas.

8-Inch Polypropylene Woofer

The ES-SS8 uses an 8-inch polypropylene woofer with a 1-inch voice coil and 12mm of published peak-to-peak excursion.

The larger woofer provides more cone area and output capability than the smaller speakers in the SurroundScape satellite family.

Outdoor spaces do not reinforce low frequencies as strongly as indoor rooms. Although the ES-SS8 provides fuller supporting bass than smaller satellites, it should still be paired with a suitable outdoor subwoofer when deep bass is important.

Dedicated Aluminum Midrange

A 1.5-inch aluminum midrange driver distinguishes the ES-SS8 from the 2-way ES-SS4 and ES-SS6 models.

The dedicated midrange supports vocals, dialogue, guitars, keyboards, and other content that occupies the central portion of the audible spectrum.

This model should be described as a 3-way speaker rather than as a conventional woofer-and-tweeter satellite.

1-Inch Titanium Tweeter

A 1-inch titanium tweeter reproduces higher-frequency detail.

The official product data identifies both the 1-inch titanium tweeter and the separate 1.5-inch aluminum midrange. Both drivers should be included in the product specifications.

90Hz–20kHz Frequency Response

The published anechoic frequency response is 90Hz to 20kHz.

This range is appropriate for vocals, instruments, background music, television audio, and general outdoor entertainment, but the speaker does not reproduce the deepest bass frequencies.

A matching landscape subwoofer is recommended for a more balanced outdoor system, especially for bass-heavy music, larger properties, and higher listening levels.

140W RMS and 180W Peak Power Handling

Episode publishes 140W RMS and 180W peak power handling for the ES-SS8.

These figures describe the passive speaker’s power-handling capability; they are not built-in amplifier output ratings.

Amplifier selection should also consider the selected 70V tap or 8-ohm mode, speaker quantity, cable distance, preferred volume, and the amplifier manufacturer’s supported load.

89 dB Sensitivity

The official sensitivity rating is 89 dB.

The ES-SS8 has the highest published sensitivity among the ES-SS4, ES-SS6, and ES-SS8 satellite models, supporting stronger output from a given amount of amplifier power.

Final outdoor volume still depends on speaker spacing, mounting angle, environmental noise, listening distance, amplifier capacity, and system equalization.

70V and 8-Ohm Operating Modes

The rear selector provides four 70V transformer taps and one conventional 8-ohm bypass setting:

• 7.5W: For lower-volume background-music areas or locations closer to listeners.
• 15W: A useful starting point for moderate-volume distributed audio.
• 30W: Provides additional output for larger or noisier zones.
• 60W: The highest available 70V tap for locations requiring greater output.
• 8 ohms: Bypasses the transformer for compatible conventional low-impedance amplification.

Choose the operating mode before connecting the amplifier. An incorrect selector position can damage the speaker or amplifier.

When to Use 70V

Use 70V operation when the system includes several speakers, longer wire runs, or a larger property where scalable wiring is important.

In a 70V system, add the selected tap wattage of all speakers connected to an amplifier channel. The combined load must remain within the amplifier’s rated 70V output with appropriate headroom.

For example, six ES-SS8 speakers set to 15W create a total speaker load of 90W. Changing those six speakers to 30W creates a 180W load.

When to Use 8 Ohms

Use the 8-ohm bypass for a smaller conventional system connected to an amplifier rated for an 8-ohm speaker load.

Eight-ohm operation is often suitable for a stereo pair or a smaller number of speakers where maximum individual-speaker performance is more important than distributed-system scalability.

Do not connect several 8-ohm speakers in parallel without calculating the resulting load. Two parallel 8-ohm speakers create a 4-ohm load, and additional parallel speakers reduce the impedance further.

No 100V Operation

Episode publishes 70V transformer settings and an 8-ohm bypass for this model.

No 100V tap positions are listed. Do not connect the ES-SS8 to a 100V speaker output unless Episode provides separate written compatibility guidance.

DSP Amplifier Recommendation

The ES-SS8 can work with compatible amplification, but Episode recommends pairing SurroundScape speakers with an Episode Hybrid 70V/8-ohm DSP amplifier and the appropriate ES-SS8 preset.

The DSP preset can provide model-specific filtering and equalization while helping integrate the satellites with a matching outdoor subwoofer.

When using a different amplifier, confirm the output mode, impedance, power capacity, high-pass filtering, equalization, and subwoofer crossover requirements before installation.

IP67 Outdoor Protection

The ES-SS8 uses an IP67-rated enclosure designed to prevent dust and water intrusion.

Episode states that the enclosure can withstand demanding moisture conditions, including occasional submersion under the rating’s test conditions.

IP67 should not be interpreted as approval for permanent underwater installation. Do not install the speaker inside a swimming pool, pond, fountain, or location where it will remain submerged.

UV-Resistant Brown Finish

The speaker is finished in brown with UV-resistant paint intended to reduce fading from sunlight exposure.

The earth-tone finish helps the speaker blend into mulch, planting beds, soil, stone, and other landscape materials.

Do not paint over the drivers, grille openings, selector, mounting joint, connection block, or other functional components.

Quick-Connect Threaded Mounting System

The SurroundScape quick-connect mounting system uses threaded aluminum to connect the speaker to its separately sold mount.

Position the speaker on the selected mount, lower the threaded collar, and rotate the collar until it is fully secured.

The mounting joint allows the speaker angle to be adjusted toward the intended listening area using a Phillips screwdriver.

Compatible Mounting Options

• ES-SS-STAKE: In-ground stake mount for soil, mulch, and suitable landscaped areas.
• ES-SS-SURFACE: Compact surface mount for decks, concrete, posts, and stable hardscape surfaces.
• ES-SS-CONDUIT: Conduit-mount assembly for installations requiring protected wiring and adjustable elevation.

All mounts are sold individually and separately from the speaker.

The product should not be advertised as including “ground, surface, or stake mounting.” It is compatible with stake, surface, and conduit mounts after the appropriate accessory is purchased.

Integrated Screw-Down Connector Block

The ES-SS8 uses an integrated wiring connector block hidden inside the lower mounting arm.

Speaker wire connects to screw-down positive and negative terminals, eliminating the need for exposed silicone-filled wire nuts at the satellite connection.

Insert the stripped conductors fully so no bare copper remains exposed, tighten the terminal screws, and return the connector block and cable into the mounting shaft before attaching the speaker.

Protected Transformer Selector

The transformer-tap selector is positioned behind a silicone cover on the rear of the speaker.

Remove the cover, select the correct 70V tap or 8-ohm bypass, and reinstall the cover securely before normal outdoor operation.

The installation guide instructs users to configure the selector before connecting the amplifier.

Speaker-Wire Guidance

Episode recommends direct-burial speaker cable or cable installed in suitable conduit for outdoor runs.

Typical recommended wire sizes are:

• Runs up to approximately 100 feet: 16 AWG or larger.
• Runs up to approximately 200 feet: 14 AWG or larger.
• Runs up to approximately 300 feet: 12 AWG or larger.

Wire size also depends on speaker impedance, amplifier power, total system load, and acceptable signal loss. Longer or higher-power 8-ohm systems may require additional engineering.

Planning the Cable Route

Plan the outdoor wiring path before digging or mounting equipment.

Avoid walking paths, lawn-mower routes, irrigation equipment, roots, pets, heat sources, and locations where future landscaping work may damage the cable.

Determine the locations of underground electrical, gas, communications, and water utilities before excavation. Follow applicable local requirements before digging.

Placement for Stereo Listening

A stereo outdoor area normally uses one left speaker and one right speaker, with a subwoofer recommended for the best full-range performance.

Position the speakers so the primary listening area remains reasonably centered between the left and right channels.

Aim the satellites toward listeners while avoiding trees, walls, dense shrubs, rocks, and other objects that can block or absorb sound.

Placement for Wide Coverage

Wide-coverage systems commonly use several speakers distributed throughout the property, often operating in mono so listeners hear consistent content while moving around.

Episode identifies approximately 10 to 12 feet between speakers as a useful starting point for many wide-coverage layouts and advises against spacing them more than approximately 25 to 30 feet apart.

The exact spacing depends on the speaker tap, mounting angle, landscape layout, ambient noise, listening distance, and desired volume.

Avoid Sprinklers and Direct Heat

Do not install the ES-SS8 directly beside a sprinkler or in the path of repeated high-pressure irrigation.

Also avoid direct heat sources such as outdoor grills, fire features, and patio heaters.

Outdoor weather resistance does not eliminate the need for thoughtful placement and routine inspection.

Test the Complete System

After installation, listen from several locations and adjust speaker angles, amplifier level, and 70V tap settings as needed.

Confirm that the total 70V tap load remains within the amplifier’s available output.

Episode recommends operating the system for approximately 30 minutes during commissioning to verify reliable performance.

Technical Specifications

• Product type: Passive 3-way outdoor landscape satellite speaker.
• Series: Episode SurroundScape.
• Model: ES-SS8.
• Sold as: One speaker.
• Color: Brown.
• Woofer: 8-inch polypropylene cone.
• Woofer voice coil: 1 inch.
• Woofer excursion: 12mm peak to peak.
• Midrange: 1.5-inch aluminum driver.
• Tweeter: 1-inch titanium driver.
• Frequency response: 90Hz to 20kHz.
• Published crossover frequency: 3.2kHz.
• Nominal bypass impedance: 8 ohms.
• Power handling: 140W RMS and 180W peak.
• Sensitivity: 89 dB.
• Transformer taps: 7.5W, 15W, 30W, and 60W.
• 8-ohm bypass: Yes.
• 100V operation: Not published.
• Weather rating: IP67.
• Connection type: Integrated screw-down connector block.
• Mount included: No.
• Compatible mounts: Stake, surface, and conduit mounts sold separately.
• Internal amplifier: None.
• Warranty: Five-year manufacturer warranty, subject to current terms.

Dimensions and Weight

• Dimensions: Approximately 15 inches long, 9.3 inches wide, and 11.7 inches high.
• Product weight: Approximately 8.3 lb.
• Shipping weight: Approximately 9.9 lb.

The final installed height and footprint depend on whether the speaker uses the stake, surface, or conduit mount.

Does It Need a Subwoofer?

A compatible outdoor subwoofer is strongly recommended for balanced full-range music.

The ES-SS8 begins at a published 90Hz, so it is designed primarily for upper bass, midrange, vocals, and high-frequency content rather than deep bass.

A distributed system using several satellites and one or more properly placed outdoor subwoofers will generally sound fuller and more consistent than satellites alone.

When to Choose Another SurroundScape Model

Choose the ES-SS4 when compact dimensions, visual discretion, and lower amplifier demand are more important than maximum output.

Choose the ES-SS6 when you need a balance between cabinet size, output, sensitivity, and bass capability.

Choose the ES-SS8 when the listening area is larger, environmental noise is higher, or the strongest satellite output in the family is required.

Choose an Episode Radiance bollard speaker when 360-degree dispersion and optional integrated landscape lighting are the main priorities.

Choose a rock speaker when the enclosure should imitate natural stone instead of using an aimed satellite design.

Good Products to Pair With This Speaker

• Outdoor Speakers to compare landscape, rock, bollard, and surface-mount options.
• Episode Products for matching satellites, outdoor subwoofers, amplifiers, and mounts.
• Amplifiers for compatible 70V and 8-ohm DSP amplification.
• Speaker Wires for properly rated direct-burial and outdoor cable.
• Subwoofers for deeper low-frequency support in outdoor entertainment systems.
• Outdoor TVs for patio and backyard television systems.
• Power Management Solutions to protect the indoor amplifier, streaming source, network equipment, and control components.

Need Help Planning Your Landscape Audio System?

Send us the property dimensions, listening areas, speaker quantity, cable distances, preferred mounting locations, amplifier model, and whether you plan to use 70V or 8-ohm operation. We can help confirm speaker spacing, transformer taps, amplifier capacity, mounts, wiring, and subwoofer requirements.

Is the Episode ES-SS8 sold individually or as a pair?

It is sold individually. Order the required quantity based on the outdoor layout and system design.

Is a stake or mounting base included?

No. The speaker requires a compatible stake, surface, or conduit mount, sold separately.

Which mounts are compatible?

The compatible options are the ES-SS-STAKE, ES-SS-SURFACE, and ES-SS-CONDUIT mounts.

Is this a powered speaker?

No. It is a passive landscape speaker that requires speaker wire and a compatible external amplifier.

Does it include Bluetooth or Wi-Fi?

No. Bluetooth, Wi-Fi, streaming, and app control must come from the connected amplifier or source equipment.

Is the ES-SS8 a 2-way or 3-way speaker?

It is a 3-way speaker with an 8-inch woofer, 1.5-inch aluminum midrange driver, and 1-inch titanium tweeter.

What size woofer does it use?

It uses an 8-inch polypropylene woofer with a 1-inch voice coil.

What is the woofer excursion?

Episode publishes 12mm of peak-to-peak woofer excursion.

What type of midrange driver does it use?

It uses a dedicated 1.5-inch aluminum midrange driver.

What type of tweeter does it use?

It uses a 1-inch titanium tweeter.

What is the frequency response?

The published anechoic frequency response is 90Hz to 20kHz.

What is the published crossover frequency?

The published crossover frequency is 3.2kHz.

What is the sensitivity?

The official sensitivity rating is 89 dB.

What is the RMS power handling?

The official specification lists 140W RMS power handling.

What is the peak power handling?

The official peak specification is 180W.

Is 140W the speaker’s output?

No. The ES-SS8 is passive. The 140W figure describes RMS power handling, not built-in amplifier output.

Does the ES-SS8 support 70V operation?

Yes. It provides selectable 7.5W, 15W, 30W, and 60W transformer taps.

Does it support conventional 8-ohm operation?

Yes. It includes an 8-ohm bypass setting for a compatible low-impedance amplifier.

Does it support 100V operation?

No 100V settings are published for this model. It should be used only in its documented 70V or 8-ohm modes.

How do I select between 70V and 8 ohms?

Use the rear selector behind the silicone cover. Configure the correct setting before connecting the amplifier.

Can I change the selector while the system is powered?

No. Turn off and disconnect the amplifier before changing transformer taps or switching to 8-ohm mode.

How do I choose the correct 70V tap?

Select the tap according to the required volume, listening distance, speaker quantity, background-noise level, and available amplifier power.

How do I calculate the 70V amplifier load?

Add the selected tap wattage of every speaker connected to the channel. Keep the combined load within the amplifier’s rated 70V output with appropriate headroom.

Can several ES-SS8 speakers use different tap settings?

Yes. Each speaker can use a different supported 70V tap, provided the complete calculated load remains within the amplifier’s capacity.

Can I connect two ES-SS8 speakers to one 8-ohm amplifier channel?

Two speakers connected in parallel create a 4-ohm load. Do this only when the amplifier manufacturer confirms support for that load and the combined power requirement.

Is a DSP amplifier required?

The speaker can operate with compatible amplification, but Episode recommends an Episode Hybrid 70V/8-ohm DSP amplifier using the appropriate ES-SS8 preset for best results.

Does the speaker need a subwoofer?

A subwoofer is strongly recommended for fuller outdoor music because the ES-SS8’s published response begins at 90Hz.

Can the subwoofer connect to the same 70V line?

That depends on the selected subwoofer model. Many Episode SurroundScape burial subwoofers are 8-ohm products and require a separately configured amplifier channel.

What does IP67 mean?

IP67 indicates protection against dust and temporary water immersion under the rating’s test conditions. It does not approve the speaker for permanent underwater installation.

Can the ES-SS8 remain outdoors?

Yes. It is designed for permanent outdoor installation when correctly mounted, wired, aimed, and maintained.

Can it be installed inside a pool or pond?

No. Occasional submersion under an IP67 test condition is not the same as permanent underwater use.

Can it be installed near a sprinkler?

Episode recommends avoiding close proximity to sprinklers, even though the enclosure is IP67 rated.

Can it be installed near a grill or patio heater?

Avoid direct heat sources such as grills, fire features, and heaters.

What color is the speaker?

The ES-SS8 is available in a brown UV-resistant finish designed to blend into landscaping.

How does the speaker attach to the mount?

A threaded-aluminum collar secures the speaker to the compatible stake, surface, or conduit mount.

Can the speaker be aimed?

Yes. Loosen the screw at the mounting joint, adjust the speaker toward the listening area, and retighten the screw.

What type of speaker connection does it use?

It uses an integrated screw-down positive and negative connector block hidden inside the lower mounting shaft.

Are silicone-filled wire nuts required at the speaker?

No. The integrated connector block replaces exposed wire nuts at the satellite-speaker connection.

What speaker wire should I use?

Use direct-burial-rated speaker cable or cable installed in suitable conduit. Episode identifies 16- to 12-gauge wire as typical, depending on distance and amplifier power.

Which wire gauge is recommended for a 100-foot run?

Episode recommends 16 AWG or larger for runs up to approximately 100 feet.

Which wire gauge is recommended for a 200-foot run?

Episode recommends 14 AWG or larger for runs up to approximately 200 feet.

Which wire gauge is recommended for a 300-foot run?

Episode recommends 12 AWG or larger for runs up to approximately 300 feet.

How far apart should landscape speakers be placed?

Episode identifies approximately 10 to 12 feet as a typical starting point for wide-coverage areas and recommends avoiding spacing greater than approximately 25 to 30 feet. The final layout depends on the property and listening goals.

Can it be used for stereo listening?

Yes. Use one speaker for the left channel and another for the right channel, with a subwoofer recommended for fuller performance.

Can it be used in a mono wide-coverage system?

Yes. Mono is often preferred when several speakers cover a large outdoor area where consistent sound is more important than stereo imaging.

Can it be used in an outdoor theater?

Yes. It can be assigned to compatible front, center, or surround channels when the receiver, amplification, placement, and complete channel layout are planned correctly.

What are the dimensions?

It measures approximately 15 inches long, 9.3 inches wide, and 11.7 inches high without a separately sold mount.

How much does it weigh?

The speaker weighs approximately 8.3 lb.

What is the shipping weight?

The published shipping weight is approximately 9.9 lb.

What is the warranty?

Episode publishes a five-year manufacturer warranty, subject to current warranty terms.

What should I check before ordering?

Check speaker quantity, selected operating mode, amplifier capacity, transformer taps, cable length, wire gauge, mount type, mounting locations, subwoofer requirements, and whether the system will use 70V or 8-ohm operation.
