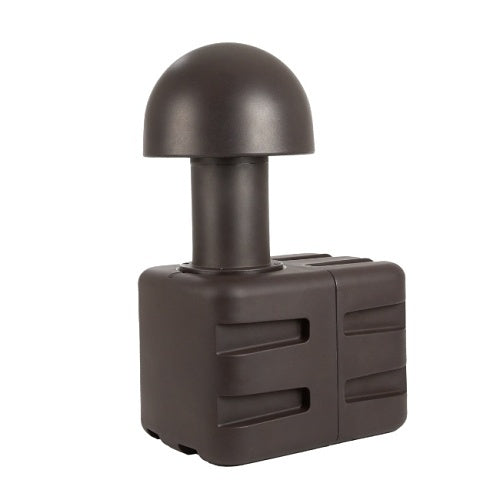

Episode ES-SS-SUB8 SurroundScape 8 Inch Burial Outdoor Subwoofer

Add Deep Bass Without a Visible Outdoor Subwoofer

The Episode ES-SS-SUB8 is a passive 8-inch burial subwoofer designed to add low-frequency impact to SurroundScape landscape audio systems while keeping most of the enclosure hidden underground.

Key Specifications

• 8-inch polypropylene high-excursion woofer
• 2-inch voice coil
• 16 mm peak-to-peak excursion
• 300W RMS power handling
• 390W peak power handling
• 8-ohm nominal impedance
• 29 Hz to 120 Hz anechoic frequency response
• 86 dB sensitivity
• IP67-rated construction
• Brown earth-tone finish

The 390W specification is a peak rating, not RMS. Match the subwoofer with an external amplifier capable of safely driving an 8-ohm passive subwoofer load.

Important 70V Compatibility Note

The ES-SS-SUB8 itself is an 8-ohm subwoofer and does not include a 70V transformer or selectable transformer taps. Do not connect it directly to a 70V speaker output unless the amplifier provides a separate compatible 8-ohm output mode.

Outdoor Burial Design

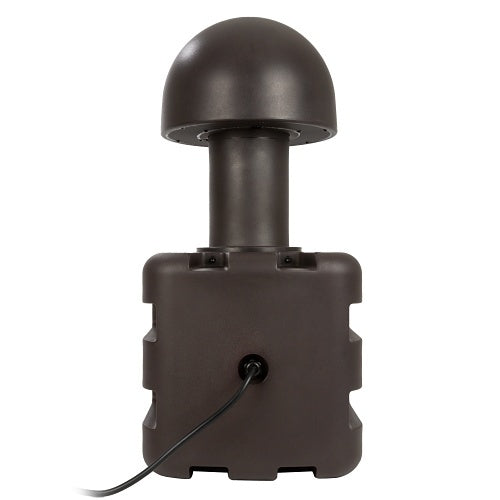

The enclosure is designed to be buried with only the ported mushroom section remaining above the landscape. This keeps the subwoofer visually discreet while allowing the port to operate correctly.

The IP67-rated construction protects against dust and moisture exposure. The port should remain above grade, and the subwoofer should not be treated as equipment intended for permanent underwater operation.

What Is Required

• Compatible external 8-ohm amplifier
• Outdoor-rated direct-burial speaker wire
• Weather-resistant wire connections
• Compatible outdoor satellite speakers when building a complete landscape system

The subwoofer uses bare-wire connections and the manufacturer specifies two silicone wire nuts for the connection method.

Dimensions and Weight

• Dimensions: 15.2 × 10.2 × 22.9 inches
• Weight: 19.8 lb
• Sold as: Each
• Manufacturer limited warranty: 5 years

Complete the System

• Episode audio products
• Outdoor speakers
• Amplifiers
• Speaker wire
• Power management solutions

Need Help Confirming Compatibility?

Send Bear Security Shop your amplifier model, satellite speakers, outdoor-area size, and planned wiring. We can help confirm amplifier compatibility and how the ES-SS-SUB8 should fit into your outdoor audio system.

Is the Episode ES-SS-SUB8 sold individually?

Yes. It is sold as one passive 8-inch burial subwoofer.

Is the ES-SS-SUB8 powered?

No. It is passive and requires a separate amplifier capable of driving an 8-ohm subwoofer load.

How much power can it handle?

Episode specifies 300W RMS power handling and 390W peak power handling.

Is this a 70V subwoofer?

No. The ES-SS-SUB8 has an 8-ohm nominal impedance and no transformer tap settings. It should not be connected directly to a 70V speaker output.

Can I use an Episode Hybrid 70V/8-ohm amplifier?

Yes, when the amplifier channel is configured for a compatible 8-ohm output. The subwoofer itself remains an 8-ohm load.

What is its frequency response?

Episode specifies an anechoic frequency response of 29 Hz to 120 Hz.

Is it waterproof?

It is IP67 rated for strong protection against dust and moisture. However, the ported mushroom section must remain above the landscape, so it should not be treated as a permanently underwater subwoofer.

Is the entire subwoofer buried?

Most of the enclosure is buried underground, while the ported mushroom section remains above the surface.

Does it include an amplifier?

No. Amplification, speaker wire, sources, and satellite speakers are sold separately.

What are the dimensions and weight?

It measures approximately 15.2 × 10.2 × 22.9 inches and weighs 19.8 lb.

What should I confirm before ordering?

Confirm that your amplifier supports an 8-ohm passive subwoofer, that sufficient amplifier power is available, and that your burial location allows proper placement of the port above grade.
