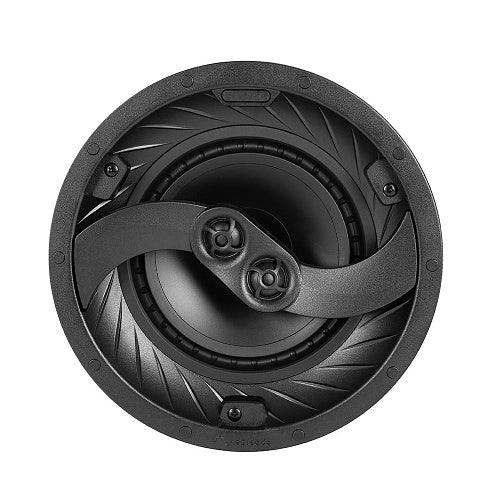

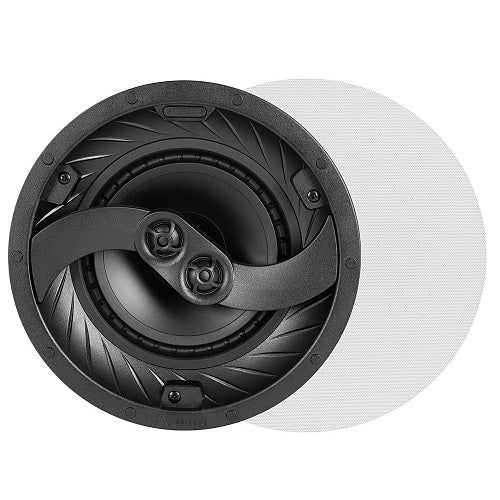

Episode ES-CORE-36-IC-DVCS Series 6" In-Ceiling DVC Surround Speaker

One In-Ceiling Speaker with Two Flexible Audio Modes

The Episode ES-CORE-36-IC-DVCS is a 6-inch-class in-ceiling architectural speaker designed for two different applications: stereo sound from one ceiling location or single-channel surround sound in a home theater or media room.

In Dual Voice Coil mode, the speaker accepts separate left and right amplifier channels so one installed speaker can reproduce stereo audio. In Surround mode, it operates as a single-channel, dual-tweeter bipole speaker for a wider, more diffused surround effect.

Best Use Cases

• Home theater surround channels: Use Surround mode to create a wider, more diffused surround field from one ceiling location.
• Media rooms: A practical option when ceiling placement is preferred over visible bookshelf or wall-mounted surround speakers.
• Single-speaker stereo zones: Use Dual Voice Coil mode to reproduce left and right audio from one speaker in a smaller room.
• Bedrooms and offices: Useful when there is only enough ceiling space or wiring access for one speaker.
• Hallways and dressing areas: Provides stereo playback without requiring a traditional two-speaker layout.
• Whole-home audio: Can serve compact indoor listening zones where discreet installation and flexible wiring matter.

Choose the Correct Operating Mode

The ES-CORE-36-IC-DVCS includes a selector switch for choosing between Dual Voice Coil and Surround operation. Select the mode before completing the installation and wiring.

• Dual Voice Coil mode: Connect the amplifier’s left channel to one speaker input and the right channel to the other input. This allows one speaker to reproduce both stereo channels.
• Surround mode: Connect one surround amplifier channel to the terminal marked IN1/SURR. Do not connect separate stereo inputs while the speaker is in Surround mode.

Who Should Buy This?

This is a good choice if you need one ceiling speaker to perform a role that would normally require two separate speakers, or if you want a discreet ceiling-mounted surround speaker with a wider dual-tweeter presentation.

It makes particular sense for homeowners, AV installers, media-room projects, and whole-home audio systems where ceiling space, speaker-wire access, or room layout limits the number of speaker locations.

Who Should Not Buy This?

This is not the best choice if you have room for two properly spaced speakers and want the widest possible conventional stereo imaging. A dedicated left and right speaker pair will generally create stronger stereo separation than one single-point stereo speaker.

This model is also not weather rated. Do not use it outdoors, in showers, or in locations exposed to water, condensation, or sustained high humidity. Choose an Episode all-weather in-ceiling speaker for those environments.

It is sold individually. For installations requiring two or more speakers, order the correct quantity.

Compatibility and Technical Notes

• Product type: In-ceiling Dual Voice Coil / Surround hybrid speaker.
• Operating modes: Selectable Dual Voice Coil stereo or single-channel Surround mode.
• Woofer: 6.5-inch vacuum-formed polypropylene woofer.
• Tweeters: Dual 3/4-inch silk-dome tweeters.
• Frequency response: 50Hz to 20kHz.
• Nominal impedance: 8 ohms.
• Minimum impedance: 4.5 ohms.
• Recommended amplifier power: 10W to 120W RMS.
• Sensitivity: 88 dB.
• Crossover frequency: 2.2kHz.
• Dispersion: 110 degrees.
• Connections: Gold-plated push terminals.
• Finished dimensions: Approximately 9.2 inches in diameter by 3.8 inches deep.
• Cutout diameter: 8.2 inches.
• Mounting depth: 3.8 inches.
• Clamping range: Suitable for ceiling material approximately 0.25 to 1.25 inches thick.
• Grille: Powder-coated micro-perforated steel bezel-less grille.
• Weight: Approximately 3 lb per speaker.
• Weather resistance: Not weather rated; intended for dry indoor installations.
• Sold as: One speaker.
• Optional new-construction bracket: Episode ES-ESS-BRKT-IC-6, sold separately.

Amplifier and Receiver Matching

The official specification lists an 8-ohm nominal impedance with a 4.5-ohm minimum. Confirm that the connected amplifier or AV receiver can safely support the speaker and the planned wiring configuration.

Episode recommends amplification between 10W and 120W RMS. More amplifier power does not automatically mean better performance. Use clean amplification, avoid audible distortion, and configure receiver crossover settings appropriately for the room and system.

Installation Considerations

Before cutting the ceiling, confirm that there is enough space for the 8.2-inch cutout, 3.8-inch mounting depth, dog-ear clamps, speaker wiring, and surrounding structure.

Check for joists, pipes, HVAC ducts, electrical wiring, and other obstructions. For new construction, the compatible Episode pre-construction bracket can reserve the correct speaker location before drywall is installed.

Strip approximately 1/4 inch of insulation from each speaker-wire conductor, insert the wire into the correct terminals, and maintain proper positive-to-positive and negative-to-negative polarity.

Insert the speaker into the opening and tighten the three dog-ear screws until the speaker is secure. Do not overtighten the clamps, especially when using a drill or powered screwdriver.

Using Dual Voice Coil Mode

Dual Voice Coil mode is useful when one ceiling location must reproduce both the left and right channels. Connect the left amplifier channel to one speaker input and the right channel to the second input.

This is particularly useful in compact rooms and narrow spaces where installing a separate left and right speaker would be impractical.

Using Surround Mode

Surround mode converts the speaker into a single-channel, dual-tweeter bipole design. Connect the assigned surround channel from the AV receiver to the IN1/SURR input.

The two tweeters help create a wider and more diffused sound field, making the speaker suitable for side or rear surround reproduction where highly localized sound may be less desirable.

Do You Still Need a Subwoofer?

The speaker is rated down to 50Hz, but it is not a replacement for a dedicated subwoofer. For home theater use, pair it with a properly sized subwoofer and configure the AV receiver’s bass management so deeper low-frequency effects are handled by the subwoofer.

Good Products to Pair With This Speaker

• In-Wall & In-Ceiling Speakers to compare additional architectural speaker sizes and applications.
• Episode Speakers for matching front, center, surround, outdoor, and whole-home audio options.
• Amplifiers for compatible home audio and multi-zone amplification.
• Speaker Wires for in-wall-rated wiring and installation planning.
• Subwoofers for deeper bass in home theater and music systems.

Need Help Planning the Speaker Layout?

If you are not sure whether to use this speaker in stereo or surround mode, send us the room dimensions, listening position, amplifier or receiver model, and the number of available ceiling locations. We can help you choose the correct mode, speaker quantity, wiring plan, and supporting audio equipment.

What is the Episode ES-CORE-36-IC-DVCS used for?

It can be used as a single-speaker stereo solution for a smaller indoor room or as a single-channel bipole surround speaker in a home theater or media room.

What does DVCS mean?

DVCS refers to the speaker’s Dual Voice Coil / Surround design. A selector switch allows it to operate in Dual Voice Coil stereo mode or single-channel Surround mode.

Can one speaker play both left and right stereo channels?

Yes. In Dual Voice Coil mode, connect the left amplifier channel to one input and the right channel to the other input. One installed speaker will then reproduce both stereo channels.

How do I wire it in Surround mode?

Set the selector switch to Surround and connect one surround amplifier channel to the IN1/SURR input. Do not connect separate left and right stereo inputs while the speaker is in Surround mode.

Is this speaker sold individually or as a pair?

It is sold individually. Order the quantity required for your room and speaker layout.

Is this a 6-inch or 6.5-inch speaker?

Episode markets it as a 6-inch-class architectural speaker, while the official technical specification lists a 6.5-inch polypropylene woofer.

What is the speaker impedance?

The official specification is 8 ohms nominal with a 4.5-ohm minimum. The 4.5-ohm figure should not be presented as the nominal impedance.

What amplifier power is recommended?

Episode lists a recommended amplifier power range of 10W to 120W RMS. Confirm that the amplifier also supports the speaker’s impedance and intended wiring mode.

What is the frequency response?

The published frequency response is 50Hz to 20kHz.

Does it need a subwoofer?

For background music, a subwoofer may be optional. For home theater and deeper music bass, pairing it with a dedicated subwoofer is recommended.

Can it be used as a Dolby Atmos height speaker?

It can reproduce a height channel when the receiver, room layout, and speaker placement are appropriate. However, its distinguishing feature is selectable stereo or bipole surround operation, so confirm that it matches the planned Atmos layout before installation.

Is the tweeter adjustable or pivoting?

The ES-CORE-36-IC-DVCS uses dual silk-dome tweeters and selectable operating modes. The official specification does not list a pivoting tweeter for this model.

What size ceiling cutout is required?

The required cutout diameter is approximately 8.2 inches.

How much mounting depth is required?

The speaker requires approximately 3.8 inches of mounting depth, plus adequate space for wiring and installation access.

What ceiling thickness can the clamps support?

The dog-ear clamping range supports ceiling material approximately 0.25 to 1.25 inches thick.

Is a new-construction bracket available?

Yes. The compatible Episode ES-ESS-BRKT-IC-6 pre-construction bracket is available separately for suitable new-build installations.

Can this speaker be installed outdoors or in a shower?

No. This model is not weather rated. Use it only in dry indoor locations and choose an all-weather Episode model for outdoor or high-moisture installations.

Can it be installed in an existing finished ceiling?

Yes. Use the correct cutout template, check carefully for hidden obstructions, route the speaker wire, and secure the speaker using the built-in dog-ear clamps.

What should I check before ordering?

Check the desired stereo or surround application, amplifier compatibility, speaker quantity, ceiling cutout, mounting depth, ceiling material, wire routing, room conditions, and whether a subwoofer or additional speakers are needed.
