Episode ES-500-AW-4 Outdoor Surface Mount Speaker Pair 4 Inch

Compact Outdoor Stereo Sound for Smaller Spaces

The Episode ES-500-AW-4 is a compact outdoor surface-mount speaker pair designed for balconies, porches, smaller patios, outdoor TV areas, covered seating spaces, and other installations where a larger speaker cabinet would be difficult to place.

Although Episode markets this as its 4-inch size-class model, each speaker uses an actual 5-inch polypropylene woofer with vacuum-deposited titanium and a 3/4-inch pure titanium dome tweeter. The pair combines clear everyday sound with IPX5 weather resistance, adjustable mounting brackets, and a compact cabinet available in black or white.

Best Use Cases

• Balconies: Provides a compact stereo solution where wall space and speaker clearance are limited.
• Smaller patios: A practical choice for background music and everyday outdoor listening.
• Covered porches: Can mount beneath an eave or awning and aim toward the primary seating area.
• Outdoor TV areas: Delivers clearer and wider sound than relying only on the television’s built-in speakers.
• Outdoor dining spaces: Adds music without requiring large cabinets or an in-ground landscape system.
• Garages and workshops: Suitable for appropriate indoor areas where moisture or temperature changes may make standard indoor speakers less desirable.
• Discreet installations: The smaller enclosure is easier to integrate with trim, siding, columns, and compact architectural spaces.

Who Should Buy This?

This pair is a good choice if you want permanently mounted outdoor stereo sound in a smaller listening area and already have, or plan to install, a compatible amplifier or AV receiver.

It makes particular sense when visual discretion and compact mounting matter more than maximum volume or deep bass. It is also a useful alternative to portable Bluetooth speakers when you want a fixed, wired system that is always ready to use.

Who Should Not Buy This?

This is not a powered or wireless speaker system. The speakers require an external amplifier or AV receiver and speaker wire. They do not include Bluetooth, Wi-Fi, an internal amplifier, or a power cord.

This is also not the correct model for a commercial 70V or 100V distributed-audio system. The ES-500-AW-4 is a conventional 8-ohm speaker pair without transformer taps. Choose the ECS-500-AW70V-4 when a constant-voltage audio system is required.

If you need higher output, stronger bass, or broader coverage for a large patio or backyard, consider the larger ES-500-AW-6 or ES-500-AW-8 instead.

The IPX5 rating does not make these speakers waterproof, submersible, or suitable for underwater or marine installation.

Sold as a True Stereo Pair

The ES-500-AW-4 package includes two passive speakers. Connect one speaker to the amplifier’s left channel and the other to the right channel to create a conventional stereo outdoor listening zone.

This is not a dual-voice-coil speaker. Each cabinet receives one amplifier channel, and both speakers are required for left-and-right stereo playback.

Compact Cabinet with a 5-Inch Woofer

The ES-500-AW-4 name identifies Episode’s compact 4-inch size-class model, but the official technical specification lists a 5-inch polypropylene cone woofer with vacuum-deposited titanium.

The 5-inch woofer handles vocals, instruments, and supporting bass, while the 3/4-inch titanium dome tweeter reproduces higher-frequency detail. Its published 70Hz-to-20kHz response is suitable for background music, outdoor television audio, and everyday listening in smaller spaces.

Outdoor-Ready Construction

The speakers use UV-treated, mineral-filled polypropylene cabinets, aluminum grilles and brackets, stainless-steel hardware, and protected gold-plated terminals.

The official IPX5 rating provides resistance to water jets from normal outdoor exposure. Proper mounting, cable protection, drainage, and maintenance are still important for long-term performance.

Whenever possible, installing the speakers beneath an eave, awning, or other covered area can reduce direct exposure to sun, rain, snow, and debris.

Amplifier and Receiver Compatibility

• Speaker type: Passive two-way outdoor speaker pair.
• Nominal impedance: 8 ohms per speaker.
• Power handling: 120W RMS per speaker.
• Peak power: 300W per speaker.
• Sensitivity: 87 dB.
• Frequency response: 70Hz to 20kHz.
• Crossover frequency: 2.5kHz.
• Woofer: 5-inch polypropylene cone with vacuum-deposited titanium.
• Tweeter: 3/4-inch pure titanium dome.

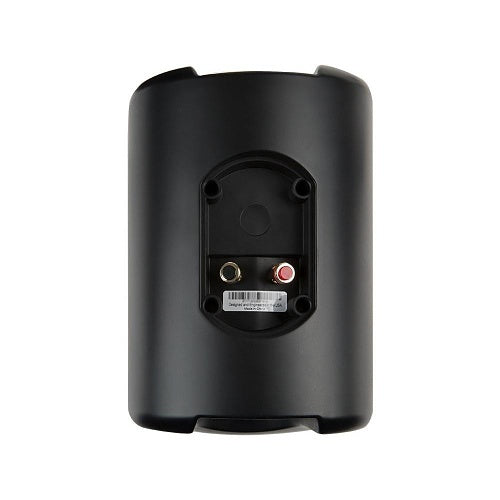

• Connections: Gold-plated push terminals behind a protective rear cover.
• 70V compatibility: No built-in transformer or tap settings.
• Wireless connectivity: None built in.
• Internal amplifier: None; external amplification is required.

Use an amplifier or AV receiver that supports passive 8-ohm speakers. Do not select an amplifier only by matching its maximum wattage to the speaker’s peak rating. Clean amplification, correct impedance support, proper wiring, and avoiding audible distortion are more important.

Speaker Wire Requirements

Episode recommends high-quality 14- to 16-gauge stranded speaker wire. Use cable that is correctly rated for the installation environment, including outdoor, in-wall, underground, or conduit use when applicable.

Connect the amplifier’s left output to one speaker and its right output to the other. Maintain positive-to-positive and negative-to-negative polarity at both ends of each cable.

Incorrect polarity can reduce bass output and make vocals or instruments sound thin, distant, or poorly centered.

Installation and Mounting

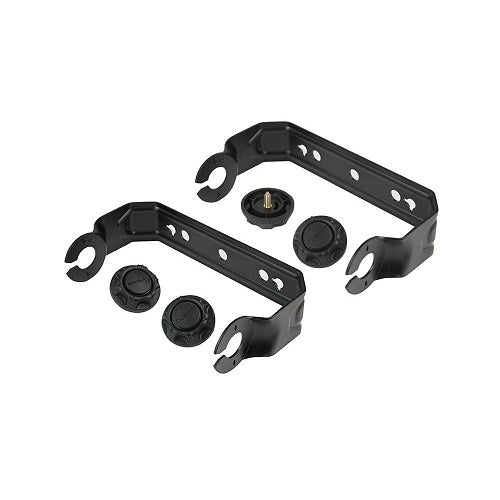

Each speaker includes a U-shaped mounting bracket that can be installed vertically, horizontally, or beneath an eave. Once the bracket is secured to the structure, the speaker slides into place and the side retention knobs hold the selected angle.

A security screw can be installed through the retention-knob assembly to help prevent the speaker from loosening or being removed unintentionally.

Structural mounting screws, bolts, or anchors are not included. Use hardware appropriate for the mounting surface and capable of supporting the speaker under outdoor conditions.

Placement Guidance

Install the two speakers on opposite sides of the primary listening area and aim them toward the seating zone. Keeping the speakers at a similar height and distance from listeners usually provides more balanced stereo coverage.

Avoid installing both speakers immediately beside each other unless the goal is highly localized sound. Some separation creates a wider listening area and more natural left-and-right presentation.

For long patios or several separated seating zones, additional speakers operating at moderate volume may provide more even coverage than one pair playing very loudly.

Does This Pair Need a Subwoofer?

A subwoofer is optional for background music, conversation-level listening, and ordinary outdoor television audio.

Because the published response begins at 70Hz, this compact pair will not reproduce the deepest bass. Add a compatible outdoor or protected-location subwoofer when stronger low-frequency impact is important for parties, movies, or bass-heavy music.

Weather and Location Considerations

• Weather rating: IPX5.
• Operating-temperature range: Approximately -4°F to 140°F.
• Cabinet material: UV-treated, mineral-filled polypropylene.
• Grille and bracket: Aluminum.
• Hardware: Stainless-steel bolts.
• Recommended location: Outdoor surface mounting with appropriate structural hardware and cable protection.
• Not suitable for: Submersion, underwater use, direct installation inside a pool, or marine applications.

Dimensions and Finish Options

• Approximate size without bracket: 6.6 inches wide, 9.8 inches high, and 6.7 inches deep.
• Approximate depth with bracket: 7.2 inches.
• Weight: Approximately 6.45 lb per speaker.

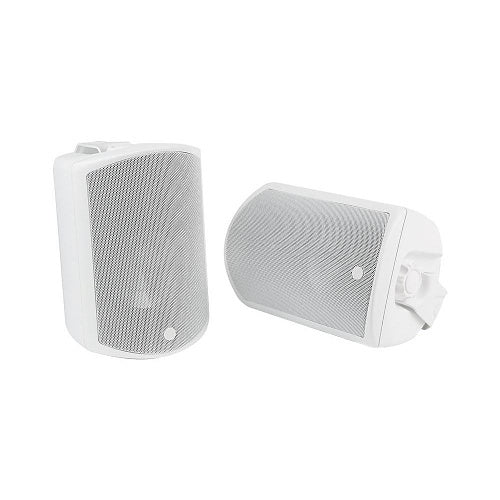

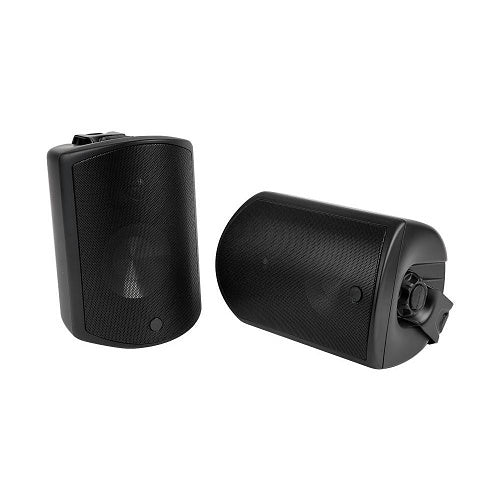

• Available colors: Black or white.
• Sold as: One matched pair.
• Warranty: Limited lifetime manufacturer warranty, subject to current warranty terms and conditions.

When to Choose Another Episode Outdoor Speaker

Choose the ES-500-AW-6 when you need more output, stronger bass, or coverage for a larger patio or seating area.

Choose the ES-500-AW-8 when maximum output and bass performance are more important than compact dimensions.

Choose the ECS-500-AW70V-4 when the installation uses a commercial 70V or 100V amplifier and requires multiple speakers across a larger property.

Choose a dual-voice-coil outdoor speaker when only one physical speaker location is available but both left and right audio channels must be reproduced.

Good Products to Pair With These Speakers

• Outdoor Speakers to compare additional surface-mount, landscape, and rock-speaker options.
• Episode Speakers for matching indoor, outdoor, architectural, and home theater speakers.
• Amplifiers for compatible stereo and multi-zone amplification.
• Speaker Wires for properly rated outdoor and in-wall speaker cable.
• Outdoor TVs for complete patio, porch, and backyard entertainment systems.
• Power Management Solutions to protect the amplifier, receiver, television, and source equipment.

Need Help Planning Your Outdoor Audio System?

Send us the approximate size of the outdoor area, mounting locations, amplifier or receiver model, wire distance, and preferred listening volume. We can help confirm whether this compact pair provides enough coverage or whether a larger Episode speaker, additional pair, 70V system, or outdoor subwoofer would be a better fit.

Are the Episode ES-500-AW-4 speakers sold as a pair?

Yes. The package includes two passive speakers for a conventional left-and-right stereo installation.

Is this a 4-inch or 5-inch speaker?

Episode markets the ES-500-AW-4 as its 4-inch size-class model, but the official technical specification lists an actual 5-inch polypropylene woofer.

Are these powered speakers?

No. They are passive speakers and require speaker wire plus a compatible external amplifier or AV receiver.

Do they include Bluetooth or Wi-Fi?

No. Streaming, Bluetooth, Wi-Fi, and app control must come from the connected amplifier, receiver, or audio source.

What is the nominal impedance?

Each speaker has an 8-ohm nominal impedance.

What is the correct power rating?

Episode lists 120W RMS and 300W peak power handling per speaker. The RMS rating is the more useful figure for continuous-use planning.

What amplifier should I use?

Use an amplifier or AV receiver that supports passive 8-ohm speakers. Confirm the number of connected speakers, wiring configuration, and supported amplifier load before installation.

Can I connect more than one pair to the same amplifier?

Possibly, but the resulting impedance depends on how the speakers are wired and whether the amplifier supports that load. Do not connect several pairs in parallel without checking the amplifier’s specifications.

What is the frequency response?

The published frequency response is 70Hz to 20kHz.

Do these compact speakers produce deep bass?

They provide supporting bass for background music and television audio, but they are not subwoofers. Consider the larger 6-inch or 8-inch Episode models, or add a suitable subwoofer, when stronger low-frequency performance is required.

What does IPX5 mean?

IPX5 indicates resistance to water jets from normal outdoor exposure. It does not mean the speakers are waterproof, submersible, or suitable for installation inside a pool.

Can they remain installed outdoors?

They are designed for permanent outdoor installation and have a published operating range of approximately -4°F to 140°F. Correct mounting, cable protection, maintenance, and reduced direct exposure can help extend their service life.

Can they be installed near a pool?

They can be installed in an appropriate poolside listening area, but they must not be submerged or mounted where they can fall into the water. Follow applicable building and electrical requirements.

Can they be mounted under an eave?

Yes. The supplied U-shaped brackets can be installed vertically, horizontally, or beneath an eave.

Are the mounting brackets included?

Yes. One adjustable mounting bracket is supplied for each speaker.

Is structural mounting hardware included?

No. The speaker brackets are included, but the screws, bolts, or anchors used to attach them to the structure must be selected separately for the mounting surface.

Can the speaker angle be adjusted?

Yes. Loosen the side retention knobs, rotate the speaker toward the listening area, and retighten the knobs. The bracket supports the speaker during adjustment.

What speaker wire should I use?

Episode recommends high-quality 14- to 16-gauge stranded speaker wire. Use cable with the correct outdoor, in-wall, underground, or conduit rating for the installation.

Why is correct speaker polarity important?

Reversed polarity can reduce bass output and make vocals sound thin or poorly centered. Maintain positive-to-positive and negative-to-negative connections throughout the system.

Are the terminals protected from moisture?

Yes. The gold-plated push terminals are positioned behind a protective rear cover.

Can these speakers be used with a 70V amplifier?

No. The ES-500-AW-4 is an 8-ohm model without transformer taps. Choose the ECS-500-AW70V-4 for a compatible 70V or 100V distributed-audio system.

Are these dual-voice-coil speakers?

No. This is a conventional stereo pair. Each speaker connects to one amplifier channel.

What colors are available?

The pair is available in black or white.

What are the approximate dimensions?

Each speaker measures approximately 6.6 inches wide, 9.8 inches high, and 6.7 inches deep without the bracket. The installed depth is approximately 7.2 inches with the bracket.

How much does each speaker weigh?

Each speaker weighs approximately 6.45 lb.

What should I check before ordering?

Check amplifier compatibility, speaker quantity, cable length, mounting surface, available clearance, color, desired volume, weather exposure, and whether this compact pair provides enough output for the listening area.
