Episode ES-350-SNDBAR-40-BLK 3.0 LCR Slim Passive TV Soundbar

Clear Left, Center, and Right Audio in One Slim Cabinet

The Episode ES-350-SNDBAR-40-BLK combines three independent passive speakers into one 40.2-inch cabinet, providing dedicated left, center, and right channels beneath a 46 to 52-inch TV. It delivers clearer dialogue and wider front-channel separation without requiring three separate speaker cabinets.

Best Uses

• Living rooms, bedrooms, and media rooms using an AV receiver
• Wall-mounted or stand-mounted TVs where separate front speakers are not practical
• Home theater systems that may later add surrounds and a subwoofer
• Systems requiring independent left, center, and right speaker channels

Amplifier and Wiring Requirements

• Requires an AV receiver or amplifier with three separate powered channels
• Each left, center, and right channel has an 8-ohm nominal impedance
• Recommended amplifier power: 20 to 100W RMS per channel
• Requires three runs of 14 to 16 AWG speaker wire
• Three sets of gold-plated speaker terminals accept wire up to 14 AWG

The official product listing states 90W RMS and 225W peak power handling. The 225W figure is a short-term peak rating, not continuous power.

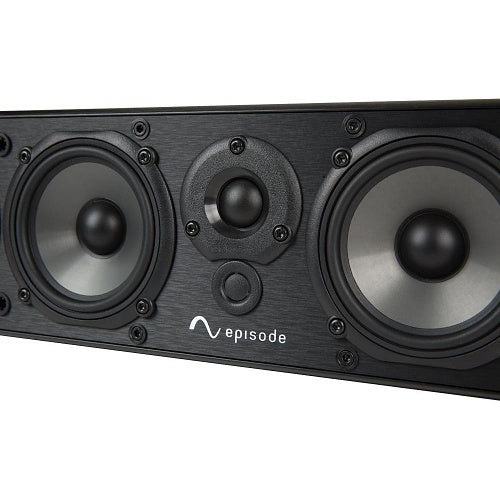

Speaker Design

• Four 3-inch polypropylene injection-cone woofers
• Three 3/4-inch silk-dome tweeters
• Four 3-inch passive radiators
• Frequency response: 105 Hz to 22 kHz
• Sensitivity: 88 dB at 2.83V/1m
• Crossover frequency: 2.5 kHz
• Black aluminum cabinet with acoustically transparent cloth grille

The soundbar is designed for clear dialogue and front-channel detail. Its 105 Hz low-frequency limit means a separate powered subwoofer is recommended for deeper movie and music bass.

Connections and Limitations

This is a passive speaker, not a powered soundbar. It does not connect directly to a TV through HDMI ARC, optical, Bluetooth, Wi-Fi, or an app. Connect the TV and source devices to an AV receiver, then connect the receiver’s left, center, and right speaker outputs to the soundbar.

The hidden IR opening can hold an optional IR receiver behind the grille. The soundbar itself does not include remote-control electronics.

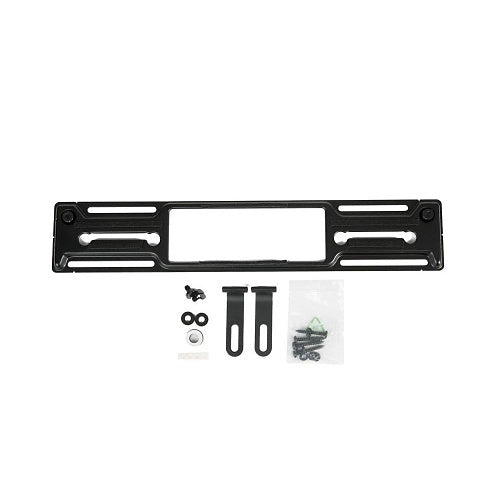

What Is Included

• One ES-350-SNDBAR-40-BLK passive soundbar
• Wall-mount plate with adjustment knobs
• Two adjustable kickstands for shelf placement
• Two rubber feet
• Mounting screws, washers, and shoulder bolts
• IR receiver spacer

Sold Separately

• AV receiver or multi-channel amplifier
• Speaker wire
• HDMI, optical, or source cables connected to the receiver
• Optional IR receiver
• Optional Strong SM-SBAR2-BKT-UNIV TV-mount bracket
• Surround speakers and powered subwoofer

Placement and Mounting

Install the soundbar below the TV using the included wall bracket, place it on a shelf using the included kickstands, or attach it to a compatible TV mount using the optional bracket.

For wall mounting, keep the soundbar within approximately 3 inches of the TV to help the sound remain visually connected to the picture. When placed on a shelf, keep the front of the soundbar flush with the shelf edge and angle it toward the listening position.

Dimensions and Warranty

• Dimensions: 40.2 inches wide × 4.5 inches high × 2.83 inches deep
• Weight: 11 lb
• Finish: Black
• Indoor use only
• Manufacturer limited lifetime warranty

When to Choose Another Model

Choose a powered soundbar if you do not want to use an AV receiver. Choose a larger Episode soundbar when a wider cabinet better matches the TV. This model is not weather rated and should not be used with an outdoor TV.

Need Help Confirming Compatibility?

Send Bear Security Shop your TV size, AV receiver model, mounting method, room size, and plans for surrounds or a subwoofer. We will help confirm amplifier compatibility and the required wiring and mounting accessories.

Is the ES-350-SNDBAR-40-BLK sold individually?

Yes. It is sold as one soundbar containing separate left, center, and right speaker channels.

Is this a powered soundbar?

No. It is passive and requires an AV receiver or amplifier with three separate powered channels.

Can it connect directly to my TV?

No. It does not have HDMI ARC, optical, Bluetooth, Wi-Fi, or analog audio inputs. Connect the TV to an AV receiver, then connect the receiver to the soundbar using three speaker-wire runs.

How much amplifier power does it require?

Episode recommends 20 to 100W RMS per channel into 8 ohms. The official listing also states 90W RMS and 225W peak power handling.

Does it provide real left, center, and right channels?

Yes. It contains three electrically independent channels rather than combining all audio into one speaker channel.

Does it include a subwoofer?

No. A powered subwoofer is sold separately and is recommended when deeper movie and music bass is needed.

Does it include mounting hardware?

Yes. It includes a wall-mount plate, adjustable shelf kickstands, rubber feet, mounting hardware, and an IR receiver spacer. The bracket used to attach it directly to a TV mount is sold separately.

Can the grille be painted?

The manufacturer identifies it as a black acoustically transparent cloth grille but does not specify it as paintable.

Can it be used outdoors?

No. It is designed for dry indoor locations and has no outdoor weather rating.

What are its dimensions?

It measures 40.2 inches wide × 4.5 inches high × 2.83 inches deep and weighs 11 lb.

What should I confirm before ordering?

Confirm your TV width, receiver’s 8-ohm compatibility, available left-center-right amplifier channels, speaker-wire routing, mounting method, and whether you need a subwoofer or surround speakers.
