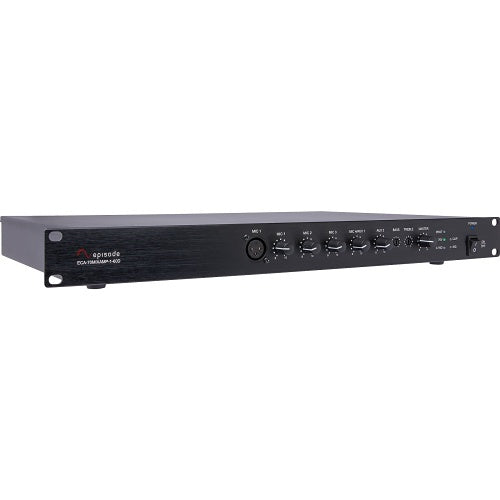

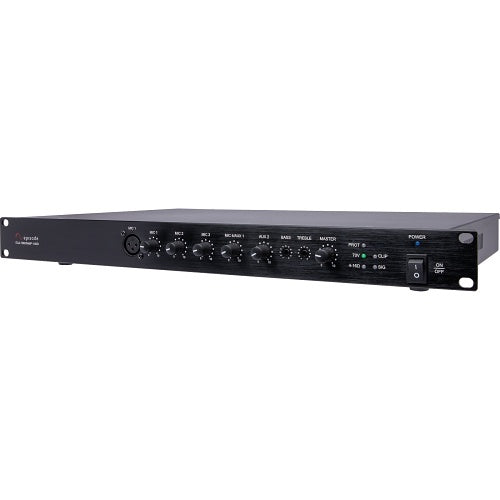

Episode ECA-70MIXAMP-1-60D 60W Compact Class D Mixer Amplifier

Power Background Music and Paging from One Compact Amplifier

The Episode ECA-70MIXAMP-1-60D is a single-channel 60W RMS Class D mixer amplifier for background music, announcements, and paging. It supports either a 70V distributed-speaker system or one conventional 4–16-ohm speaker load.

Best Uses

• Offices, stores, cafés, waiting areas, gyms, and shared spaces
• Multiple 70V ceiling or pendant speakers playing the same audio
• Systems combining background music with microphones or emergency audio
• One mono low-impedance speaker system between 4 and 16 ohms

Power and Speaker Compatibility

• 60W RMS mono output
• Selectable 70V or 4–16Ω output mode
• 80 Hz to 16 kHz frequency response
• Class D amplification

For 70V systems, add the selected transformer tap of every connected speaker. For example, four speakers tapped at 10W equal a 40W load. Keep the combined taps below the amplifier’s 60W rating. A practical design target is approximately 48W or less to preserve operating headroom.

The amplifier does not provide 100V output. Do not connect 70V and low-impedance speakers at the same time.

Inputs and Priority

• Four balanced microphone or line inputs
• 48V phantom power for compatible condenser microphones
• Two unbalanced RCA AUX inputs
• One emergency EMC input
• One unbalanced RCA mix output

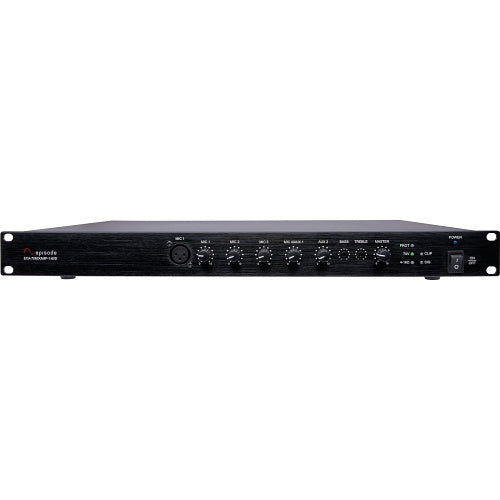

• Front-panel bass, treble, master volume, and source-level controls

The priority order is EMC first, MIC 1 second, followed by MIC 2–4 and AUX 1–2. Higher-priority audio automatically lowers or mutes lower-priority sources when configured correctly.

Important Limitations

• Single-channel mono output, not stereo
• No Bluetooth on the 60W model
• No Wi-Fi, app control, Ethernet, PoE, DSP, or built-in streaming
• No HDMI, optical, USB, or digital-audio input
• No independent audio zones

A separate music source, streamer, microphone, controller, or audio converter is required when needed.

Included and Sold Separately

Included: One ECA-70MIXAMP-1-60D mixer amplifier and AC power cord.

Sold separately: 70V or low-impedance speakers, microphones, audio sources, RCA cables, speaker wire, paging controls, and rack screws.

Installation Details

• 120V AC, 60 Hz power
• 120W maximum power consumption
• Forced-air cooling
• Overheat, overcurrent, and short-circuit protection
• Approximately 19.1 × 11.6 × 1.7 inches
• Approximately 9.5 lb
• Compact 1U rack-mount chassis
• Two-year manufacturer limited warranty

Install the amplifier indoors with adequate ventilation. It is not weather resistant and should not be exposed to water, condensation, or excessive dust.

Complete the System

• In-wall and in-ceiling speakers
• Speaker wire
• Episode audio products
• Power management solutions

Need Help Sizing Your Speaker Load?

Send Bear Security Shop your speaker models, quantity, transformer tap settings, microphone requirements, and audio sources. We will help confirm the total load and whether this 60W amplifier is suitable.

Is the ECA-70MIXAMP-1-60D sold individually?

Yes. The purchase includes one single-channel mixer amplifier. Speakers, microphones, audio sources, cables, and controls are sold separately.

Is this amplifier for 70V or regular speakers?

It supports either a 70V distributed-speaker system or one 4–16-ohm low-impedance load. Select the correct output mode before connecting speakers.

How many 70V speakers can it power?

Add the selected wattage tap of every speaker. The combined load must remain below 60W. Keeping the total around 48W or less provides approximately 20% operating headroom.

What transformer taps does the amplifier provide?

The amplifier does not provide speaker tap settings. The taps are selected on the connected 70V speakers. Common tap options vary by speaker model, so confirm each speaker before calculating the total load.

Does the 60W model include Bluetooth?

No. Bluetooth is available on the 120W and 240W versions, not the ECA-70MIXAMP-1-60D.

Can it play stereo audio?

No. It is a single-channel mono amplifier. Connected music sources are mixed into one mono speaker output.

Can microphones and music be used together?

Yes. It mixes microphone and AUX sources. The EMC input has highest priority, followed by MIC 1, then the remaining microphone and AUX inputs.

Does it provide phantom power?

Yes. Its microphone inputs support selectable 48V phantom power for compatible condenser microphones.

Does it support 100V speakers?

No. The manufacturer specifies 70V and 4–16-ohm output only.

Can it be installed outdoors?

No. Install it indoors in a dry, ventilated location. It may power compatible outdoor speakers when the amplifier remains protected indoors.
