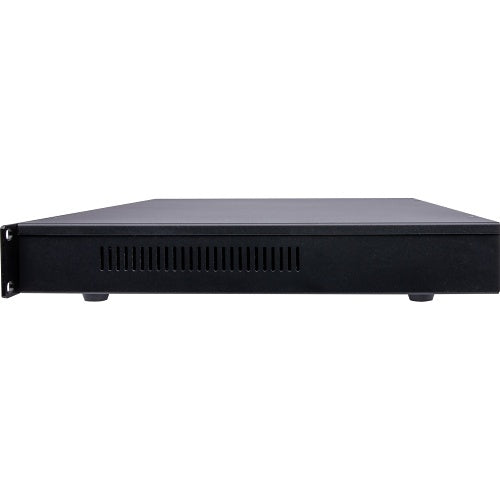

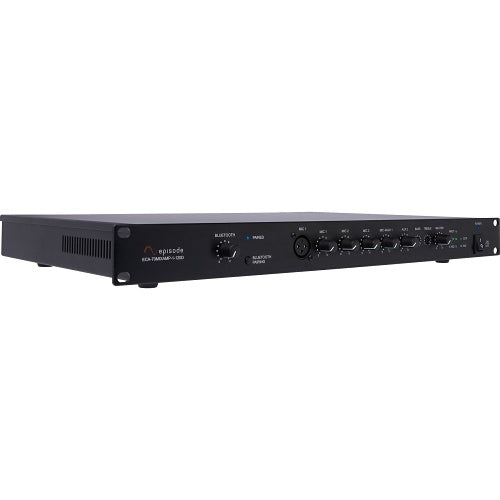

Episode ECA-70MIXAMP-1-120D 120W Bluetooth 1-Channel Amplifier

Combine Music and Paging in One Compact Audio System

The Episode ECA-70MIXAMP-1-120D is a single-channel 120W RMS Class D mixer amplifier for 70V distributed speakers or conventional 4–16-ohm speaker loads. Built-in Bluetooth, microphone mixing, priority audio, and front-panel controls make it easy to combine background music and announcements.

Power and Speaker Compatibility

• 120W RMS mono output
• Selectable 70V or 4–16Ω speaker output
• Class D amplification
• Frequency response: 50 Hz to 16 kHz

For a 70V system, add the selected transformer tap wattage of every connected speaker. Keep the total below 120W and leave amplifier headroom. A practical target of about 96W or less provides approximately 20% headroom.

This model does not provide a 100V speaker output.

Bluetooth, Microphone, and Audio Inputs

• Built-in Bluetooth audio streaming
• 4 microphone inputs
• 2 RCA AUX inputs
• 1 EMC emergency audio input
• 48V phantom power for compatible microphones
• RCA mix output for feeding another audio device

Bluetooth on this model is for audio playback. It is not Wi-Fi, app control, network streaming, or IP control.

Paging Priority

The amplifier provides automatic source priority for announcements and emergency audio. EMC has highest priority, followed by MIC 1, with the remaining microphone and AUX sources below them.

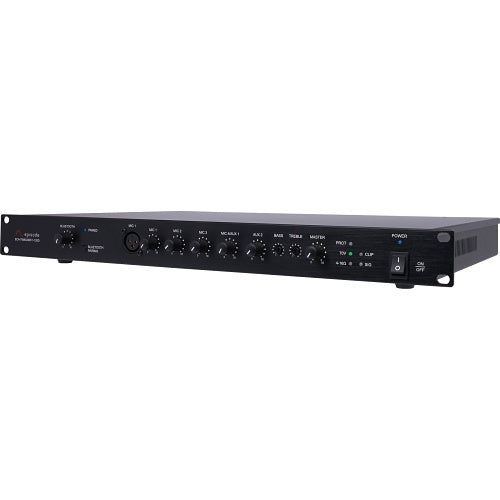

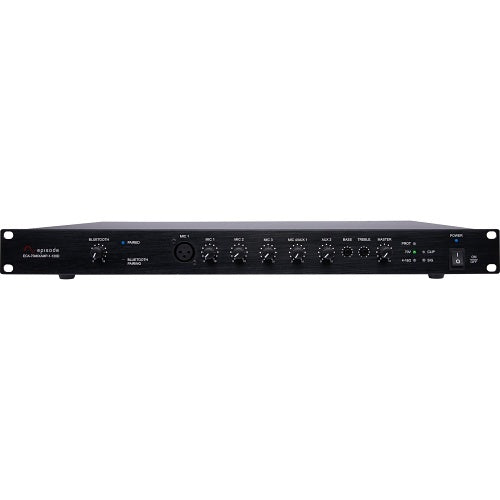

Front-Panel Control

• Bluetooth volume and pairing controls
• Individual microphone and source-level controls
• Master volume
• Bass and treble adjustment
• Signal, clipping, output-mode, and protection indicators

Important Limitations

• Single-channel mono amplifier, not stereo
• No 100V output
• No Wi-Fi or built-in network streaming
• No Ethernet, PoE, IP, or OvrC control
• No HDMI or optical digital audio input
• No independent multi-zone audio outputs

Included and Sold Separately

Included: One ECA-70MIXAMP-1-120D mixer amplifier.

Sold separately: Speakers, microphones, audio sources, speaker wire, RCA cables, paging equipment, and other system accessories.

Dimensions and Installation

• Current data-sheet dimensions: approximately 19.1 × 11.8 × 1.7 inches
• Weight: approximately 8.2 lb
• 1RU chassis
• 120V AC, 60 Hz
• 180W maximum power consumption
• Variable-speed forced-air cooling
• Overheat, overcurrent, and short-circuit protection
• 2-year manufacturer limited warranty

Install indoors in a dry, ventilated location. The amplifier is not weather rated.

Complete the System

• Episode audio products
• Speaker wire
• Power management solutions

Need Help Sizing Your Speaker System?

Send Bear Security Shop your speaker models, quantity, 70V tap settings, microphones, and audio sources. We can help confirm the total speaker load and whether the ECA-70MIXAMP-1-120D is the right fit.

Is the ECA-70MIXAMP-1-120D a 70V amplifier?

Yes. It supports a 70V distributed-speaker system or a conventional 4–16-ohm speaker load.

How much power does it provide?

Episode specifies 120W RMS from its single mono amplifier channel.

How many 70V speakers can I connect?

Add the transformer tap wattage of every speaker. Keep the total below 120W and leave operating headroom. Around 96W or less is a practical target for approximately 20% headroom.

Does it support 100V speakers?

No. The ECA-70MIXAMP-1-120D is specified for 70V or 4–16-ohm output, not 100V.

Does it have Bluetooth?

Yes. Bluetooth is built in for wireless audio playback from a compatible source.

Does Bluetooth provide app or network control?

No. Bluetooth is for audio streaming only. The amplifier does not include Wi-Fi, Ethernet, IP control, or OvrC.

Can microphones and Bluetooth music be used together?

Yes. The built-in mixer combines music and microphone sources, with priority functions allowing announcements to take precedence.

Does it provide phantom power?

Yes. The microphone inputs support 48V phantom power for compatible microphones.

Is this a stereo amplifier?

No. It is a single-channel mono amplifier designed to feed one speaker system.

Can it be installed outdoors?

No. Keep the amplifier indoors in a dry, ventilated location. It may power compatible outdoor speakers when the amplifier remains protected indoors.
