Episode EA-RSP-8D-100 8-Channel DSP Amplifier 100W Per Channel

Power and Tune Up to Four Stereo Audio Zones

The Episode EA-RSP-8D-100 is an 8-channel Class D DSP matrix amplifier for up to four stereo zones. It combines amplification, source routing, per-zone DSP, subwoofer outputs, IP control, and OvrC management in one rack-mounted component.

Power Output

• 8 × 100W at 4 ohms, all channels driven
• 8 × 50W at 8 ohms, all channels driven
• Up to 4 × 200W bridged mono at 8 ohms
• Class D amplification
• 20 Hz to 20 kHz frequency response

Bridge mode combines a stereo channel pair into one higher-powered mono output. Use an 8-ohm load when bridging.

Four-Zone Matrix Routing

• 4 stereo RCA source inputs
• 4 stereo RCA loop outputs
• 8 amplified channels for 4 stereo zones
• Independent source routing and volume control by zone
• Speaker outputs can operate in stereo, mono, or bridged configurations

This model uses analog RCA audio inputs. It does not include HDMI, optical, coaxial digital audio, Bluetooth, Wi-Fi, or built-in music streaming.

DSP and Speaker Tuning

• 10-band parametric EQ
• Tone controls
• High-pass and low-pass filters
• Audio delay
• Output limiter
• Independent input gain with anti-clipping support
• Episode speaker presets and custom presets

Subwoofer Support

Each stereo zone includes a mono RCA line-level subwoofer output. The output combines left and right audio and uses a fixed 200 Hz low-pass filter.

A powered subwoofer or separate subwoofer amplifier is required. The subwoofer outputs cannot directly power passive subwoofers.

Network and Control

• 10/100 Ethernet
• Browser-based setup and DSP configuration
• IP control
• OvrC remote management and monitoring
• IR input and output
• 4.5V-12V trigger input
• 12V trigger output
• Audio Sense, Voltage Trigger, and Power Button standby modes

Ethernet is used for configuration, monitoring, and control. It does not carry audio and does not provide PoE power.

Speaker Compatibility

The EA-RSP-8D-100 is designed for conventional passive low-impedance speakers. The published output ratings are specified for 4-ohm and 8-ohm loads.

This is not a 70V or 100V amplifier. Choose a dedicated constant-voltage amplifier for 70V or 100V speaker systems.

Included

• One EA-RSP-8D-100 amplifier
• IEC power cable
• Four feet
• Rack-mount ears and screws
• Phoenix-style speaker connectors

Sold Separately

• Passive speakers
• Speaker wire
• RCA source cables
• Audio sources or streaming devices
• Ethernet cable
• Control hardware when required
• Powered subwoofers or subwoofer amplifiers

Dimensions and Installation

• 19 inches wide × 3.5 inches high × 16.7 inches deep
• 4 inches high with feet installed
• Weight: 18.7 lb
• Rack space: 2U
• AC input: 100-120V / 200-240V, 50/60 Hz
• Dual-fan active cooling
• 2-year manufacturer limited warranty

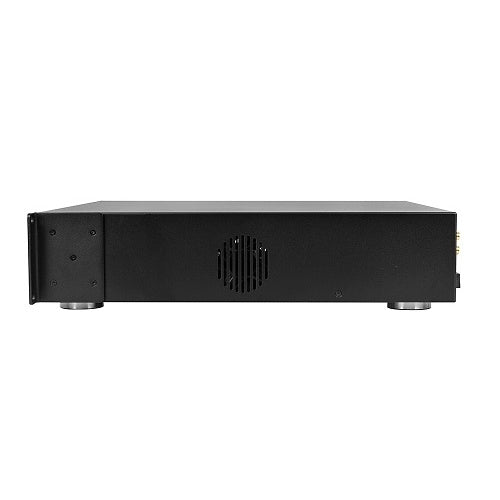

Install indoors in a dry, ventilated equipment location. Maintain airflow around the side vents and leave the recommended rack ventilation space.

Complete the System

• Episode audio products
• In-wall and in-ceiling speakers
• Outdoor speakers
• Subwoofers
• Speaker wire
• Power management solutions

Need Help Confirming Compatibility?

Send Bear Security Shop your speaker models, number of zones, impedance, audio sources, and any zones that need bridged power or a subwoofer. We can help confirm the channel layout and system compatibility.

How many zones can the EA-RSP-8D-100 power?

It provides eight amplifier channels, typically configured as up to four independent stereo zones.

How much power does each channel provide?

Episode specifies 100W per channel at 4 ohms or 50W per channel at 8 ohms with all eight channels driven.

Can channels be bridged?

Yes. Each stereo channel pair can be bridged to provide up to 200W into an 8-ohm mono load.

Can different sources play in different zones?

Yes. Built-in matrix switching allows the four analog stereo sources to be routed independently to different zones.

Does it have built-in DSP?

Yes. Each output includes DSP controls such as 10-band parametric EQ, high-pass and low-pass filters, tone controls, delay, and limiting.

Does it have Bluetooth, Wi-Fi, or built-in streaming?

No. Separate audio sources or streamers are required. Ethernet is used for configuration, IP control, and OvrC management.

Does it have optical or HDMI inputs?

No. The EA-RSP-8D-100 uses analog stereo RCA source inputs.

Can I connect subwoofers?

Yes. Each zone has a mono line-level subwoofer output. Use a powered subwoofer or separate subwoofer amplifier.

Does it support 70V or 100V speakers?

No. It is designed for conventional passive low-impedance speaker systems.

Can it power outdoor speakers?

Yes, when the speakers are compatible low-impedance passive models. The amplifier itself must remain indoors in a dry, ventilated location.

What should I confirm before ordering?

Confirm your number of zones, speaker impedance and power handling, source count, bridged-zone requirements, subwoofer needs, wiring, and preferred control method.
