Episode EA-RSP-2D-200 DSP Amplifier 2-Ch 200W IP Audio Control

Power and Fine-Tune One High-Performance Speaker Zone

The Episode EA-RSP-2D-200 is a two-channel Class D amplifier designed to power one stereo passive-speaker zone or one higher-powered bridged mono speaker load. Built-in DSP provides detailed control over equalization, crossover settings, delay, volume, and speaker protection.

It is well suited for living rooms, media spaces, patios, offices, conference rooms, and other systems that need more power and adjustment than a basic stereo amplifier provides.

Amplifier Output

• 2 × 200W into 4 ohms at 1 kHz
• 2 × 100W into 8 ohms at 1 kHz
• 1 × 400W bridged into 8 ohms at 1 kHz
• Class D amplifier topology
• 20 Hz to 20 kHz frequency response

These are the manufacturer's published amplifier-output ratings. They should not be described as peak watts or automatically relabeled as RMS.

Best Uses

• One pair of high-output passive speakers
• In-wall or in-ceiling speaker systems
• Indoor amplifiers powering compatible outdoor speakers
• Stereo systems with a powered subwoofer
• One bridged mono speaker requiring additional power

Who Should Choose Another Amplifier

• Choose a multi-zone amplifier if several rooms need independent sources or volume control.
• Choose a 70V or 100V amplifier for constant-voltage distributed-speaker systems.
• Choose a streaming amplifier if you need built-in Bluetooth, Wi-Fi, AirPlay, or music services.
• Choose an AV receiver if you need HDMI, ARC, surround decoding, or home-theater channels.

DSP and Control Features

• 10-band parametric equalizer
• High-pass and low-pass filters
• Tone controls and audio delay
• Output limiter and anti-clipping support
• Episode speaker and custom DSP presets
• Browser-based Ethernet configuration
• IP, IR, audio-sensing, and voltage-trigger control
• OvrC monitoring and remote management

The Ethernet connection is used for setup, monitoring, and control. It does not carry audio, provide PoE power, or add built-in streaming.

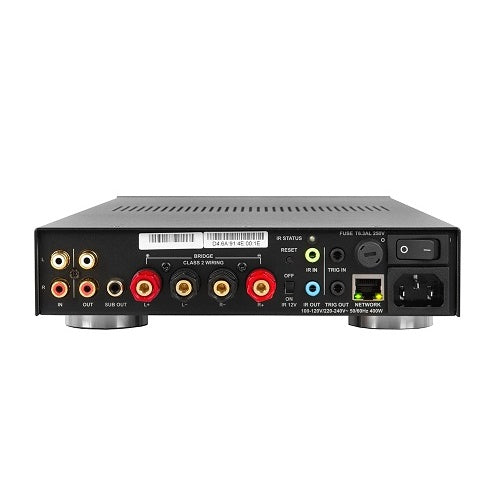

Inputs and Outputs

• One stereo RCA analog input
• One fixed-level stereo RCA loop output
• One mono RCA subwoofer output
• Five-way binding-post speaker outputs
• Ethernet, IR input/output, and trigger input/output

The amplifier does not include optical, coaxial digital, USB, Bluetooth, Wi-Fi, or HDMI audio inputs. A separate DAC or source component is required when your source does not provide analog RCA output.

The subwoofer connection is line level and requires a powered subwoofer or separate subwoofer amplifier. It cannot directly power a passive subwoofer.

Speaker Compatibility

The amplifier is designed for conventional passive low-impedance speakers. Confirm speaker impedance, quantity, wiring arrangement, and power handling before connecting multiple speakers to one channel.

This model is not a 70V or 100V amplifier. It also cannot power active speakers through its speaker outputs.

What Is Included

• One EA-RSP-2D-200 amplifier
• IEC power cable
• Four feet
• Rack-mount ears and mounting screws

Sold Separately

• Passive speakers
• Speaker wire
• Analog RCA audio cable
• Ethernet cable
• Audio source, streamer, receiver, or DAC
• IR receiver or compatible control system
• Powered subwoofer or subwoofer amplifier

Installation

The amplifier uses fanless passive cooling and fits one rack unit using the included rack ears. Install it indoors in a dry, ventilated location. It is not weather resistant and should not be exposed to moisture, rain, sprinklers, or condensation.

• Dimensions: 16.5 × 8.3 × 1.8 inches
• Height with feet: 2.2 inches
• Weight: 7.93 lb
• Power input: 100-120V or 200-240V, 50/60 Hz
• Warranty: Two-year manufacturer limited warranty

Complete the System

• Episode speakers and audio products
• In-wall and in-ceiling speakers
• Outdoor speakers
• Subwoofers
• Power management solutions

Need Help Confirming Compatibility?

Send Bear Security Shop your speaker model, quantity, impedance, audio source, room or outdoor-area details, and preferred control method. We will help confirm whether the EA-RSP-2D-200 is the right amplifier for your system.

Is the Episode EA-RSP-2D-200 sold individually?

Yes. It includes one two-channel amplifier. Speakers, source equipment, cables, controllers, and subwoofer equipment are sold separately.

How much power does it provide?

It is rated at 200W × 2 into 4 ohms, 100W × 2 into 8 ohms, or 400W bridged into one 8-ohm load, all measured at 1 kHz.

Is this a multi-zone amplifier?

No. It powers one stereo zone or one bridged mono load. The larger Episode Response amplifiers provide multi-zone matrix switching.

Does it support Bluetooth, Wi-Fi, or streaming?

No. Ethernet is used for configuration, IP control, and OvrC monitoring. A separate streamer or audio source is required.

Does it have optical or HDMI inputs?

No. It has one stereo analog RCA input. A separate digital-to-analog converter is required for optical or coaxial digital sources.

Does it support 70V or 100V speakers?

No. It is designed for conventional low-impedance passive speakers, not constant-voltage speaker systems.

Can I connect a subwoofer?

Yes. It includes a mono line-level subwoofer output. Use a powered subwoofer or separate subwoofer amplifier.

Can it be installed outdoors?

No. The amplifier must remain indoors in a dry, ventilated location. It can power compatible outdoor speakers when the amplifier stays protected indoors.

How is volume controlled?

Volume can be managed through the browser interface, IP commands, IR control, the connected source, or a compatible control system. It does not have a conventional front-panel volume knob.

What should I confirm before ordering?

Confirm the speaker impedance, quantity, power handling, wiring method, audio-source connection, subwoofer requirements, and preferred volume-control method.
