Episode EA-MOIP-AMP-6D-50 6-Ch DSP 50W Multi-Zone Amplifier

Flexible Network Audio for Multiple Rooms or One Surround Zone

The Episode EA-MOIP-AMP-6D-50 is a compact six-channel DSP amplifier designed to receive, route, decode, and amplify audio within a compatible Snap One Media over IP system.

It can be configured for up to three stereo zones, one 5.1 or 5.0 room, or another supported combination of stereo, mono, multichannel, and subwoofer-assisted zones. It can also place its local analog or digital input onto the MoIP network for playback elsewhere in the system.

This is not a standalone streaming amplifier. A working B-900-MOIP-4K-CTRL controller, a compatible managed network, and the required MoIP sources or transmitters are needed for MoIP operation.

Best Use Cases

• Three distributed stereo zones: Use two channels per zone to power speakers in as many as three rooms or listening areas.
• One compact 5.1 system: Use five amplified channels for the main speakers and one RCA Sub Out for a powered subwoofer.
• One 5.1 system with a passive subwoofer: Assign the sixth amplified channel to a compatible passive subwoofer.
• Mixed-zone layouts: Combine stereo, mono, 2.1, 3.0, 3.1, 4.0, 4.1, 5.0, or 5.1 configurations within the available six channels.
• Rooms located away from the central rack: Place amplification closer to the speakers and carry the source audio over the network.
• MoIP television zones: Receive compatible multichannel audio associated with a network video source and maintain synchronized audio and video.
• Local-source distribution: Connect a nearby analog or digital audio source and transmit it to other compatible MoIP zones.
• Systems needing per-zone DSP: Configure speaker presets, room EQ, crossover settings, distance, maximum volume, and subwoofer level through OvrC.

Who Should Buy This?

This is a strong choice when the property already uses, or is being designed around, Snap One’s MoIP ecosystem and needs compact amplification near the listening areas.

It is particularly useful when several rooms require independent source routing, volume control, speaker tuning, and powered-subwoofer support without running every analog audio source cable back to one central amplifier.

It also makes sense for a secondary theater or television room that needs up to 5.1-channel playback but does not require the HDMI switching and consumer-facing controls of a conventional AV receiver.

Who Should Not Buy This?

This is not a conventional standalone six-channel power amplifier. It requires network configuration and a B-900-MOIP-4K-CTRL controller to function as a MoIP device.

It does not contain Spotify Connect, AirPlay, Chromecast, Bluetooth music streaming, Internet radio, or built-in music-service apps. Audio must come from compatible MoIP sources or the amplifier’s local RCA or digital input.

It has no HDMI input, HDMI output, television tuner, or video-processing connection. References to 4K HDR describe the wider MoIP system, not video passing physically through this amplifier.

It is not a 70V or 100V distributed-audio amplifier. It is designed for compatible low-impedance passive speakers.

It is not the right choice when six channels must each receive 50W simultaneously. The 50W rating applies to one channel driven under the required power conditions, while the current product table lists 10W per channel with all six channels driven.

It also does not support output-channel bridging. Bridging is available only on the larger EA-MOIP-AMP-12D-100.

Sold Individually

The EA-MOIP-AMP-6D-50 is sold as one six-channel amplifier.

The box includes the amplifier, two mounting ears with screws, four removable feet, and an installation-manual QR card.

A conventional AC power cord is not included because this model is powered through its network connection or the separately sold 48V DC power supply.

Up to Three Audio Zones

The six amplified output channels can be assigned to as many as three zones.

A typical three-zone configuration uses:

• Zone 1: Channels 1 and 2 for a stereo speaker pair.
• Zone 2: Channels 3 and 4 for a second stereo pair.
• Zone 3: Channels 5 and 6 for a third stereo pair.

Each configured zone can have its own source, volume, maximum-volume limit, mute state, speaker preset, speaker-distance settings, tone controls, room EQ, and subwoofer configuration.

Configurable Multichannel Playback

The EA-MOIP-AMP-6D-50 supports several playback formats, including:

• 5.1 or 5.0
• 4.1 or 4.0
• 3.1 or 3.0
• 2.1 or 2.0
• Mono playback

The exact number of remaining zones depends on how many amplified channels are assigned to the first room.

For example, a 5.1 room with a powered subwoofer uses five speaker channels and one RCA Sub Out. A 5.1 room with a passive subwoofer uses all six amplified channels.

Important Power-Rating Explanation

The amplifier’s available output depends on both the power source and the number of channels operating.

Episode publishes the following continuous one-channel-driven ratings:

• Standard PoE: Up to 15.5W RMS.
• PoE+: Up to 30W RMS.
• PoE++: Up to 50W RMS.
• Optional 48V DC supply: Up to 50W RMS.

The current Snap One product table separately lists 10W per channel at 4 ohms with all six channels driven.

The product should therefore be described as providing up to 50W on one channel, not as a simultaneous 6 × 50W amplifier.

PoE, PoE+, and PoE++ Power

The RJ45 network connection can carry both the MoIP network connection and operating power from a compatible PoE switch or injector.

The connected PoE class directly affects available amplifier output. A standard PoE port may power the unit but will not provide the same one-channel output available from PoE++.

Before ordering, confirm:

• The switch or injector’s supported PoE standard.
• The available wattage on the selected port.
• The switch’s total PoE budget after all connected devices are counted.
• The output expected from the number of active amplifier channels.

Optional 48V DC Power Supply

When suitable PoE power is unavailable, the amplifier can be powered with the separately sold Episode EE-PS-48VDC-2.5A external power supply.

The optional supply connects to the amplifier’s rear 48V DC input and supports the published 50W one-channel-driven output.

The external power supply is not included in the amplifier box.

Built-In MoIP Audio Receiver

The EA-MOIP-AMP-6D-50 can receive up to three MoIP audio streams for routing to its configured zones.

Compatible audio may originate from a dedicated MoIP audio transmitter or from an audio or video source introduced through another compatible device in the MoIP system.

The MoIP platform handles latency compensation to help maintain synchronization between network audio and video zones.

Transmit Local Sources onto the Network

The amplifier is not only an audio receiver. Its local analog and digital inputs can act as MoIP transmitters.

A source connected directly to the amplifier can be placed onto the MoIP network and routed to other compatible zones elsewhere in the property.

The six-channel model supports up to three MoIP receive streams and three MoIP transmit streams.

Local Stereo RCA Input

One stereo RCA input accepts a compatible analog line-level source.

Possible sources include a television with a variable or fixed analog output, a music player, a preamplifier, an audio extractor, or another compatible line-level device.

The official input specifications list 500mV sensitivity and 20,000-ohm input impedance.

Combo Coaxial and Optical Digital Input

One digital input supports either coaxial S/PDIF or optical Toslink.

The coaxial and optical connections operate in parallel, so only one can be used at a time.

This input can receive a compatible local digital source and route it to the amplifier’s zones or transmit it onto the MoIP network.

Supported Audio Formats

The amplifier supports compatible Dolby Digital, DTS Surround, multichannel LPCM, and PCM audio formats.

Episode specifically documents Dolby Digital and DTS 5.1 bitstream decoding along with two-channel and multichannel PCM playback.

Dolby Atmos, DTS:X, lossless Dolby TrueHD, and DTS-HD Master Audio decoding are not published for this model and should not be claimed.

No Built-In Consumer Music Services

“MoIP streaming” means receiving and transmitting compatible audio streams across a Media over IP network.

It does not mean the amplifier independently connects to Spotify, Apple Music, Amazon Music, Internet radio, AirPlay, Chromecast, or Bluetooth sources.

A separate compatible source device or audio-casting interface is needed when those services are part of the system.

Three Powered-Subwoofer Outputs

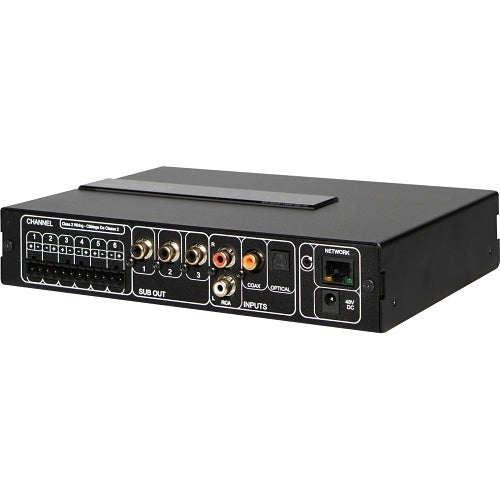

The rear panel provides three low-level RCA Sub Outs—one for each possible zone.

Each output can connect to a powered subwoofer or an external passive-subwoofer amplifier.

The Sub Out number corresponds to the zone number. A subwoofer assigned to Zone 2, for example, connects to Sub Out 2.

Configurable Subwoofer Crossover

The OvrC interface provides crossover controls for each configured subwoofer zone.

Available settings include:

• Butterworth or Linkwitz-Riley filter type.
• Selectable -12, -24, or -48 dB-per-octave slope.
• Adjustable crossover frequency.
• Subwoofer-level offset relative to the zone volume.

When the powered subwoofer or external subwoofer amplifier also provides a crossover control, set that control as high as practical while using the crossover in the EA-MOIP-AMP-6D-50.

Powered or Passive Subwoofer Configurations

During zone configuration, the subwoofer can be identified as powered, passive, or absent.

• Powered subwoofer: Uses the corresponding RCA Sub Out.
• Passive subwoofer: Uses one of the amplifier’s powered speaker channels.
• No subwoofer: Leaves the available channels for main speakers or another zone.

A passive subwoofer must be compatible with the amplifier’s available power and impedance requirements.

DSP Configuration Through OvrC

OvrC is used to create zones, route sources, configure playback formats, manage the amplifier, and adjust DSP settings.

Available controls include:

• Zone source selection.
• Zone volume and mute.
• Maximum-volume limits.
• Test-tone generation.
• Speaker presets.
• Speaker-distance and time-alignment settings.
• Subwoofer crossover and level.
• Bass and treble tone controls.
• Parametric room EQ.

Speaker Presets

OvrC includes presets for compatible Episode and Triad speakers.

Selecting a listed speaker applies a manufacturer-developed EQ curve for that model.

For speakers that are not included, the interface provides Generic Small and Generic Large starting presets.

Speaker presets do not replace correct impedance, power, placement, and crossover planning.

Room EQ and Tone Controls

The current Episode online configuration guide documents six bands of fully parametric Room EQ in addition to the selected speaker-preset curve.

Zone-level tone controls include a bass shelf centered at 125Hz and a treble shelf beginning at 2kHz.

EQ should be used for measured or carefully evaluated corrections rather than large arbitrary boosts that increase amplifier and speaker demand.

Speaker Distance and Time Alignment

Individual speaker-distance settings help align the arrival time of sound at the listening position.

This is particularly useful for 3.0, 4.0, 5.0, and subwoofer-assisted multichannel configurations where the speakers are not all the same distance from the listener.

Maximum-Volume Protection

Each zone can have a maximum volume setting.

This can help prevent users from accidentally raising a zone beyond the intended listening level or the practical limits of its speakers and available amplifier power.

The amplifier also provides individual channel-pair protection. A fault affecting one output pair does not necessarily stop every other configured zone.

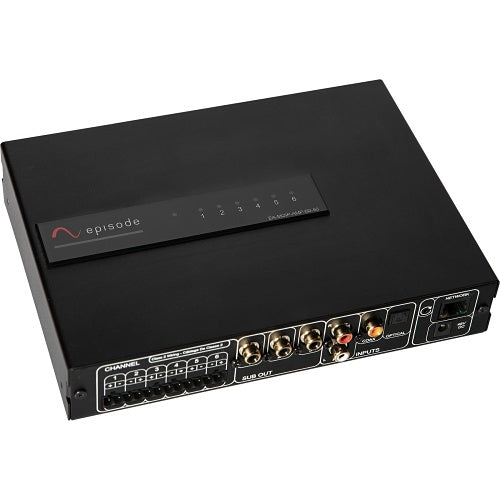

Front-Panel Status Indicators

The front-panel status LED glows blue when the amplifier is operating.

Each channel also has an indicator:

• Blue: The channel is assigned to a configured zone.
• Off: The channel is not configured for use.
• Red: The channel is in an over-temperature or over-current fault condition.

The LEDs can be disabled through OvrC when the amplifier is mounted in a visible location.

Low-Impedance Speaker Outputs

The EA-MOIP-AMP-6D-50 powers compatible low-impedance passive speakers through removable speaker-wire connectors.

Episode recommends 14- to 18-gauge stranded two-conductor speaker wire.

Observe correct positive and negative polarity at the amplifier and every speaker.

The published maximum output rating is specified into 4 ohms. Do not connect 70V or 100V speakers directly to these outputs.

No Channel Bridging

The six-channel model does not support bridged output operation.

Do not combine two channels in an attempt to create a higher-powered output. Episode documents bridging only for the EA-MOIP-AMP-12D-100.

Required MoIP Controller

A B-900-MOIP-4K-CTRL controller is required for the amplifier to function within the MoIP system.

If the amplifier is connected but does not appear in the device list, confirm that a working controller is present on the same system before resetting or replacing equipment.

Managed Network Requirements

This product should not be connected to an unconfigured consumer network and expected to operate like an ordinary streaming amplifier.

A MoIP network requires a properly configured Layer 2 or Layer 3 managed switch with features such as:

• IGMP snooping.
• IGMP querier configuration.
• Jumbo frames of at least 8,000 bytes.
• Correct router-learning settings.
• Sufficient Ethernet ports and PoE capacity.

Episode recommends configuring the network before connecting MoIP equipment to avoid flooding and instability.

Keep MoIP Devices on the Correct Switch

The amplifier should connect to the same properly configured MoIP switching environment as the controller and other MoIP devices.

The network design should account for the controller, all transmitters, receivers, amplifiers, uplinks, available bandwidth, and future expansion.

Control4 and Automation Integration

The amplifier integrates with Control4 and other supported control systems through available drivers.

Depending on the configured system, the interface can provide source selection, volume feedback, bass, midrange and treble controls, and playback-format information.

Control-system compatibility, driver version, controller software, and firmware should be confirmed during system design.

Control4 Announcement Limitation

Snap One currently notes that Control4 Audio Announcements over MoIP are not supported by this amplifier.

Do not select this model based on an expectation that it will reproduce Control4 announcement audio over the MoIP path unless Snap One publishes a later compatibility update.

Compact Mounting Options

The EA-MOIP-AMP-6D-50 is a compact 1U-high, VersaBox-compatible amplifier.

Two mounting ears and four removable feet are included, allowing placement in a suitable rack, structured-wiring enclosure, media cabinet, or supported wall-mount arrangement.

Do not stack other equipment on top of the amplifier. Maintain appropriate ventilation and do not use its chassis or mounting ears to support other components.

Technical Specifications

• Product type: Six-channel MoIP network audio and DSP amplifier.
• Model: EA-MOIP-AMP-6D-50.
• Sold as: One amplifier.
• Amplified output channels: Six.
• Maximum zones: Three.
• One-channel output with standard PoE: Up to 15.5W RMS.
• One-channel output with PoE+: Up to 30W RMS.
• One-channel output with PoE++: Up to 50W RMS.
• One-channel output with optional 48V DC supply: Up to 50W RMS.
• Published all-channels-driven output: 10W per channel at 4 ohms.
• Output type: Low-impedance passive-speaker outputs.
• Channel bridging: Not supported.
• Subwoofer outputs: Three low-level RCA outputs.
• Local analog input: One stereo RCA input.
• Local digital input: One parallel coaxial/optical combo input; use one connection at a time.
• MoIP receive streams: Up to three.
• MoIP transmit streams: Up to three.
• Supported formats: Dolby Digital, DTS Surround, LPCM, and PCM.
• Supported playback layouts: 5.1/5.0, 4.1/4.0, 3.1/3.0, 2.1/2.0, and mono.
• Input sensitivity: 500mV.
• Input impedance: 20,000 ohms.
• Frequency response: 20Hz to 20kHz, ±2 dB.
• Signal-to-noise ratio: Greater than 98 dB.
• Distortion: Less than 1% THD from 20Hz to 20kHz.
• Network connection: RJ45 Ethernet with PoE, PoE+, or PoE++ support.
• Alternate power: 48V DC through optional EE-PS-48VDC-2.5A supply.
• Required controller: B-900-MOIP-4K-CTRL.
• Configuration and management: OvrC.
• Mounting: 1U-high and VersaBox compatible; mounting ears and removable feet included.
• Weight: Approximately 3.5 lb.
• Operating range: Approximately 14°F to 122°F.
• Certification: UL Listed.
• Warranty: Two-year limited manufacturer warranty, subject to current terms.

What Is Included?

• One EA-MOIP-AMP-6D-50 amplifier.
• Two mounting ears with screws.
• Four removable feet.
• One installation-manual QR card.

The optional 48V DC supply, MoIP controller, managed switch, network cabling, source transmitters, speaker wire, powered subwoofers, and audio cables are not listed as included.

When to Choose a Different Amplifier

Choose the EA-MOIP-AMP-3D-50 when only one zone or up to three amplified channels are needed.

Choose the EA-MOIP-AMP-12D-100 when you need six zones, higher simultaneous output, more subwoofer outputs, or bridgeable channels.

Choose an Episode Response DSP amplifier when you need conventional local matrix amplification without building the system around MoIP audio transport.

Choose an Episode Dynamic amplifier when straightforward multichannel amplification is needed without MoIP decoding and transmission.

Choose a dedicated 70V amplifier for long cable runs and larger quantities of transformer-equipped commercial or landscape speakers.

Good Products to Pair With This Amplifier

• Episode Products for compatible speakers, amplifiers, and audio-system components.
• In-Wall & In-Ceiling Speakers for discreet low-impedance room audio.
• Amplifiers to compare conventional, DSP, MoIP, and distributed-audio models.
• Subwoofers for the three configurable low-level zone outputs.
• Network Switches for compatible managed switching and PoE capacity.
• Speaker Wires for properly sized low-impedance speaker connections.
• Power Management Solutions for the MoIP controller, network switches, source devices, and related rack equipment.
• Uninterruptible Power Supplies to support critical network and MoIP infrastructure during brief power interruptions.

Need Help Planning the MoIP System?

Send us the number of rooms, speaker models, desired playback formats, subwoofer requirements, MoIP controller, switch model, available PoE class, and total switch power budget. We can help confirm channel assignments, zone layouts, expected output, network requirements, and the additional components required before ordering.

Is the Episode EA-MOIP-AMP-6D-50 a standalone amplifier?

It can amplify local audio, but its primary design is as part of a Snap One MoIP system. A B-900-MOIP-4K-CTRL controller is required for MoIP operation and configuration.

Does the amplifier require a MoIP controller?

Yes. Episode specifically requires a B-900-MOIP-4K-CTRL controller for the amplifier to function within the MoIP system.

Does it stream Spotify or Apple Music by itself?

No. MoIP streaming refers to audio transported across the compatible Media over IP network. Music services require a separate compatible source or casting device.

Does it have AirPlay, Chromecast, or Bluetooth?

No AirPlay, Chromecast, Bluetooth music streaming, or built-in consumer streaming service is published for this amplifier.

Does it have Wi-Fi?

No. It uses a wired Ethernet connection.

Does it support 4K HDR video?

The wider MoIP system can distribute compatible 4K HDR video, but this amplifier has no HDMI or video connection. It receives, transmits, decodes, processes, and amplifies audio.

Does it have an HDMI input or output?

No. It provides Ethernet, stereo RCA, coaxial or optical digital audio, speaker outputs, subwoofer outputs, and power connections.

How many amplified channels does it have?

It has six amplified low-impedance speaker channels.

How many zones can it support?

It supports up to three configurable zones.

Can it run three stereo rooms?

Yes. A common configuration uses two amplifier channels per room for three independent stereo zones.

Can it run a 5.1 speaker system?

Yes. Five channels can power the main speakers, with a powered subwoofer connected to the corresponding RCA Sub Out.

Can it power a passive subwoofer in a 5.1 system?

Yes, when the passive subwoofer is compatible with the amplifier. In that configuration, the sixth amplified channel powers the subwoofer.

Which playback formats are supported?

Episode publishes support for 5.1/5.0, 4.1/4.0, 3.1/3.0, 2.1/2.0, and mono configurations.

Does it decode Dolby Digital?

Yes. Dolby Digital decoding is supported.

Does it decode DTS?

Yes. Episode publishes DTS Surround and DTS 5.1 support.

Does it support LPCM?

Yes. It supports compatible stereo and multichannel LPCM.

Does it support Dolby Atmos?

No Dolby Atmos decoding or height-channel processing is published for this model.

Does it support DTS:X?

No DTS:X decoding is published.

Does it really produce 50W through all six channels?

No. Episode publishes up to 50W RMS into 4 ohms with one channel driven when using PoE++ or the optional 48V DC supply. Snap One’s current product table separately lists 10W per channel with all six channels driven.

How much power is available with standard PoE?

The published one-channel-driven output is up to 15.5W RMS.

How much power is available with PoE+?

The published one-channel-driven output is up to 30W RMS.

How much power is available with PoE++?

The published one-channel-driven output is up to 50W RMS.

How much power is available with the 48V DC supply?

The published one-channel-driven output is up to 50W RMS.

Is the PoE class important?

Yes. The PoE class determines the available one-channel amplifier output, and the switch must also have enough total PoE budget for every connected device.

Does a PoE switch come with the amplifier?

No. A compatible switch or injector is sold separately.

Does it include an AC power supply?

No. The six-channel model is powered through PoE or the separately sold EE-PS-48VDC-2.5A supply.

Which external power supply is compatible?

Episode identifies the EE-PS-48VDC-2.5A as the compatible optional supply.

Can it be powered through an ordinary non-PoE network port?

Not without the optional 48V DC supply. A non-PoE Ethernet connection supplies network access but not operating power.

Does it work with standard passive speakers?

Yes. It is designed for compatible low-impedance passive speakers.

Does it support 4-ohm speakers?

The official power rating is specified at 4 ohms. Confirm the complete speaker load and channel configuration before connecting equipment.

Can it power 70V speakers?

No. It is not a 70V amplifier.

Can it power 100V speakers?

No. It is not designed for 100V distributed speakers.

Can the output channels be bridged?

No. Episode documents channel bridging only on the EA-MOIP-AMP-12D-100.

How many subwoofer outputs does it have?

It has three low-level RCA Sub Outs, one for each possible zone.

Can the Sub Outs power passive subwoofers?

No. They are low-level RCA outputs. Connect them to powered subwoofers or external subwoofer amplifiers.

Does every zone have its own subwoofer output?

Yes. Each possible zone has a corresponding RCA Sub Out.

Does the Sub Out carry only a native movie LFE channel?

No. For a zone configured with a subwoofer, Episode states that the zone’s source is summed and sent to the subwoofer output even when the source has no native LFE channel.

Can I adjust each subwoofer crossover?

Yes. OvrC provides adjustable crossover frequency, filter type, slope, and subwoofer-level offset.

Which crossover types are available?

Butterworth and Linkwitz-Riley filters are available.

Which crossover slopes are available?

The published options are -12, -24, and -48 dB per octave.

What local analog input is included?

It has one stereo RCA line-level input.

What local digital input is included?

It has one combo digital input supporting coaxial S/PDIF or optical Toslink.

Can the optical and coaxial inputs be used simultaneously?

No. They operate in parallel, so only one can be used at a time.

Can a local source be played in another MoIP zone?

Yes. The amplifier can transmit its local analog or digital input onto the MoIP network.

How many MoIP streams can it receive?

Episode lists up to three MoIP receive streams.

How many MoIP streams can it transmit?

Episode lists up to three MoIP transmit streams.

Is DSP built in?

Yes. DSP configuration includes zone volume, maximum volume, speaker presets, distance, crossovers, tone controls, and parametric Room EQ.

How many parametric EQ bands does it have?

The current online configuration guide documents six fully parametric Room EQ bands. An older sales data sheet lists 10-band parametric EQ, so the current OvrC interface and firmware should be checked before publishing a different band count.

Does it include speaker presets?

Yes. OvrC includes presets for supported Episode and Triad speakers, plus Generic Small and Generic Large options.

Can a maximum volume be set for each zone?

Yes. Each zone can have an independent maximum-volume setting.

Can the speaker distances be configured?

Yes. Speaker-distance settings are available for time alignment.

Can the front LEDs be disabled?

Yes. The LEDs can be turned off through OvrC when the amplifier is installed in a visible location.

What does a red channel LED mean?

Red indicates an over-temperature or over-current fault condition on that channel.

Does a fault in one zone stop every zone?

Not necessarily. Each channel pair has individual protection so unaffected zones can continue operating.

What speaker-wire gauge should be used?

Episode recommends 14- to 18-gauge stranded two-conductor speaker wire.

Does the amplifier require a managed network switch?

Yes. MoIP operation requires a properly configured managed network with the necessary multicast and IGMP features.

Can it operate through an unmanaged switch?

No. Episode warns against connecting MoIP devices to an unmanaged switch.

What managed-switch features are required?

Episode lists Layer 2 or Layer 3 management, IGMP snooping, IGMP querier configuration, router-learning settings, and jumbo frames of 8,000 bytes or larger.

Should the network be configured before connecting the amplifier?

Yes. Episode warns that connecting MoIP devices before network configuration can cause flooding and instability.

Does it integrate with Control4?

Yes. It supports Control4 integration through the appropriate MoIP system drivers and configuration.

Does it support Control4 Audio Announcements over MoIP?

Snap One currently states that Control4 Audio Announcements over MoIP are not supported.

Does it support OvrC?

Yes. OvrC is used for configuration, management, monitoring, and troubleshooting.

Can a regular customer configure it without OvrC?

This product is designed around OvrC and the MoIP system-management process. Buyers should confirm who will configure and support the system before ordering.

Is it rack-mountable?

It is 1U high and includes mounting ears. It is also compatible with a Strong VersaBox installation.

Are mounting ears included?

Yes. Two mounting ears and the required screws are listed in the box contents.

Are removable feet included?

Yes. Four removable feet are included.

Can other equipment be stacked on it?

No. Episode advises against stacking components on top of the amplifier.

How much does it weigh?

The published weight is approximately 3.5 lb.

What is the operating-temperature range?

The published operating range is approximately 14°F to 122°F.

Is it UL Listed?

Yes. Episode lists UL certification.

What is the warranty?

Snap One publishes a two-year limited warranty, subject to the applicable manufacturer terms.

What should I check before ordering?

Confirm the MoIP controller, managed switch configuration, available PoE class and total power budget, number of zones, speaker impedance, expected simultaneous output, playback formats, subwoofer type, source devices, control-system compatibility, and who will configure the system through OvrC.
