Episode EA-DYN-16D-100 16-Channel Amplifier 100W Per Channel

Power Up to Eight Stereo Speaker Zones

The Episode EA-DYN-16D-100 is a 16-channel Class D amplifier for multi-room home and business audio systems. It powers up to eight stereo zones using local analog inputs, two shared analog inputs, or one shared optical digital source.

Power Output

• 16 × 100W RMS into 4 ohms, all channels driven
• 16 × 50W RMS into 8 ohms, all channels driven
• Up to 8 × 200W RMS bridged mono into 8 ohms
• 20 Hz to 20 kHz frequency response
• Class D amplification

Bridging combines one stereo channel pair into one higher-powered mono output. Maintain an 8-ohm minimum load when using bridge mode.

Source and Zone Flexibility

• Local stereo analog input for each zone
• Two shared stereo analog inputs
• One shared optical S/PDIF input for a compatible 2-channel digital source

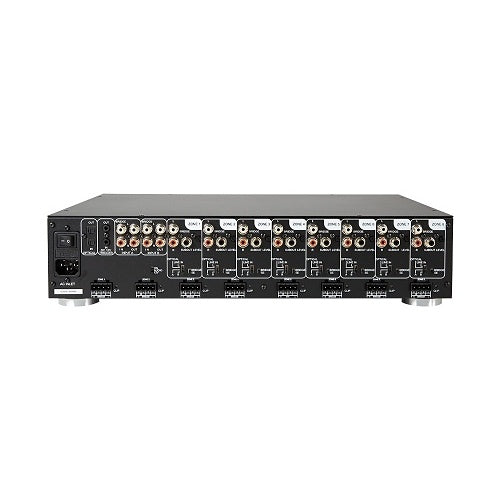

• Rear-panel input selector for each zone
• Individual gain adjustment for each channel pair

The optical input is shared across the amplifier. It is not a separate optical input for every zone. Source selection is performed using the rear-panel switches, not through an app or network interface.

Subwoofer and Expansion Connections

Each zone includes a mono line-level subwoofer output with a fixed 200 Hz low-pass filter. Connect it to a powered subwoofer or separate subwoofer amplifier. It cannot directly power a passive subwoofer.

Two analog loop outputs and one optical loop output allow shared sources to feed additional amplifiers.

Power and Control

• Audio-sensing automatic power mode
• Always-on mode
• 12V trigger input and output
• Individual zone clip indicators and protection

This amplifier does not include Ethernet, IP control, OvrC, DSP, Bluetooth, Wi-Fi, app control, or built-in music streaming. A separate source, controller, preamplifier, matrix, or streamer is required for music selection and everyday volume control.

Speaker Compatibility

Use conventional passive 4-ohm or 8-ohm speakers. This model does not provide 70V or 100V speaker outputs. Confirm speaker impedance, quantity, wiring method, and power handling before connecting multiple speakers to one channel.

Included and Sold Separately

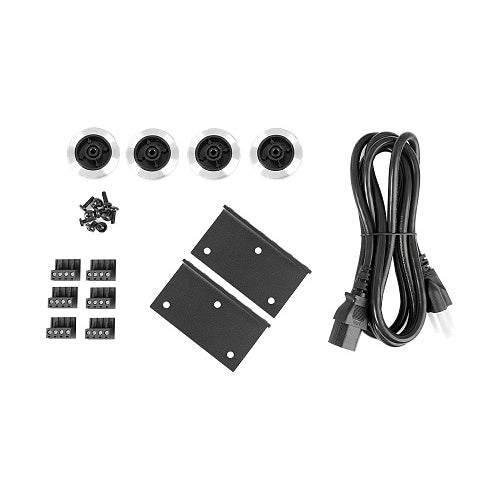

Included: One amplifier, detachable IEC power cable, rack ears, removable feet, and installation manual.

Sold separately: Speakers, speaker wire, audio cables, streaming sources, controllers, volume controls, and powered subwoofers.

Dimensions and Installation

• 17.2 × 4.05 × 12.2 inches with feet
• 17.2 × 3.55 × 12.2 inches without feet
• Approximately 14 lb
• 2U rack space
• Black finish
• Two-year limited manufacturer warranty

Install indoors in a dry, ventilated location. The amplifier is not weather resistant and should not be placed outdoors, near sprinklers, or in damp areas.

Complete the System

• Episode audio products
• In-wall and in-ceiling speakers
• Outdoor speakers
• Subwoofers
• Power management solutions

Need Help Planning Your Zones?

Send Bear Security Shop your speaker models, zone count, impedance, audio sources, and control method. We will help confirm channel assignments, bridged zones, and required system components.

How many rooms can the EA-DYN-16D-100 power?

It can power up to eight stereo zones using its 16 amplifier channels. Bridging a zone converts that stereo pair into one higher-powered mono output.

How much power does each channel provide?

It provides 100W RMS per channel into 4 ohms or 50W RMS per channel into 8 ohms, with all channels driven. A bridged channel pair provides 200W RMS into 8 ohms.

Does it control different music in every room?

Each zone can use a local analog input or one of three shared sources. A separate controller, matrix, streamer, or preamplifier is required for convenient source selection and independent volume control.

Does it have optical audio?

Yes. It has one shared optical S/PDIF input for a compatible 2-channel digital source. It does not provide a separate optical input for every zone.

Does it support Bluetooth, Wi-Fi, DSP, or app control?

No. It does not include wireless streaming, Ethernet, IP control, OvrC, or DSP. These functions require separate source or control equipment.

Can it power 70V or 100V speakers?

No. It is designed for conventional passive 4-ohm and 8-ohm speakers.

Can I connect subwoofers?

Yes. Each zone has a mono line-level subwoofer output with a fixed 200 Hz low-pass filter. Use a powered subwoofer or separate subwoofer amplifier.

Can the amplifier be installed outdoors?

No. Keep it indoors in a dry, ventilated location. It may power compatible outdoor speakers when the amplifier remains protected indoors.

What should I confirm before ordering?

Confirm your zone count, speaker impedance, speaker power handling, source connections, bridged-zone requirements, volume-control method, and rack space.
