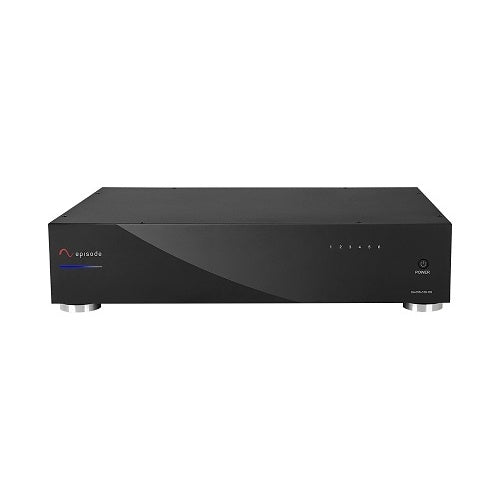

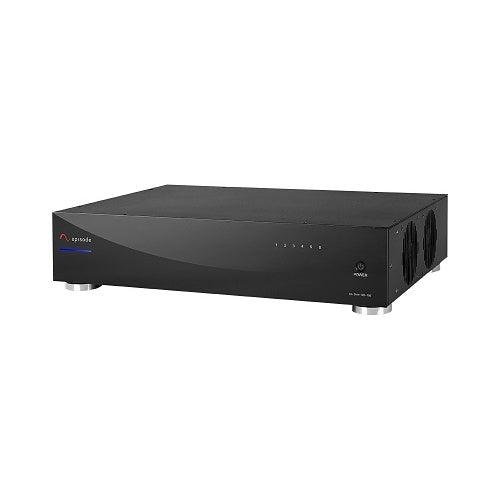

Episode EA-DYN-12D-100 12-Channel Class-D 100W Audio Amplifier

Power Up to Six Stereo Audio Zones from One Amplifier

The Episode EA-DYN-12D-100 is a 12-channel Class D amplifier designed for multi-room audio systems using conventional passive speakers. It can power up to six stereo zones, with local source inputs for each zone plus shared analog and optical sources.

Power Output

• 12 × 100W RMS at 4 ohms, all channels driven
• 12 × 50W RMS at 8 ohms, all channels driven
• Up to 6 × 200W RMS bridged at 8 ohms
• 20 Hz to 20 kHz frequency response
• Class D amplification

Bridge mode combines two adjacent amplifier channels into one higher-powered mono output and requires an 8-ohm minimum speaker load.

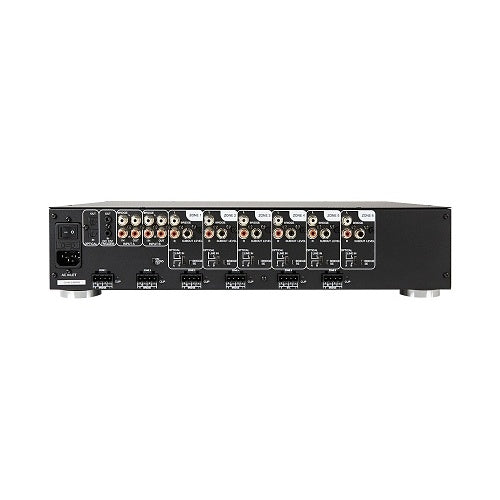

Flexible Source Connections

• Local stereo RCA input for each of the six zones
• Two shared stereo RCA global inputs
• One shared optical S/PDIF input for a compatible 2-channel digital source
• Input selector for each zone
• Individual gain adjustment for each zone

Each zone can select its local analog source, Global A, Global B, or the shared optical source. Source selection is performed at the amplifier and is not an app-controlled audio matrix.

Subwoofer and Expansion Outputs

Each zone includes a mono line-level subwoofer output with a fixed 200 Hz low-pass crossover. Connect it to a powered subwoofer or separate subwoofer amplifier. It cannot directly power a passive subwoofer.

Analog and optical loop outputs allow shared sources to be passed to additional compatible equipment.

Power and Control Options

• Audio-sensing automatic power mode
• Always-on mode
• 4.5-12V trigger input
• 12V trigger output for additional equipment
• Per-zone gain and clipping indicators

This model does not include DSP, Ethernet, IP control, OvrC, Bluetooth, Wi-Fi, app control, or built-in streaming.

Speaker Compatibility

Use conventional passive 4-ohm or 8-ohm speakers. This amplifier does not provide 70V or 100V speaker outputs.

Use 14-18 AWG stranded speaker wire and confirm speaker impedance, quantity, wiring, and power handling before connecting multiple speakers to a channel.

Included and Sold Separately

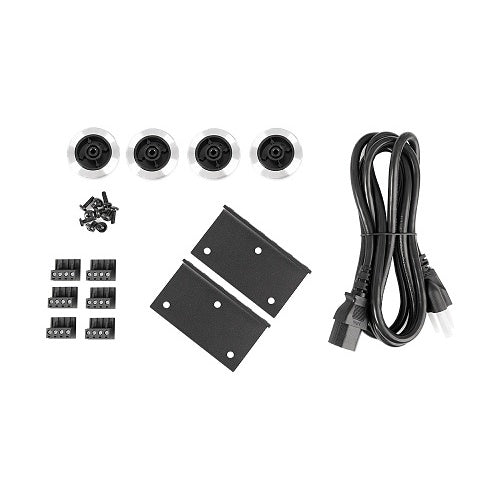

Included: One EA-DYN-12D-100 amplifier, detachable IEC power cable, rack-mount ears, four removable feet, and installation manual.

Sold separately: Speakers, speaker wire, RCA and optical cables, streaming sources, controllers, volume controls, and powered subwoofers.

Dimensions and Installation

• Current manual dimensions: approximately 17.17 × 3.45 × 11.81 inches
• Current manual weight: approximately 10.8 lb
• 2U rack installation
• Indoor use only
• 2-year manufacturer limited warranty

Install the amplifier in a dry, well-ventilated location and keep its side ventilation openings clear.

Complete the System

• Episode audio products
• In-wall and in-ceiling speakers
• Outdoor speakers
• Subwoofers
• Speaker wire
• Power management solutions

Need Help Planning Your Zones?

Send Bear Security Shop your speaker models, number of rooms, impedance, audio sources, and any zones that need extra power. We can help confirm the channel layout and amplifier compatibility.

How many zones can the EA-DYN-12D-100 power?

It provides 12 amplifier channels, typically used for up to six stereo zones.

How much power does each channel provide?

It delivers 100W RMS per channel at 4 ohms or 50W RMS per channel at 8 ohms with all channels driven.

Can channels be bridged for more power?

Yes. Each adjacent channel pair can be bridged to provide 200W RMS into an 8-ohm mono load.

Can different zones use different sources?

Yes. Each zone can use its own local analog input or select one of two shared analog sources or the shared optical source.

Does it have an optical input?

Yes. It has one shared optical S/PDIF input for a compatible 2-channel digital source. It is shared across the zones rather than providing a separate optical input for each room.

Does it have Bluetooth, Wi-Fi, DSP, or app control?

No. This model does not include wireless streaming, Ethernet, IP control, OvrC, or DSP. Separate source and control equipment is required when those features are needed.

Can I add subwoofers?

Yes. Each zone has a mono line-level subwoofer output crossed over at 200 Hz. Use a powered subwoofer or separate subwoofer amplifier.

Does it support 70V or 100V speakers?

No. It is designed for conventional passive 4-ohm and 8-ohm speaker systems.

Can it power outdoor speakers?

Yes, when using compatible low-impedance outdoor speakers. The amplifier itself must remain indoors in a dry, ventilated location.

What should I confirm before ordering?

Confirm the number of stereo zones, speaker impedance and power handling, audio sources, bridged-zone requirements, speaker wiring, and how volume will be controlled in each room.
