Araknis AN-520-RT Dual-WAN Multi-Gig VPN Router

Build a Faster Network with Dual-WAN Redundancy

The Araknis AN-520-RT is a dual-WAN multi-gigabit VPN router designed for homes and businesses that need fast routing, ISP redundancy, secure site-to-site connectivity, VLAN support, and remote network management.

This is a wired router and does not include built-in Wi-Fi. Add compatible wireless access points when Wi-Fi coverage is required.

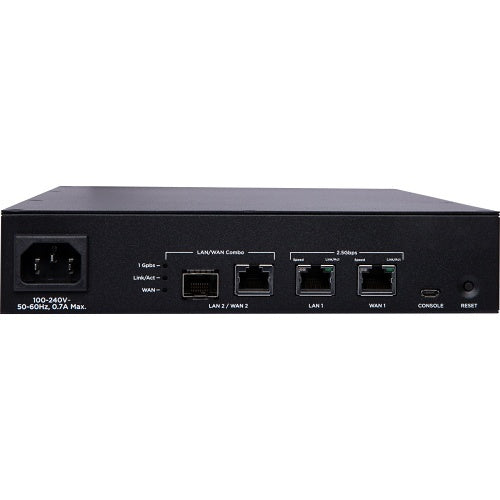

Multi-Gigabit Network Connections

• 1 × 2.5G BASE-T WAN Ethernet port
• 1 × 2.5G BASE-T LAN Ethernet port
• 1 × configurable 1G LAN/WAN combo interface
• Combo interface supports RJ45 or SFP connectivity
• Multi-gig WAN-to-LAN support up to 2.5Gbps

The RJ45/SFP combo interface is one logical port with two connection options. The RJ45 and SFP connections are not separate simultaneous network ports.

Dual-WAN Failover and Load Balancing

• Dual-WAN link failover
• Dual-WAN load balancing
• Network Service Detection
• Metered connection support
• Route binding

You can use the router with one internet connection or configure a second WAN connection for redundancy or session-based load balancing.

Routing and Firewall Performance

• Stateful firewall throughput: up to 4.4Gbps
• Stateful Packet Inspection
• Denial-of-Service prevention
• SYN flood protection
• WAN request blocking
• Port forwarding and port triggering
• MAC/IP access controls and filtering

Published throughput values are manufacturer maximums under test conditions. Real-world performance varies with traffic type, security features, VPN use, ISP service, and network configuration.

VPN Performance

• Gateway-to-Gateway IPSec VPN
• IPSec throughput: up to 2550Mbps
• Up to 50 IPSec tunnels
• OpenVPN throughput: up to 650Mbps
• Up to 20 OpenVPN tunnels
• PPTP throughput: up to 300Mbps
• Up to 20 PPTP tunnels

IPSec is the strongest fit when high-performance site-to-site connectivity is required between supported networks. VPN throughput is not the same as the router's general firewall throughput.

VLAN and Advanced Routing

• IEEE 802.1Q VLAN support
• Inter-VLAN routing
• Static routing
• QoS
• DHCP server functions and reservations
• DDNS and local DNS
• 1:1 NAT
• Port Address Translation
• DMZ host
• IPv6 support
• IP bandwidth control

Embedded OvrC Pro

OvrC and OvrC Pro are built into the AN-520-RT for compatible remote configuration, monitoring, troubleshooting, notifications, and visibility into IP devices across the network.

The router can also be managed through its local web interface.

Device Capacity

• Maximum DHCP clients: 2048
• SNMP v1, v2c, and v3 support
• HTTP and HTTPS management
• System logging and configuration backup
• Ping, DNS lookup, and traceroute diagnostic tools

No Built-In Wi-Fi or PoE Switching

The AN-520-RT is a dedicated wired router. It does not provide Wi-Fi and does not provide a bank of PoE camera or access-point ports.

For larger networks, pair it with a compatible network switch and Araknis access points based on the number of wired devices, required PoE budget, and Wi-Fi coverage area.

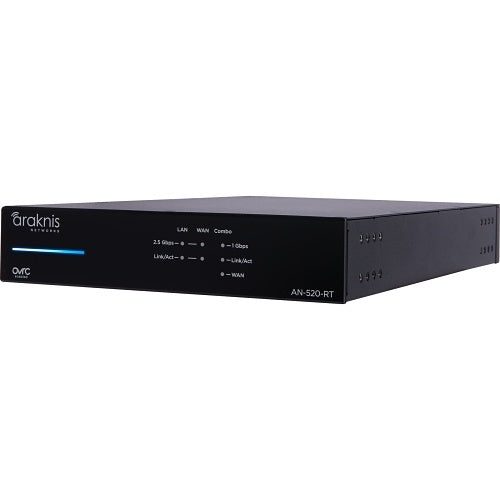

Fanless 1U Design

• Fanless operation
• 1U rack height
• Rack, desktop, or wall mounting
• Rack ears supported
• Internal power supply
• Dimensions: 8.27 × 1.73 × 12.48 inches
• Weight: approximately 3.75 lb
• Operating temperature: 32°F to 104°F
• 2-year limited manufacturer warranty

When to Choose Another Router

Choose a simpler router if you only need one internet connection and basic Gigabit routing. Choose the AN-520-RT when you specifically need dual-WAN redundancy, multi-gig WAN/LAN connectivity, high-performance IPSec VPN, VLAN routing, or OvrC Pro network management.

Complete the Network

• Routers
• Araknis Networks
• Network switches
• Wireless access points

Need Help Planning Your Network?

Send Bear Security Shop your internet speeds, number of ISP connections, wired device count, Wi-Fi requirements, and VPN needs. We can help confirm whether the AN-520-RT and the right switches and access points fit your network.

Does the AN-520-RT have built-in Wi-Fi?

No. It is a wired router. Wireless access points are required if you need Wi-Fi coverage.

How many WAN connections does it support?

It supports dual-WAN operation using the dedicated 2.5GbE WAN interface and the configurable 1GbE LAN/WAN combo interface.

Does it support automatic internet failover?

Yes. It supports dual-WAN link failover so a secondary connection can take over when the primary connection is unavailable under the configured conditions.

Does it support load balancing?

Yes. Dual-WAN session-based load balancing is supported.

What multi-gig ports does it have?

It has one 2.5GbE WAN port and one 2.5GbE LAN port, plus a configurable 1GbE RJ45/SFP combo interface.

Can I use the RJ45 and SFP combo connections at the same time?

No. They are two physical connection options for one combo interface, not two independent simultaneous ports.

What is the maximum firewall throughput?

Araknis specifies up to 4.4Gbps stateful firewall throughput.

How fast is IPSec VPN?

Araknis specifies IPSec throughput up to 2550Mbps with support for up to 50 tunnels.

How fast is OpenVPN?

Araknis specifies OpenVPN throughput up to 650Mbps with support for up to 20 tunnels.

Does it support VLANs?

Yes. It supports IEEE 802.1Q VLANs and inter-VLAN routing.

What does OvrC Pro provide?

Embedded OvrC Pro provides compatible remote monitoring, management, troubleshooting, notifications, and visibility into other IP devices on the network.

Does this router have PoE ports?

No. Use a separate PoE switch when powering access points, security cameras, or other PoE devices.

How many devices can it support?

Araknis specifies a maximum of 2048 DHCP clients. Practical network capacity depends on traffic levels, connected devices, and system design.

Can it be rack mounted?

Yes. It uses a 1U design and supports rack, desktop, and wall installation.
