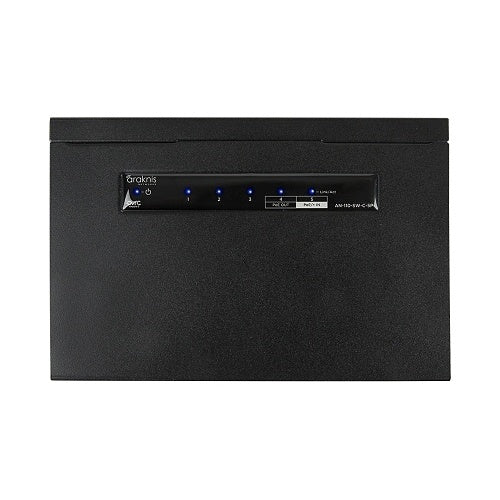

Araknis Networks AN-110-SW-C-5P Compact PoE Gigabit 5-Port Switch

Add Gigabit Ethernet Where Space Is Limited

The Araknis AN-110-SW-C-5P is a compact 5-port Gigabit Ethernet switch designed for behind-TV locations, structured wiring cans, smaller AV setups, offices, and other spaces where a full-size switch is difficult to place.

Part of the Araknis Networks family, it combines five Gigabit Ethernet ports, PoE-powered operation, one downstream PoE output, silent fanless cooling, and basic OvrC cloud visibility.

5 Gigabit Ethernet Ports

• 5 × RJ45 10/100/1000Mbps Ethernet ports
• 10Gbps switching capacity
• 7.2Mpps forwarding rate
• 2K MAC address table
• 128KB packet buffer
• 9K jumbo frame support
• Store-and-forward switching
• IEEE 802.3az Energy Efficient Ethernet

The switch is a practical local expansion point when a router or main network switch is located elsewhere and several nearby wired devices need Ethernet connectivity.

PoE+ Powered Without a Local Adapter

Port 5 serves as the PoE input. When connected to an IEEE 802.3at PoE+ source, the switch can receive both network data and power through the same Ethernet cable.

• PoE input port: Port 5
• PoE+ input: IEEE 802.3at, up to 30W
• Standard PoE 802.3af input is also supported
• Optional 48V DC power supply: AN-ACC-PS-48V1A

The power supply is not included. The switch can be powered from a compatible PoE/PoE+ source or the optional AN-ACC-PS-48V1A DC power supply.

One 15.4W PoE Pass-Through Port

Port 4 can provide IEEE 802.3af PoE output up to 15.4W when sufficient input power is available. This can simplify connection of one nearby compatible device such as an wireless access point or low-power IP device.

• PoE output port: Port 4
• PoE output standard: IEEE 802.3af
• Maximum PoE output: 15.4W

When the switch receives only standard 802.3af PoE input, the downstream port operates as Ethernet only and does not provide PoE output. Use 802.3at PoE+ input or the optional DC supply when PoE pass-through is required.

Important PoE Distance Consideration

Araknis states that PoE pass-through distance is limited when the switch itself is powered by PoE+. The optional DC power supply is the preferred power method when a full-length downstream PoE cable run is required.

Always confirm both the downstream device's power requirement and Ethernet cable distance before relying on the PoE pass-through port.

Unmanaged+ with OvrC Visibility

The AN-110-SW-C-5P is an Unmanaged+ switch. It provides plug-and-play Ethernet switching while adding basic OvrC cloud visibility for compatible remote monitoring and troubleshooting.

• OvrC enabled
• Remote firmware updates through OvrC
• Real-time notifications
• Network-device visibility
• No complex switch configuration required for basic operation

This should not be confused with a fully managed Layer 2 or Layer 3 switch. If your network requires advanced VLAN configuration, managed PoE controls, or more ports, compare other network switches.

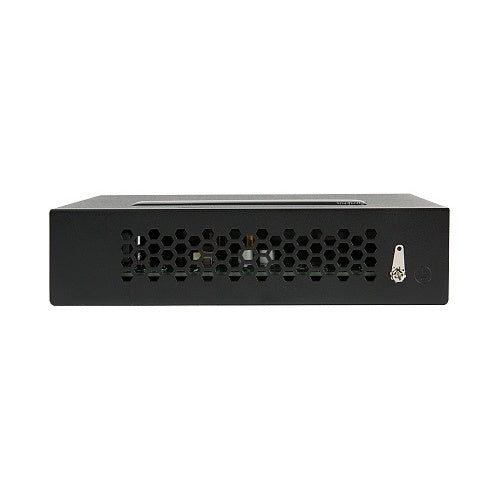

Silent Fanless Operation

The metal enclosure uses fanless cooling, making the switch suitable for living spaces, offices, meeting rooms, media areas, and other locations where fan noise would be distracting.

Designed for Tight Spaces

• Dimensions: 6.21 × 1.50 × 4.13 inches
• Weight: approximately 1.2 lb
• Metal housing
• Operating temperature: 32°F to 122°F
• Shelf mounting

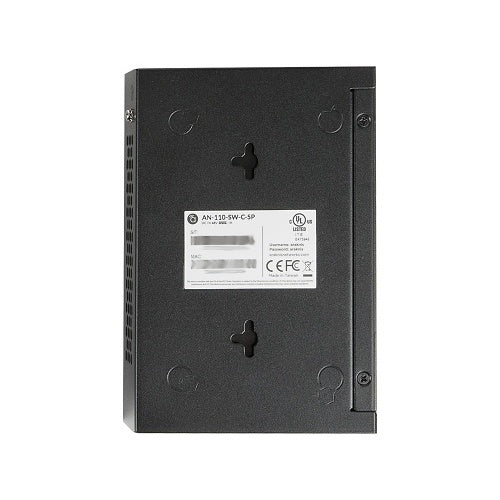

• Wall mounting

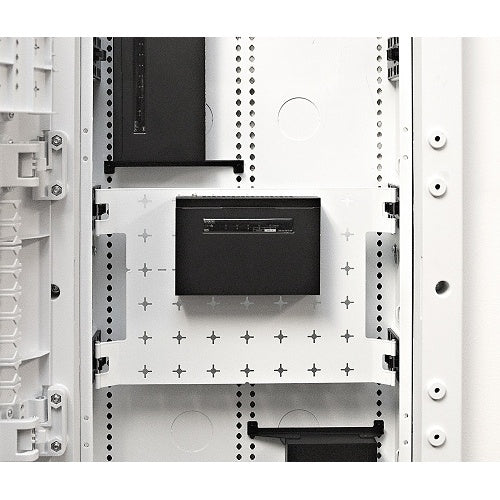

• Structured wiring can mounting
• Strong VersaBox shelf mounting

Use appropriate CAT5e or CAT6 Ethernet cable for the network and PoE connections.

Power Consumption

• Power on: approximately 3.03W
• Full load without PoE output: approximately 4.7W
• Maximum with PoE output: approximately 23.2W

What's Included

• Araknis AN-110-SW-C-5P switch
• Quick Start Guide
• 4 rubber feet

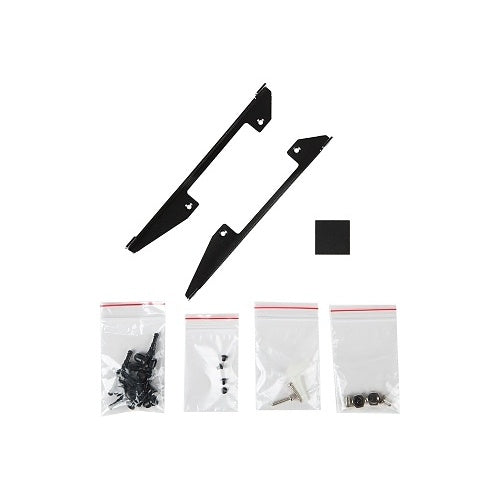

• Structured wiring can mounting kit
• VersaBox shelf mounting kit
• Wall mounting kit
• Spare mounting push pins

The AN-ACC-PS-48V1A DC power supply is sold separately.

Complete the Network

• Network switches
• Wireless access points
• CAT5e and CAT6 cables

Need Help Confirming Compatibility?

Send Bear Security Shop your upstream switch or PoE injector model, downstream PoE device, and cable-run distances. We can help confirm whether the AN-110-SW-C-5P has the correct input power and PoE output for your setup.

How many Ethernet ports does the AN-110-SW-C-5P have?

It has five Gigabit Ethernet ports supporting 10/100/1000Mbps connections.

Can the switch itself be powered by PoE?

Yes. Port 5 can receive power from a compatible PoE or PoE+ source. IEEE 802.3at PoE+ is recommended when downstream PoE pass-through is required.

Which port provides PoE output?

Port 4 is the PoE output port and can provide IEEE 802.3af power up to 15.4W when the switch receives sufficient input power.

Will PoE pass-through work with standard 802.3af input?

No. When the switch is powered only by standard 802.3af PoE, the downstream port provides network data but not PoE output. Use 802.3at PoE+ or the optional DC power supply for PoE pass-through.

Can it power a PoE+ device?

The downstream output is IEEE 802.3af with a maximum output of 15.4W. A device requiring more than the available 802.3af power budget should not be powered from this port.

Does the switch include a power supply?

No. The optional Araknis AN-ACC-PS-48V1A 48V DC power supply is sold separately.

Is this a managed switch?

It is an Araknis Unmanaged+ switch. Basic Ethernet switching is plug-and-play, while OvrC provides compatible cloud visibility and support functions. It is not a full Layer 2 or Layer 3 managed switch.

Does it support OvrC?

Yes. The switch is OvrC enabled for compatible remote visibility, firmware updates, notifications, and troubleshooting.

Is the switch fanless?

Yes. It uses passive fanless cooling for silent operation.

What is the switching capacity?

Araknis specifies a 10Gbps switching capacity and 7.2Mpps forwarding rate for the 5-port model.

Can it be installed behind a TV?

Yes. Its compact fanless design is specifically suited to locations such as behind TVs, structured wiring cans, shelves, and VersaBox installations.

Can it be used outdoors?

No. Araknis specifies this switch for indoor use.
