Araknis Networks AN-110-RT-2L1W-WIFI Pro Router Single-WAN VPN

Gigabit Routing and Wi-Fi for Smaller Networks

The Araknis AN-110-RT-2L1W-WIFI is a compact single-WAN Gigabit router with integrated dual-band Wi-Fi 5, VPN support, VLAN routing, firewall features, and embedded OvrC Pro remote management.

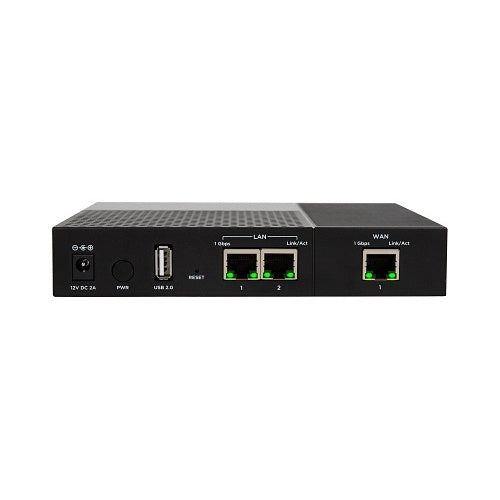

Gigabit Wired Connectivity

• 1 × Gigabit 10/100/1000Mbps WAN port
• 2 × Gigabit 10/100/1000Mbps LAN ports
• LAN-to-LAN throughput: up to 1Gbps
• WAN-to-LAN unidirectional throughput: up to 1Gbps
• 1 × USB 2.0 port

This is a single-WAN router. If you need dual-WAN failover, multi-gig Ethernet, or additional LAN ports, choose a newer or higher-series router.

Dual-Band Wi-Fi 5

• 802.11a/b/g/n/ac Wave 2
• 2×2:2 MU-MIMO
• 2.4GHz PHY rate: up to 300Mbps
• 5GHz PHY rate: up to 867Mbps
• 20/40MHz channels on 2.4GHz
• 20/40/80MHz channels on 5GHz
• Embedded omnidirectional antennas
• Up to 8 SSIDs per radio
• Guest network support

The listed Wi-Fi speeds are theoretical PHY rates, not guaranteed internet throughput. This is a Wi-Fi 5 router and does not support Wi-Fi 6, Wi-Fi 6E, or Wi-Fi 7.

Important Roaming Limitation

Araknis specifically states that Fast Roaming is not supported on the AN-110-RT-2L1W-WIFI. It is best treated as a standalone wireless-router solution rather than the foundation of a modern multi-access-point roaming system.

VPN and Remote Access

• OpenVPN support
• PPTP VPN server support
• PPPoE support
• DDNS support

Gigabit Ethernet support does not mean encrypted VPN traffic is guaranteed to operate at 1Gbps. VPN performance depends on protocol, configuration, client hardware, and traffic conditions.

Embedded OvrC Pro

OvrC Pro is built into the router for compatible remote network monitoring, device management, notifications, and troubleshooting.

Araknis notes that OvrC-based speed testing from this router can report around 300Mbps even when the router and internet service support higher speeds. This limitation applies to the embedded speed-test function, not necessarily the router's WAN throughput.

VLAN and Routing Features

• IEEE 802.1Q VLAN support
• Inter-VLAN routing
• Static routing
• DHCP server, client, and relay
• DNS relay
• 1:1 NAT
• Port Address Translation
• Port triggering
• DMZ host
• IPv6 support

Firewall and Network Security

• Stateful firewall
• Stateful Packet Inspection
• Denial-of-Service prevention
• SYN flood protection
• IP spoofing protection
• Port forwarding
• URL and keyword content filtering
• WPA2-PSK security
• WPA-Enterprise support

WPA3 is not listed for this model. If WPA3 support is important, choose a newer Araknis router/access-point platform.

Device Capacity

Araknis specifies a maximum of 256 DHCP clients. Actual practical performance depends on traffic levels, wireless activity, connected-device types, and application requirements.

Power and Physical Specifications

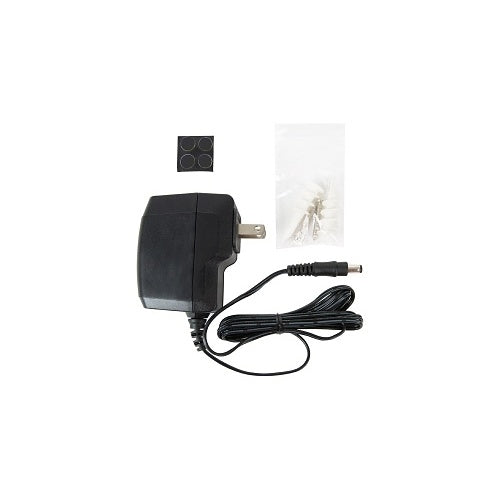

• External power supply: 12V DC, 2A
• Typical device consumption: approximately 8.36W
• Maximum power consumption: approximately 15.82W
• Dimensions: 6.75 × 1.25 × 6.75 inches
• Operating temperature: 32°F to 104°F
• 2-year limited manufacturer warranty

When to Choose Another Router

Choose a newer model if you need Wi-Fi 6 or newer, WPA3, Fast Roaming, dual-WAN failover, multi-gig Ethernet, or higher wireless capacity. The AN-110-RT-2L1W-WIFI is best suited to smaller networks where Gigabit Ethernet, Wi-Fi 5, VPN access, and OvrC management meet the requirements.

Complete the Network

• Routers
• Araknis Networks
• Network switches
• Wireless access points

Need Help Choosing the Right Router?

Send Bear Security Shop your internet speed, number of devices, Wi-Fi coverage requirements, and existing network equipment. We can help determine whether the AN-110-RT-2L1W-WIFI or a newer Araknis router is the better fit.

Does the AN-110-RT-2L1W-WIFI have built-in Wi-Fi?

Yes. It includes dual-band 2×2 Wireless-AC Wave 2 Wi-Fi with up to 300Mbps PHY rate on 2.4GHz and 867Mbps on 5GHz.

Is this a Wi-Fi 6 router?

No. It is a Wi-Fi 5 / 802.11ac Wave 2 router.

How many Ethernet ports does it have?

It has one Gigabit WAN port and two Gigabit LAN ports.

Does it support Gigabit internet service?

Araknis specifies up to 1Gbps unidirectional WAN-to-LAN throughput. Actual internet performance depends on your ISP, network configuration, and connected devices.

Does it support OpenVPN?

Yes. Araknis lists OpenVPN and PPTP VPN support.

Does Gigabit mean VPN traffic runs at 1Gbps?

No. Gigabit refers to the Ethernet interfaces and supported routing throughput. Encrypted VPN performance depends on the VPN protocol, configuration, and connected devices.

What does OvrC Pro provide?

OvrC Pro provides compatible cloud-based remote monitoring, management, notifications, and network troubleshooting.

Does it support VLANs?

Yes. It supports IEEE 802.1Q VLANs and inter-VLAN routing.

Does it support WPA3?

No WPA3 support is listed by Araknis for this model. It supports WPA2-PSK and WPA-Enterprise.

Does it support Fast Roaming?

No. Araknis explicitly states that Fast Roaming is not supported and recommends this model primarily as a standalone wireless-router solution.

How many Wi-Fi networks can it broadcast?

It supports up to 8 SSIDs per radio.

How many devices can it support?

Araknis specifies a maximum of 256 DHCP clients. Actual usable capacity depends on traffic and network demands.

Does it have dual WAN?

No. This model has one Gigabit WAN port.

Does it support PoE?

No. The router is powered by its included 12V DC power supply. Its Ethernet ports do not provide PoE.
